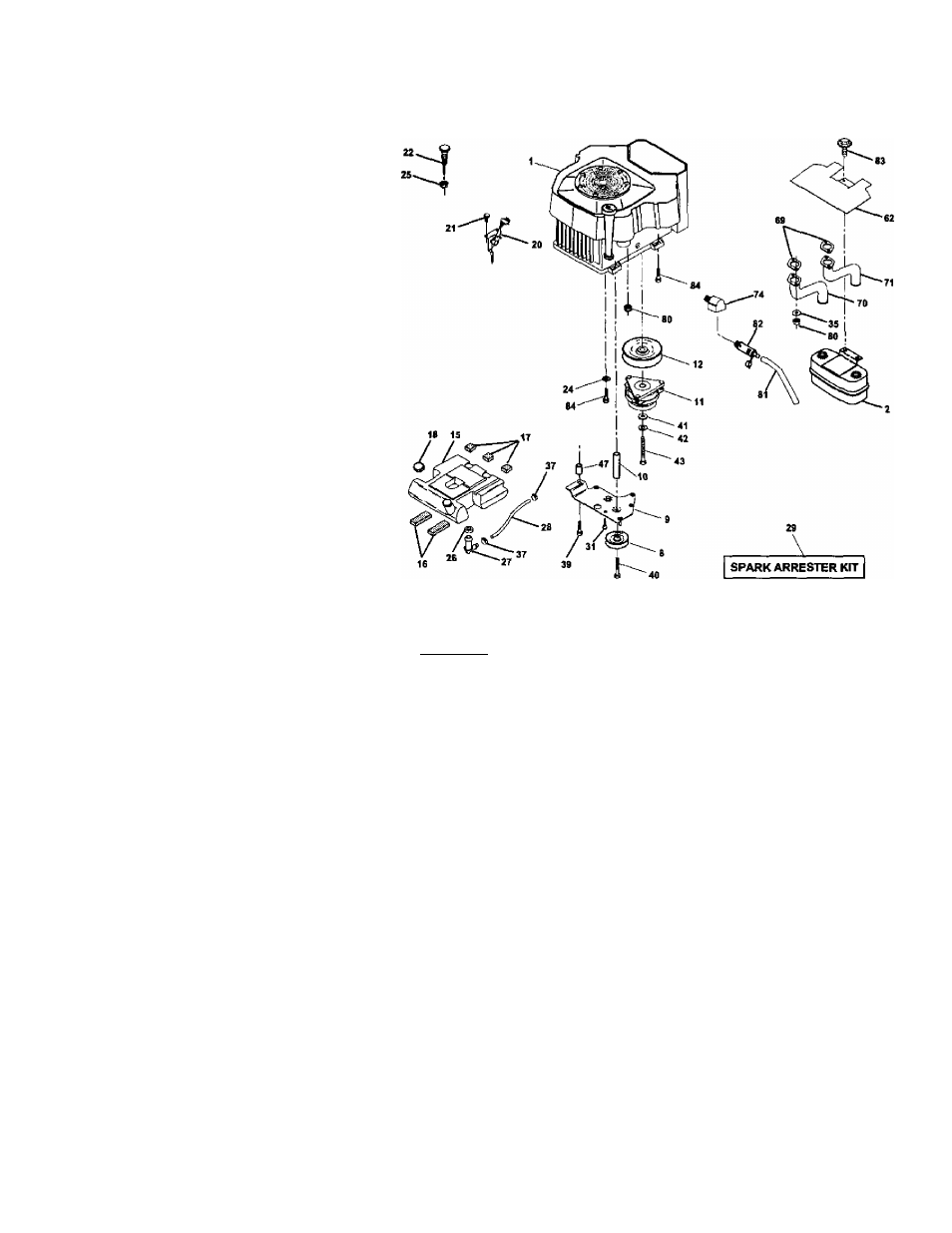

ENGINE
TRACTOR- MODEL NUMBER 917.275223
KEY PART
KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 Engine (See Breakdown) 31 145006 aip
Kohler Model No. CV724-695S1 35 10010500 Washer Split
г 149723 Muffler 37 123487X Clamp Hose
8 121361X Pulley V-ldler 39 17490636 ScrewTT 3/8-16X2-1/4UNC
9 177748 Keeper Asm. Belt Engine 40 17490664 Screw TT 3/8-16 X 4 UNC
10 175288 Bushing 41 126197X Washer 1-1/2 OD x15/32 ID x .250
11 174605 Clutch Electric 42 STD5S1143 Washer Lock 7/16
12 143996 Pulley Engine VGT Elect Clutch 43 173937 Bolt Hex 7/16 - 20 X 4 X Gr 5-1.5
15 151346 Tank Fuel Rear 3.50 Yt/Gt 96 47 175287 Spacer Engine
16 109227X Pad Spacer 62 146629 Shield Heat Muffler
17 106082X Pad Spacer 69 24-041412 Gasket
18 161493 Captetn Fuel W/Qauge 70 175545 Tube Exhaust LH
20 177328X428 Control Throttle 71 175546 Tube Exhaust RH
21 164863 Screw hwhd Hi-Lo #13-16x3/4 74 162295 Elbow Street Brass
22 175441X428 Control Choke 80 М730Э0800 NutFlange
24 STD551237 Washer Ext Tooth 3/8 81 148456 Tube Drain Oil Easy
25 73920600 NutKeps3/8-24UNF 82 148315 Plug Drain Oil Easy
26 3645J Bushing 83 171877 BoN 5/16-18unc X 3/4
27 139277 Stem Tank Fuel 84 17060624 ScrewThdrol3/8-16x 1-1/2
28 7834R Fuel Line
NOTE: All component dimensions given In U. S.
29 137180 Spark Arrester Kit inches 1 inch = 25.4 mm
