KNOWYOURTRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING
YOUR TRACTOR

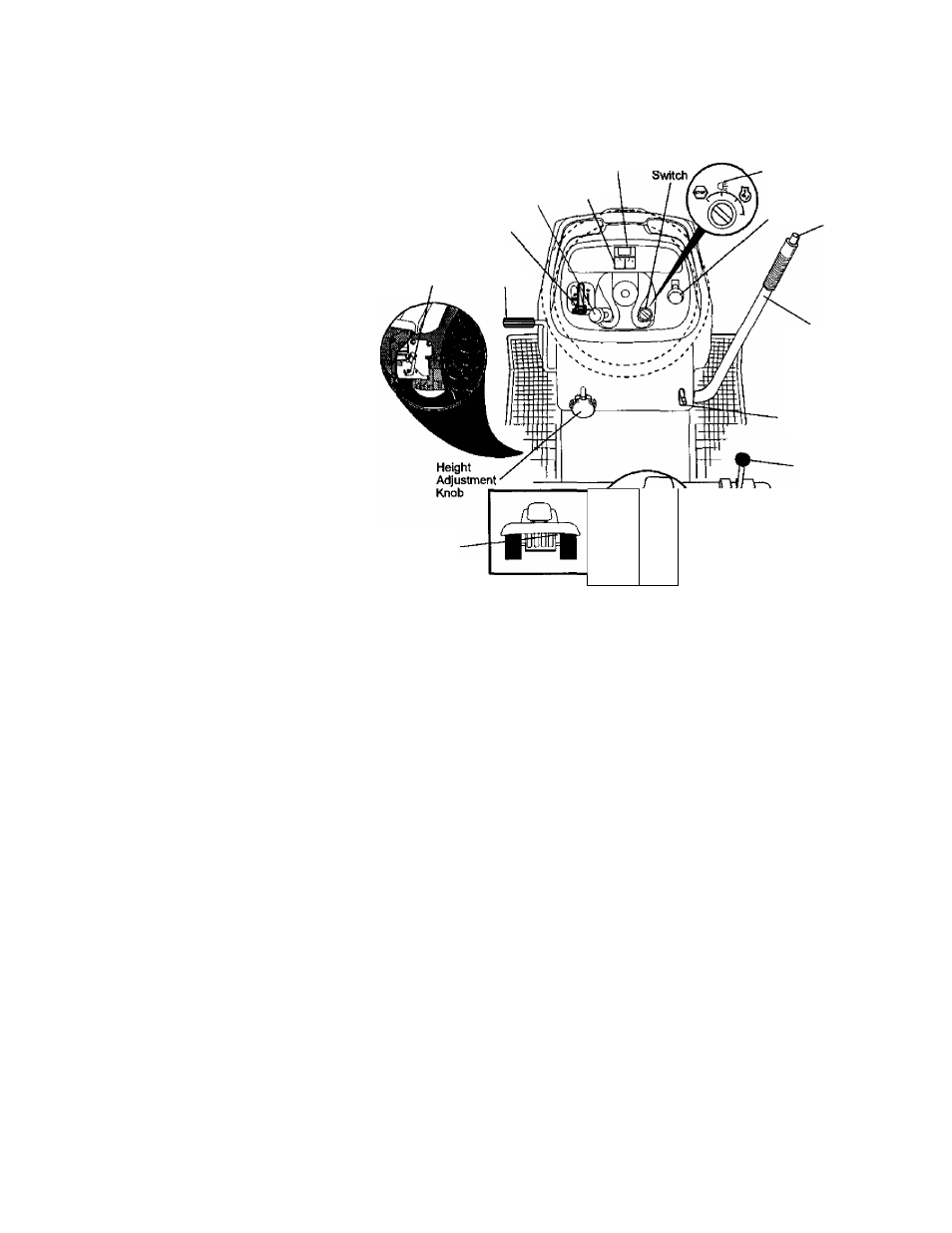

Compare the illustrations with your tractor to familiarize yourself with the locations of
various controls and adjustments. Save this manual for future reference.
Choke
Control
Hourmeter Ignition
Ammeter
Throttie
Control
Motion Drive
Belt Tension
Handle / Brake Pedai
Light
Switch
Attachment
Ciutch .
Switch
Uft
Lever
Piunger
Attachment
Lift Lever
Parking Brake
Lever
Motion Control
Lever
Free
Wheel
Control
Approx.
[
Speed: Êff ^
SMPH-" >
2MPH< "S
\
1MPH
Our tractors conform to the safety standards of the American National Standards
Institute.
ATTACHMENT CLUTCH SWITCH -
Used to engage the mower blades, or
o№er attachments mounted to your
tractor,
LIGHT SWITCH - Turns the headlights on
and off.
THROTTLE CONTROL - Used to control
engine speed.
BRAKE PEDAL - Used for braking the
tractor and starting the engine.
CHOKE CONTROL - Used when starting
a cold engine.
HEIGHT ADJUSTMENT KNOB - Used to
adjust the mower cutting height.
IGNITION SWITCH - Used for starting
and stopping the engine.
ATTACHMENT LIFT LEVER - Used to
raise and lower the mower deck or other
attachments mounted to your tractor.
LIFT LEVER PLUNGER - Used to release
attachment lift lever when changing its
position.
HOURMETER - Indicates hours of
operation.
AMMETER - Indicates charging {+) or
discharging (-) of battery.
PARKING BRAKE LEVER - Locks brake
pedal into the brake position.
MOTION CONTROL LEVER - Selects the
speed and direction of tractor.
FREEWHEEL CONTROL' Disengages
transmission for pushing or slowly towing
the tractor with the engine off.
MOTION DRIVE BELT TENSION
HANDLE-Used when changing motion
drive belt and, if necessary, starting
engine under extremely cold conditions.
