Park the tractor on level surface. Engage
parking brake.

1. Remove mower drive belt {See “TO

REPLACE MOWER DRIVE BELT" in
this section of ttiis manual).

2. Remove mower (See “TO REMOVE

MOWER” in this section of this

manual).

3. Remove screws from L.H. mandrel

cover and remove cover.

4. Carefully roll belt off LH, mandrel

pulley.

5. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel
pulley.

6. Remove any dirt or grass which may

have accumulated around mandrels

Be sure spring is hooked in secondary
idler ami and secondary spring arm.

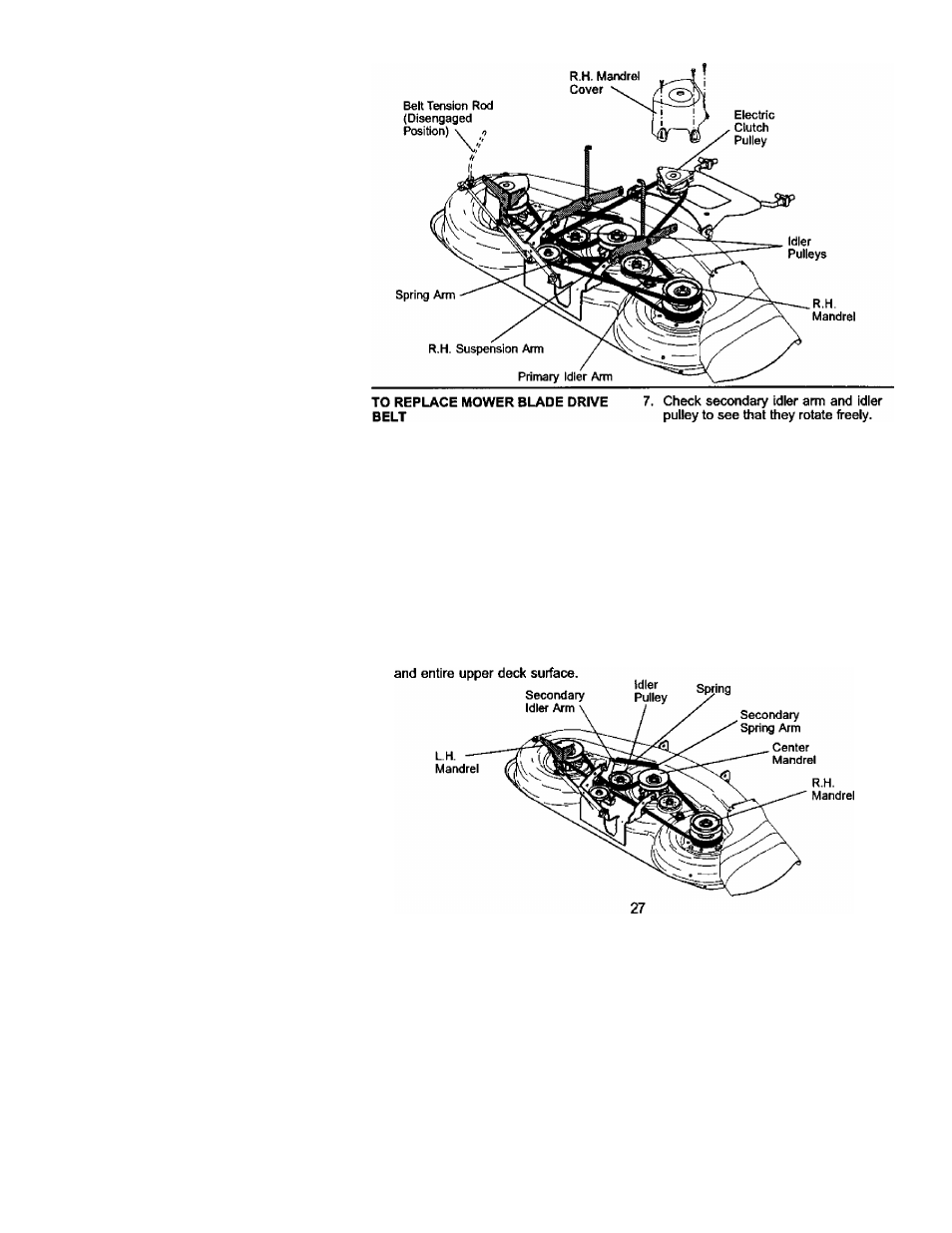

Install new belt in lower groove of R.H.
mandrel pulley, idler pulley, and
center mandrel pulley as shown.

10. Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in ali

grooves properly.

11. Reinstall L.H. mandrel cover.

12. Reinstall mower to tractor (See

“INSTALL MOWER AND DRIVE
BELT" in the Assembly sectton of this
manual).

13. Reassemble mower drive belt (See

‘TO REPLACE MOWER DRIVE BELT"

In this section of this manual).
