TRACTOR-MODEL NUMBER 917.275223

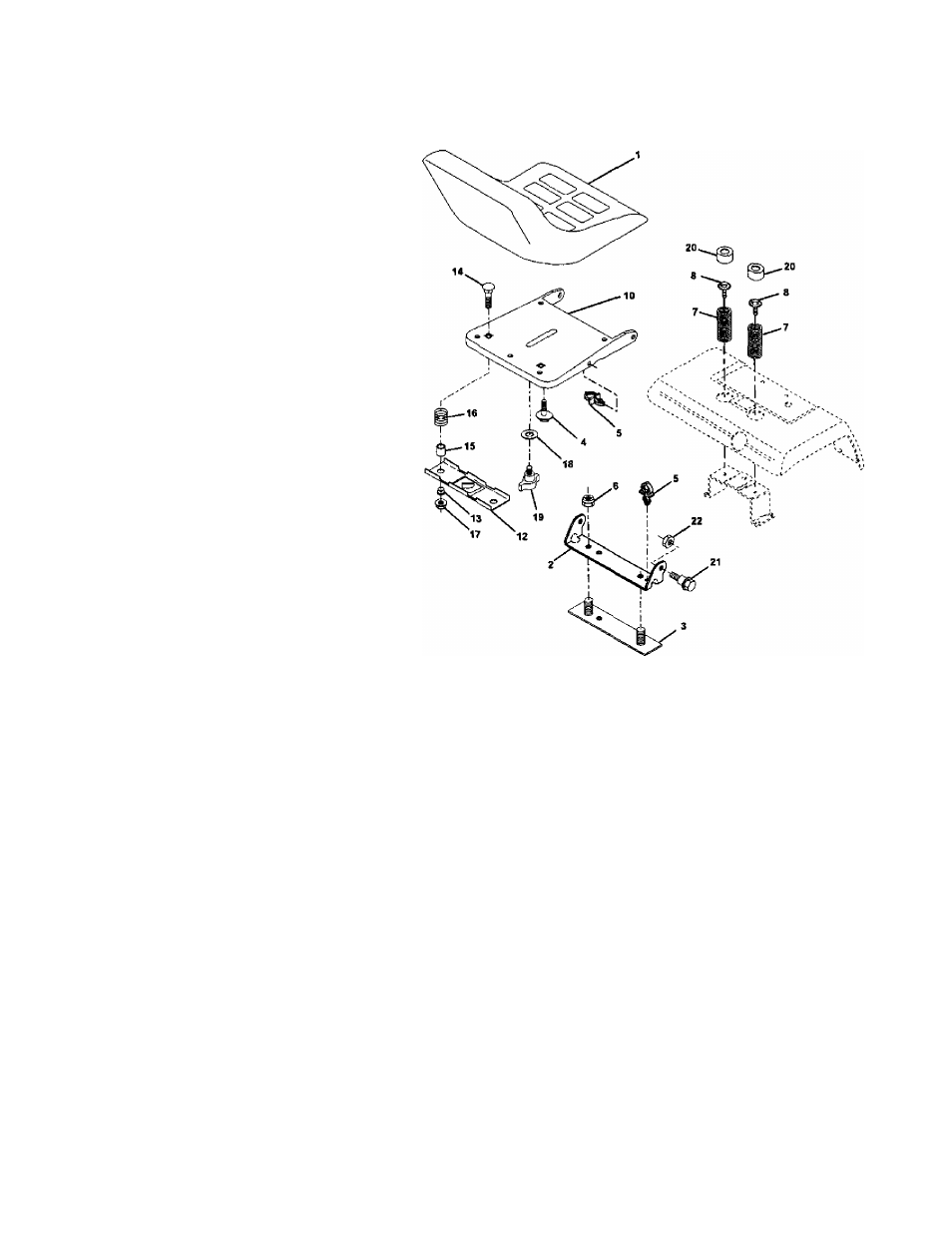

SEAT ASSEMBLY
KEY PART KEY PART
NO. NO, DESCRIPTION NO. NO. DESCRIPTION
1 140124 Seat 14 72050412 Bolt, Carriage 1/4-20X1-1/2
2 140551 Bracket, Pivot Seat 15 121249X Spacer. Split
3 140675 Strap, Fender 16 123740X Spring, Cprsn
4 127018X BoH, Shoulder 5/16-18 x.62 17 12Э976Х Nut, Lock 1/4 Lge Fig Gr. 5
5 145006 Clip, Push In, Hinged 18 19171912 Washer 17/32x1-3/16x12 Ga.
6 STD541437 Nut, Crownlock 3/8-16 Unc 19 166369 Knob, Seat
7 124181X Spring, Seat Cprsn 20 124238X Cap, Spring Seat
8 171Э77 Bolt S/16-18Uncx3/4 w/Sems 21 171852 Bolt, Shoulder 5/16-18
10 174894 Pan, Seat 22 73800500 Nut, Lock Hx w/lns. 5/16-18
12
13 121246X
121248X Bracket, Mounting Switch
Bushing, Snap
NOTE :: All component dimensions given in U, S,
Inches 1 inch = 25.4 mm
47
