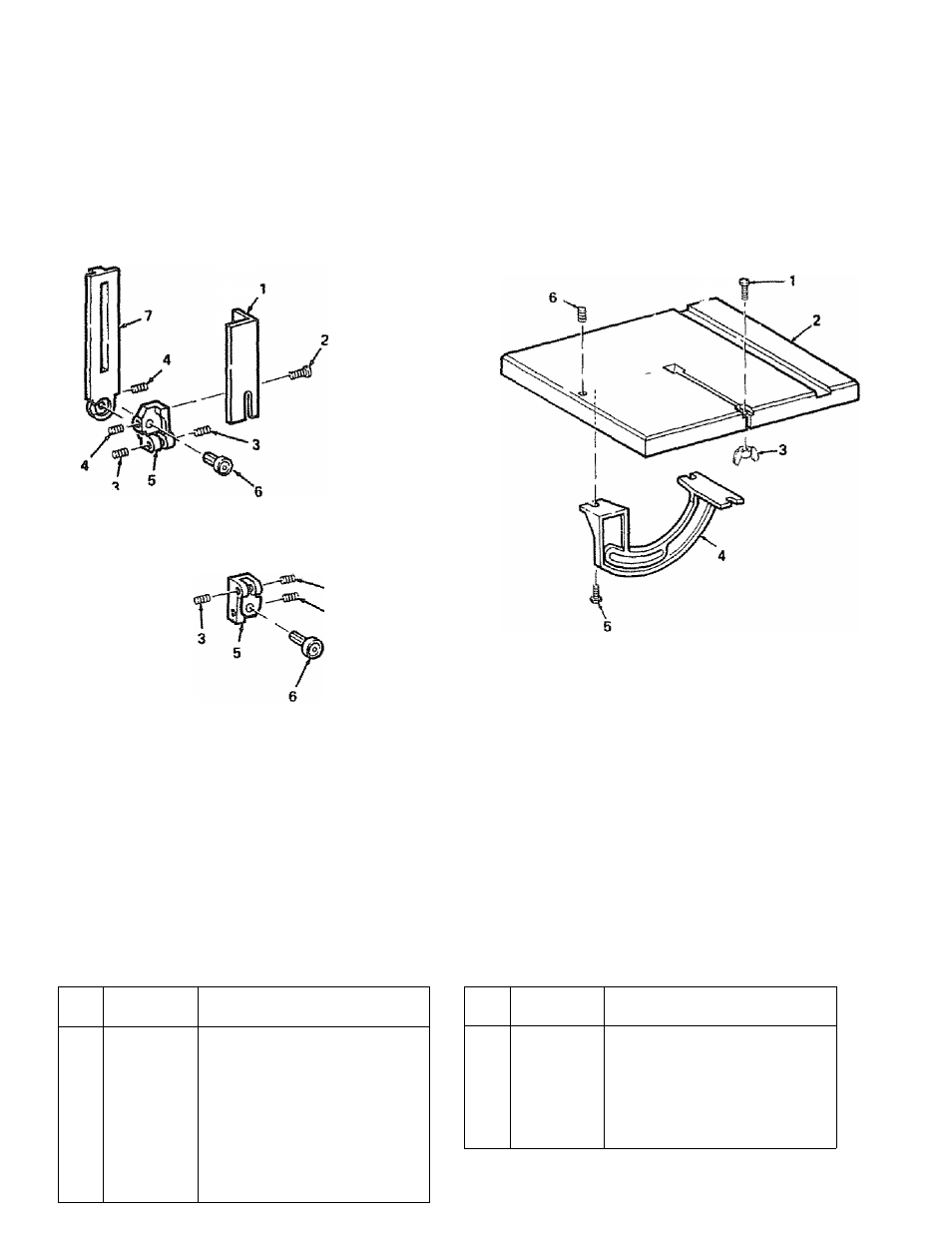

repair parts
for
io
-
inch
band
saw
113.244501
Always order by Part Number - Not by Key Number
FIGURE
1
FIGURE
2
Key
No
Part
No.
Description
1
820286
Guard Blade
2
STD601103
• Scf Pan HD TY “TT"
10-32x3/8
3
817899
Scr Soc Set 1/2 Dog Pt
1/4-20
X
1/2
4
STD502502
• Scr Soc Set 1/4-20 x 1/4
5
820279
Support Guide
6
820281
Shaft w/Bearing
7
820284
Slide Upper
Key
No
Part
No.
Description
1
Scr Truss 1/4-20x5/8
2
817935
Table
3
820874
Nut Wing Low Profile f/4-20
4
817915
Trunnion
5
815865-2
Scr Hx Hd TYTT 1/4-20 x 5/8
6
817149
Scr Locking Set 1/4-20
