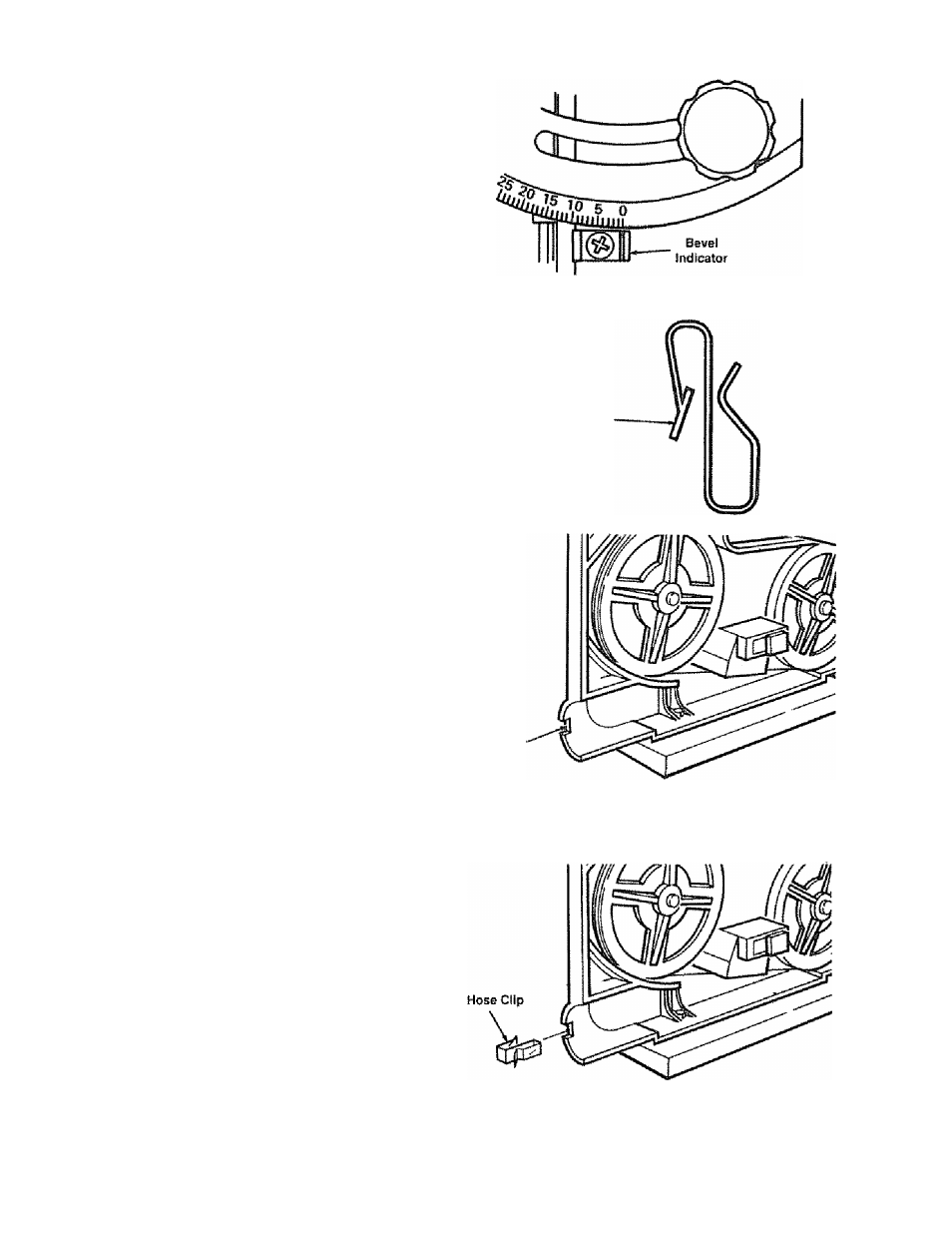

Locate the bevel indicator and 10-32 x 3/8" long
pan head screw in loose parts bag.
Use a #2 philllps screwdriver to attach the bevel
indicator to the back of the frame, in the small
recess below the trunnion, with the 10-32 x 3/8"
screw
Align the bevel indicator with the "0" degree mark
on the trunnion and tighten the screw
INSTALLING THE HOSE CLIP
1 Locate the Hose Clip in the loose parts bag
Identify the barbs on the clip
Barbs
2- Open the front cover of the saw by pulling forward
on the finger hold located on the left side of the
band saw. Locate !he notch in the Frame at the
sawdust ejection port
Notch
Position the Hose Clip with the barbs to the back
side of the band saw Slide the Hose Clip into the
notch Push the clip until it is fully seated on the
Frame The Hose Clip will secure a Wet/Dry vac
hose in place for sawdust collection,
13
