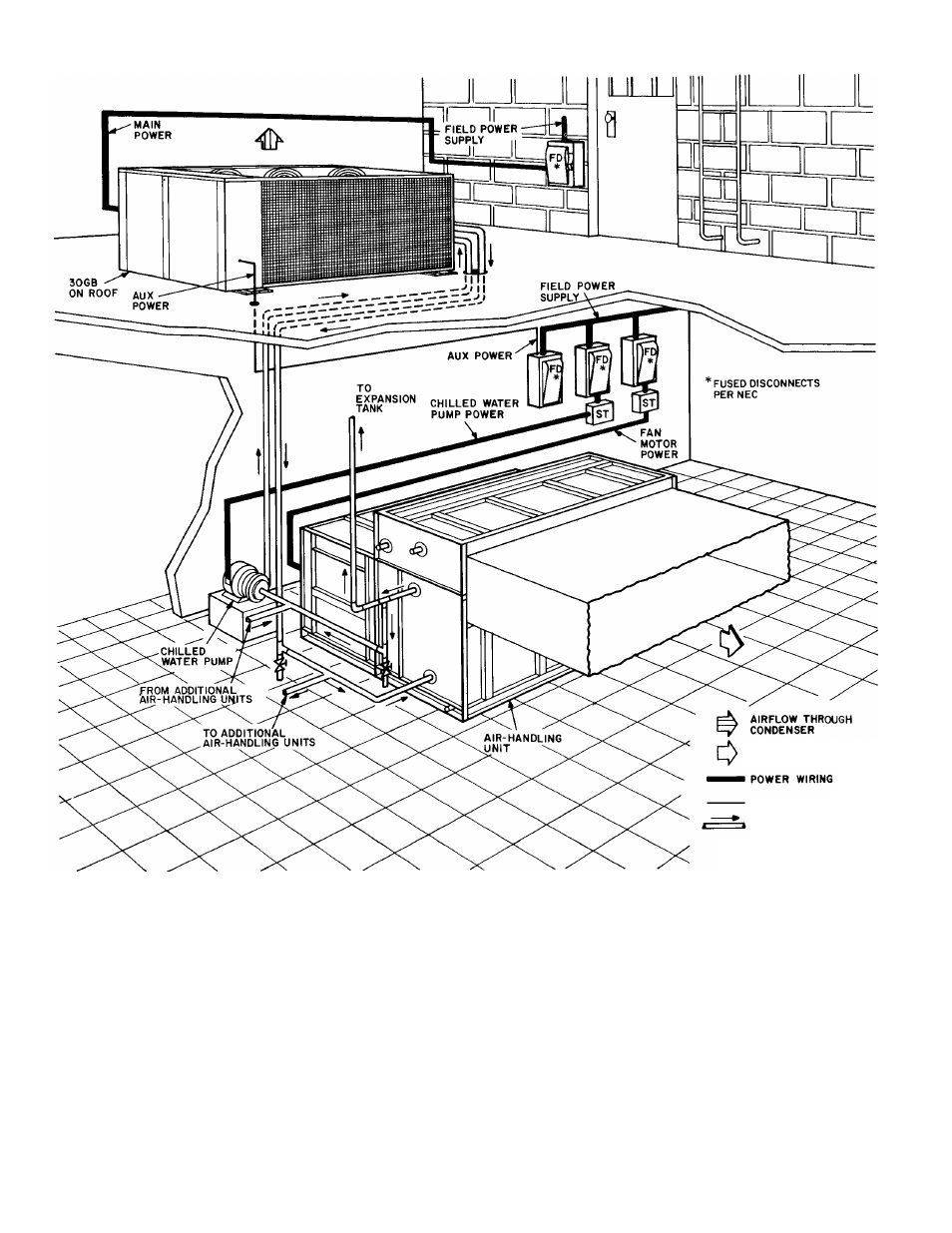

Typical installation

AIRFLOW THROUGH

AIR-HANDLING UNIT

CONTROL WIRING

CHILLED WATER PIPING

ST - STARTER

FD - FUSED DISCONNECT

NOTES:
1.

Wiring and piping shown are generai points-of-connection

guides oniy and are not intended for or to include all details for a
specific installation.

2. All wiring must comply with applicable local and national codes

3 All piping must follow standard piping techniques.

Refer to

Carrier System Design Manual for details.
