HEATING CYCLE CHECK CHARTS (cont)

PRESS. AT SUCT. SERVICE PORT psig

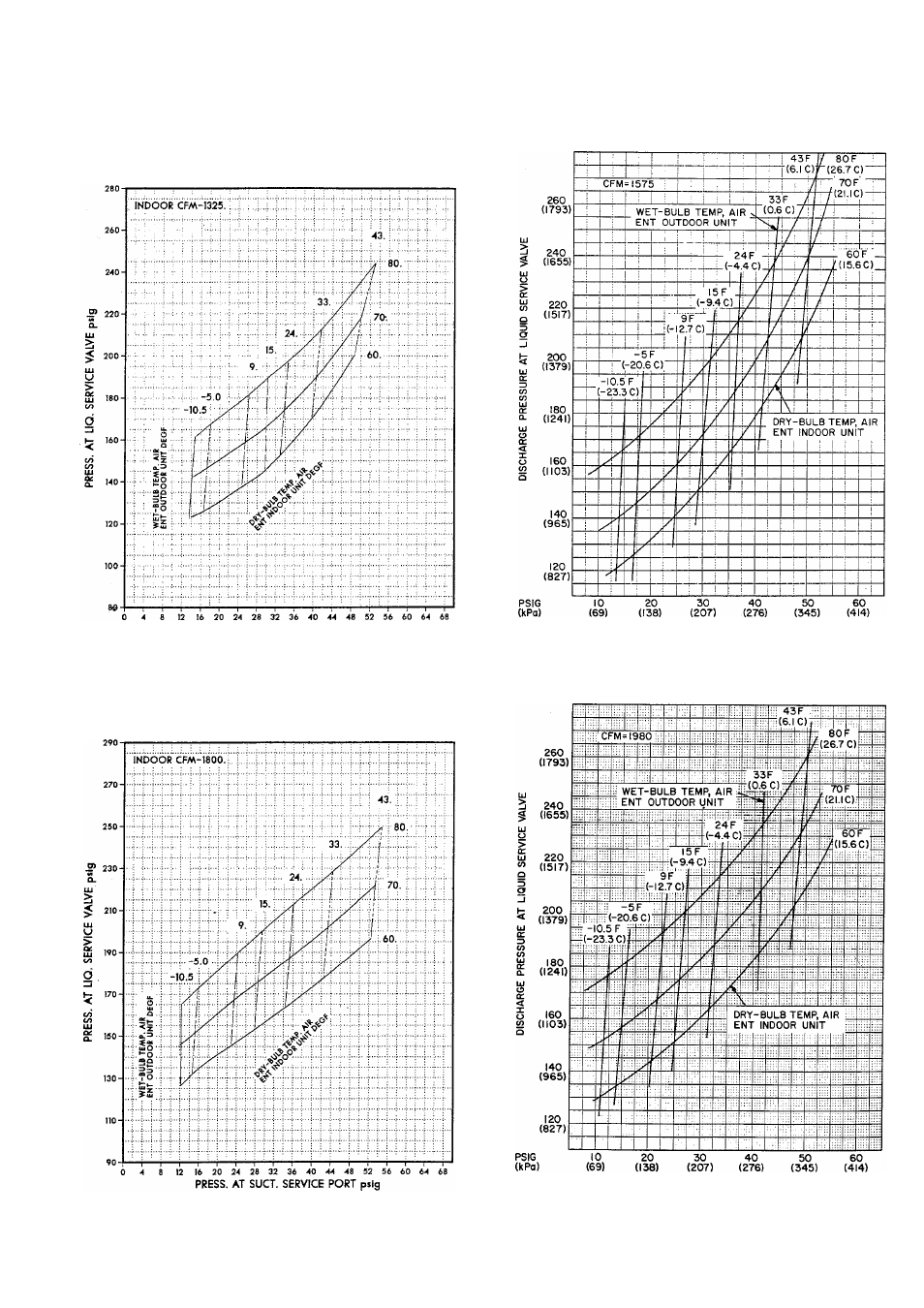

Fig. 11—38QN036 Heating Cycie Check Chart

SUCTION PRESSURE AT SERVICE PORT

A87160

Fig. 12—38QN042 Heating Cycie Check Chart

Fig. 13—38QN048 Heating Cycle Check Chart

SUCTION PRESSURE AT SERVICE PORT

87161

Fig. 14--38QN060 Heating Cycie Check Chart
