006321 REV. B Date 09-07-11 JWC
●O
2
Holder Assembly
(Kit # 250010)
:
6940-6950
●Tools needed:
• ½”
Wrench
•
3/16” Allen Wrench
•
Power tools are NOT recommended
●Assembly Instructions
1. Locate the rear-right side of the chair.
(FIG. 1)
2. CAREFULLY place the chair on it’s side &
And open the swing arm all the way. (FIG.1)
3. Using a ½” wrench & a 3/16” allen wrench unscrew
the swing-arm hinge bolt. (FIG.2)
4. Take the loosened bolt out of the arm bracket, lift
upholstered swing-arm off of frame, and place on
floor.
5. Use a ½” wrench and REMOVE the bolts from the
hinge bracket. (FIG.3)
6. Line up the “O2 Mounting Bracket” with the holes in
the upholstered arm. Be sure the notch in the
mounting bracket is facing up.
(FIG.3A)
7. Place the arm bracket on top of the “IV Bracket”
and re-install the 2 bolts using a ½” wrench. (FIG.3A)
8. Re-install the upholstered arm onto the chair frame
(FIG.4)
9. Insert O
2
holder into bracket until the silver snap-button
sits in the notch of the bracket. (FIG.5)
NOTE:
Left & Right is determined – as if sitting
in the chair
NOTE:
Some FORCE may need to be applied to the
allen wrench in order to loosen the hinge bolt

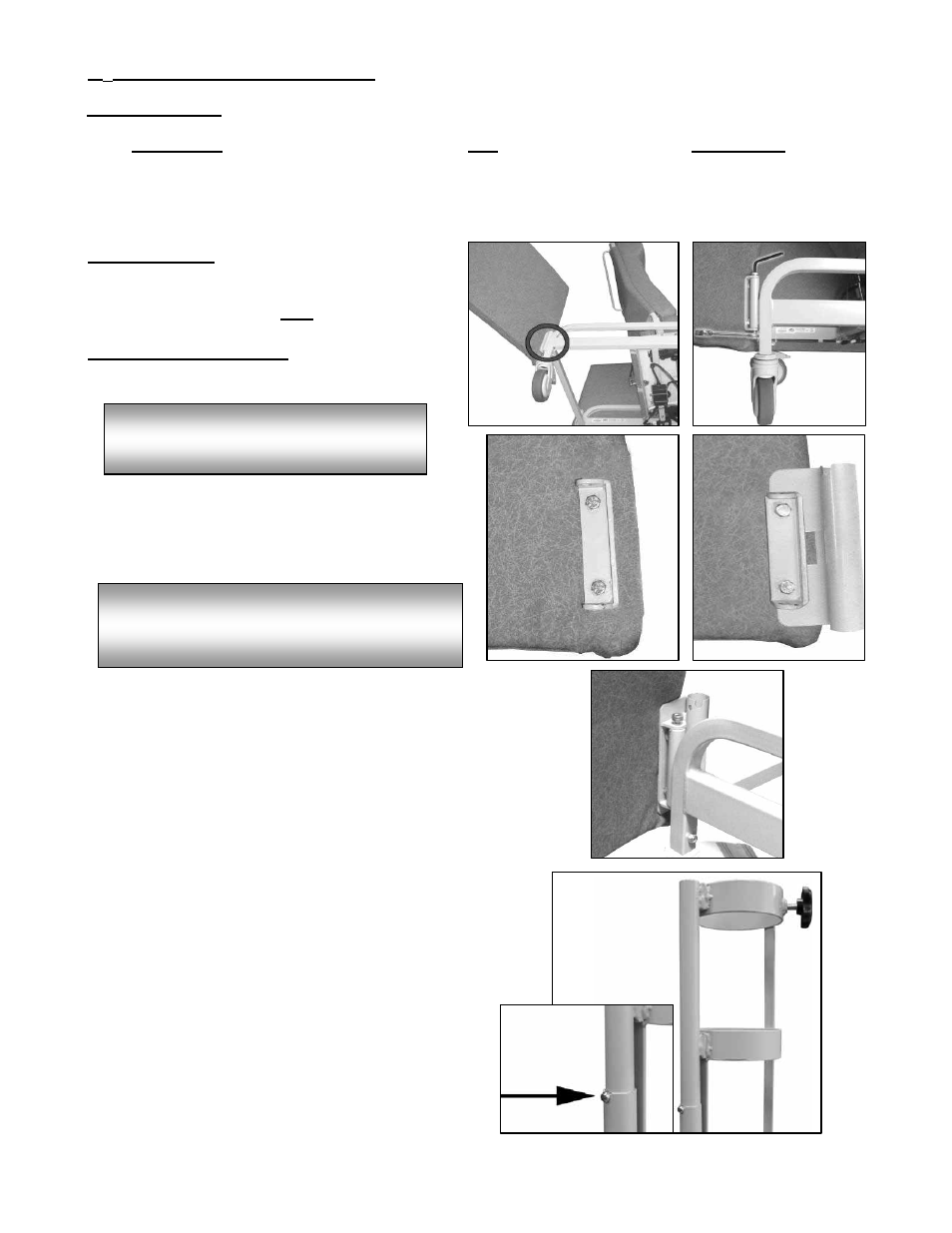

FIG. 1 FIG. 2
FIG. 3
FIG. 3A
●Parts Included:
Description: Qty. Part Number
WELDED, OXYGEN TANK HOLDER 1 250015
O2 MOUNTING BRACKET 1 227613
STAR KNOB, MODIFIED, O2 HOLDER 1 201215
FIG. 4
FIG. 5
