Winco Mfg. IV Pole and Attachment User Manual
Page 3

Page 3 of 8
006312
Revision F Date 10-22-13
JWC

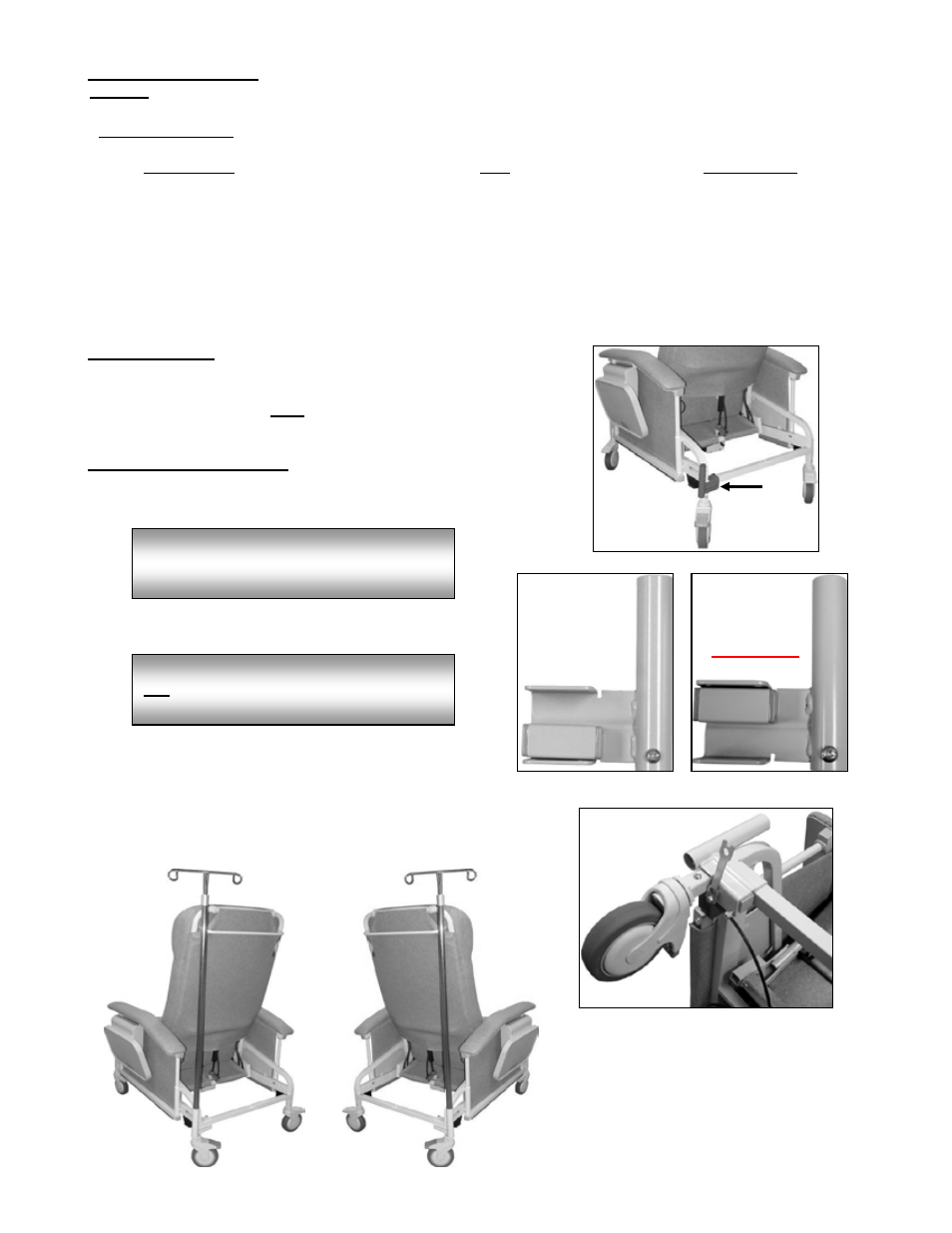

●IV Pole Attachment
Models: 5271, 5281, 6550, 6551
●Tools needed:
·
Phillips Head Screwdriver
·
7/16” wrench (multiple size wrench included)
·
Powered tools NOT recommended –
●Assembly Instructions
1. Locate the proper location on the chair for the
“IV U-Bracket Assembly”. (FIG.1 & 1A)
2. Insert the “IV Spacer” into the “IV U-Bracket”
(FIG. 2 or FIG.2A) and place onto chair frame.
3. Insert the two screws through the holes in the
“IV U-Bracket”. (FIG.2B)
4. Screw on the nylon lock-nuts and, using the wrench
provided, tighten the lock-nuts to the bracket. (FIG.3)
5. Your chair should look similar to that of (FIG.4)
NOTE:
Left & Right is determined – as if sitting
in the chair
●Parts Included:
Description:
Qty.
Part Number
IV U-Bracket Assembly
1
227600 (LEFT)
227605 (RIGHT)
IV Spacer
1
227607
1” Grey Cap
2
700700
¼-20 Nylon Lock-nut (1 installed)
3
566204
¾” Phillips-head Screw (installed)
1
566504
2¾” Phillips-head Screw
2
566571
IV Pole
1
480500
FIG. 1
FIG. 3
FIG. 4
FIG. 2
IMPORTANT:
527 “IV Spacer” should be placed towards
the top of the “IV U-bracket”. (FIG.2A)
FIG. 2A
527 ONLY
