INSTALLATION (continued)
1--2
Engine Starting Contacts
Customer connections for engine control contact
connections are located on the transfer switch. Refer to
wiring diagram provided with the Series 300 ATS and
connect the engine start wires to the appropriate
terminals. See Figure 1–2 and Table A.
Table A. Engine start connections.
When normal source
fails
Terminals on transfer
switch
contact closes TB14 and TB15
contact opens TB14 and TB16
TB 14
TB 15 TB 16
ENGINE STARTING CONTACTS
( SHOWN DE–ENERGIZED )
TOP
STUD
MIDDLE
STUD
BOTTOM
STUD
14
15
16
TS
NR
NR
left side
of switch
Figure 1–2. Engine starting contact label and
terminals located on the transfer switch.
Controller Ground
A grounding wire must be connected to the controller’s
lower left mounting stud. Because the controller is
mounted on the enclosure door, a conductive strap must
be used between the enclosure and the door. This
connection provides proper grounding which does not
rely upon the door hinges.
Harnesses
The transfer switch is connected to the left side of the
controller by a plug–in harness (two plugs).
Auxiliary Circuits
Connect auxiliary circuit wires to appropriate terminals
on transfer switch as shown on the wiring diagram
provided with this Series 300 Automatic Transfer Switch.
Make the necessary auxiliary connections by referring to
Section 5, Control Features.
Connections to Controller for other Control Features
(located on bottom of Controller)
for factory
use only
Remote Control Features Connections
(refer to the Wiring Diagram &
page 5–5 for DIP switch settings)
Each control contact must be suitable
for a 5 V DC low energy circuit.
Programmable
Engine Exerciser
connection,
if provided
(refer to
page 5–2)
Load Disconnect
Feature
Connections
(see Wiring Diagram
& refer to page 5–5
for DIP switch settings)

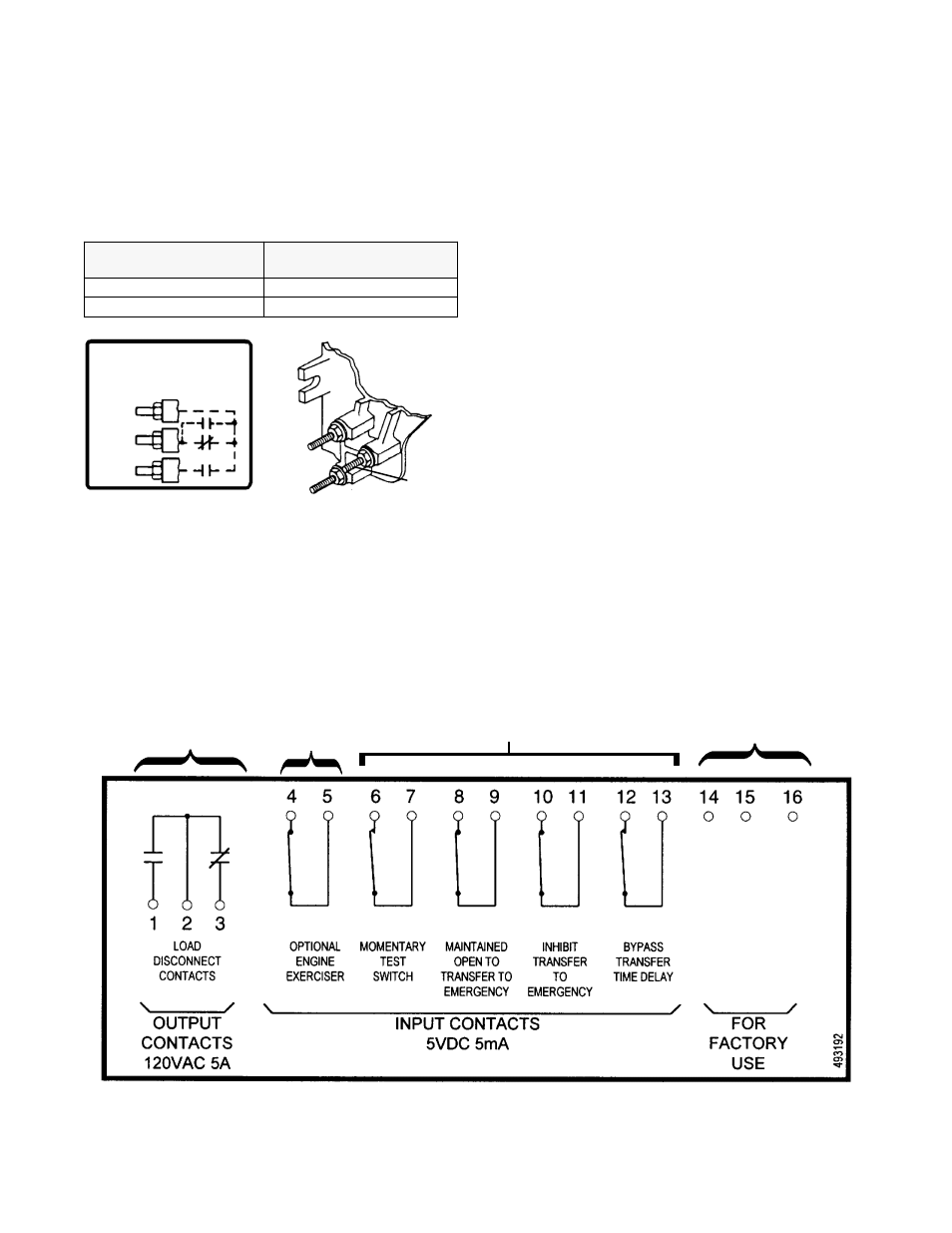

Figure 1–3. Input / output label on the Controller showing possible connections to the lower terminal block.
