5 DESCRIPTION OF CONTROLS


The following section details the function and meaning of the various controls on the module.

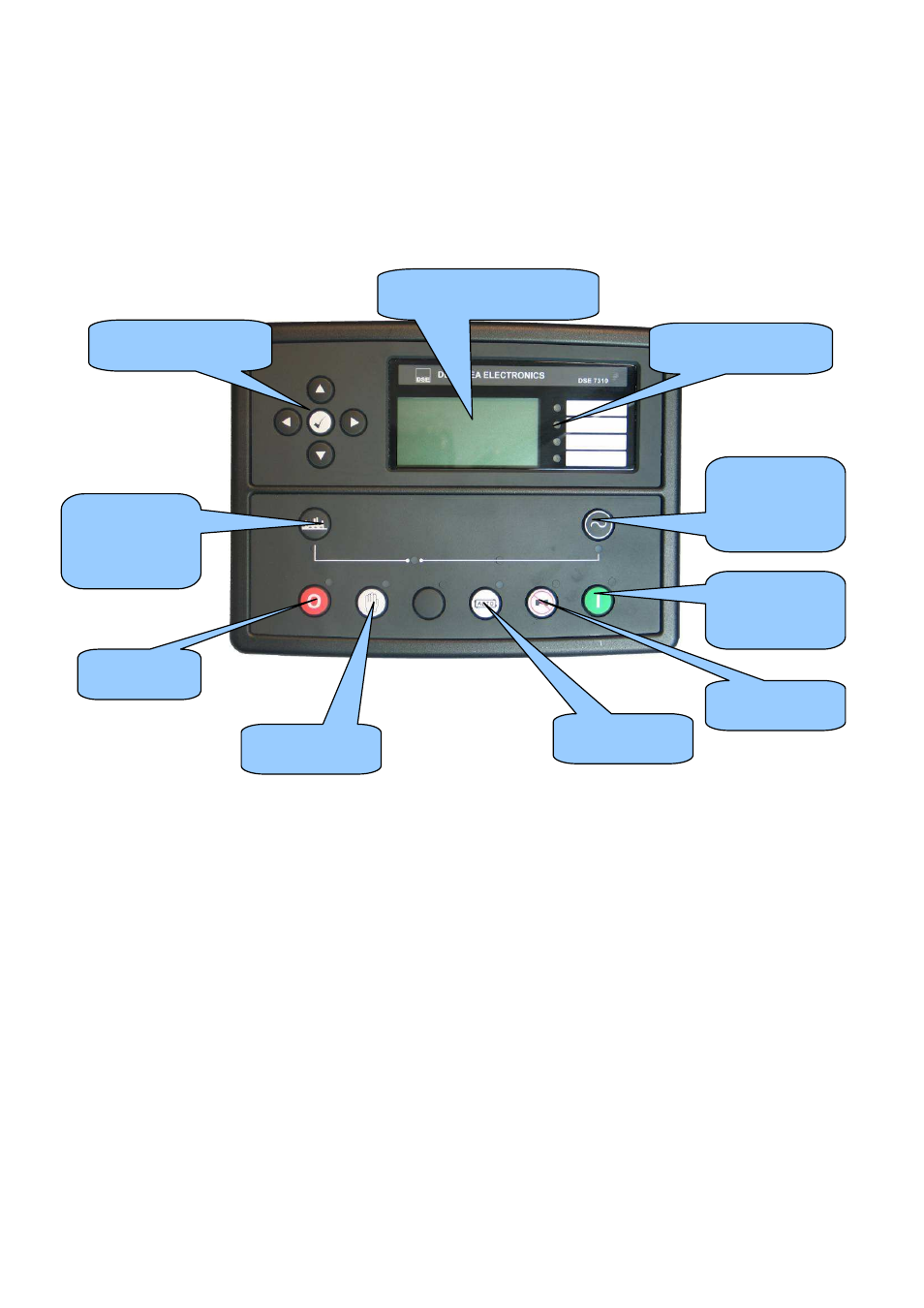

5.1 DSE7210 / DSE7310 AUTOSTART CONTROL MODULE


Menu navigation
buttons

Four configurable
LEDs

Select Stop
mode

Select Manual
mode

Select Auto
mode

Mute alarm /
Lamp test

Start engine
(when in
manual mode)

Close
generator
(manual mode
only)

Open
generator
(manual mode
only)

Main status and
instrumentation display
