DSE7200 / 7300 Series Operators Manual
26
3.15.2 CABLE TIE FIXING POINTS
Integral cable tie fixing points are included on the rear of the module’s case to aid wiring. This additionally
provides strain relief to the cable loom by removing the weight of the loom from the screw connectors, thus
reducing the chance of future connection failures.
Care should be taken not to overtighten the cable tie (for instance with cable tie tools) to prevent the risk of
damage to the module case.

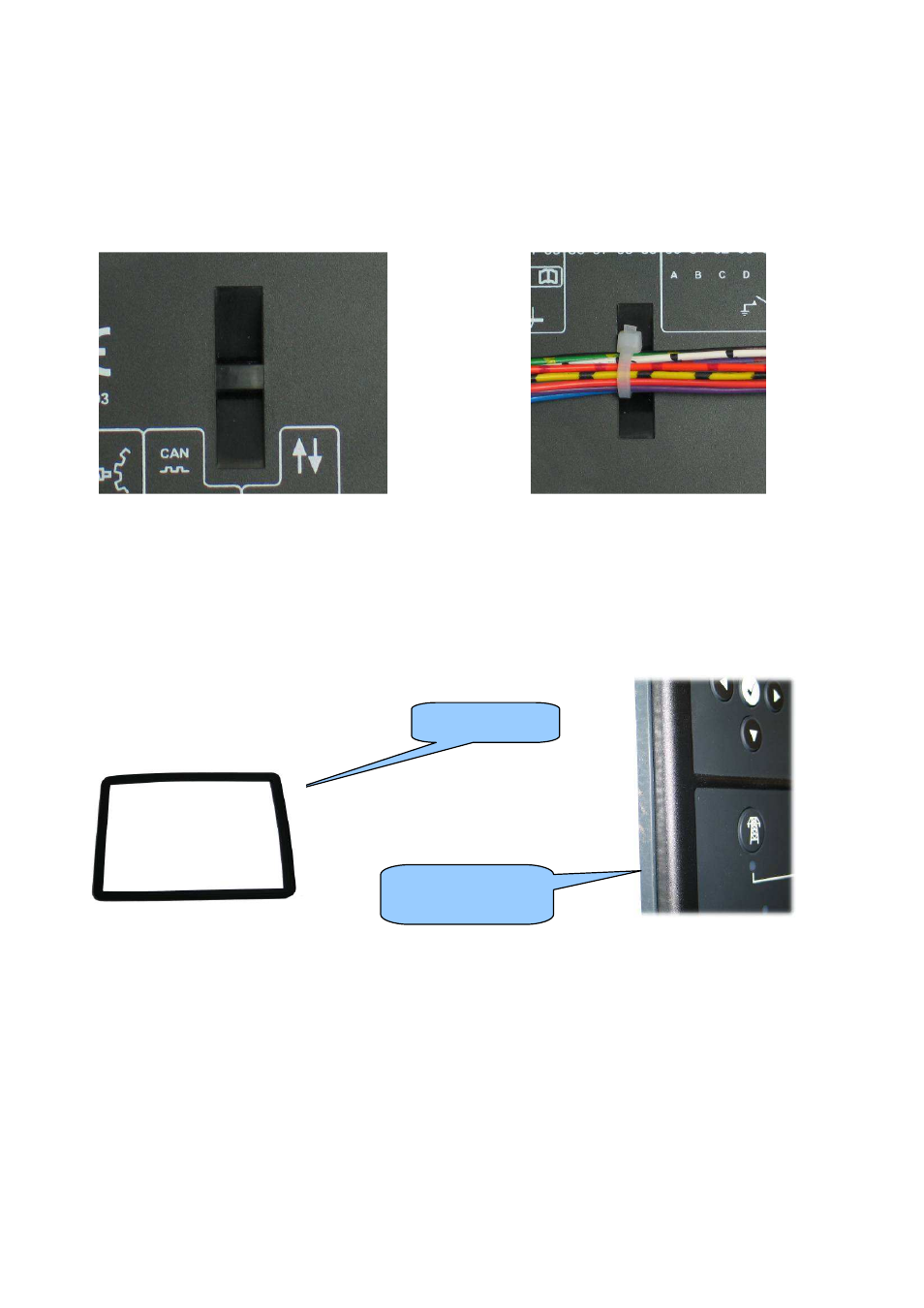

Cable tie fixing point With cable and tie in place
3.15.3 SILICON SEALING GASKET
The supplied silicon gasket provides improved sealing between the 7000 series module and the panel fascia.
The gasket is fitted to the module before installation into the panel fascia.
Take care to ensure the gasket is correctly fitted to the module to maintain the integrity of the seal.
Gasket fitted to
module
Sealing gasket
