DSE7200 / 7300 Series Operators Manual
45
4.3.5 DSENET®
NOTE: - This feature is only available on DSE7300 Series modules

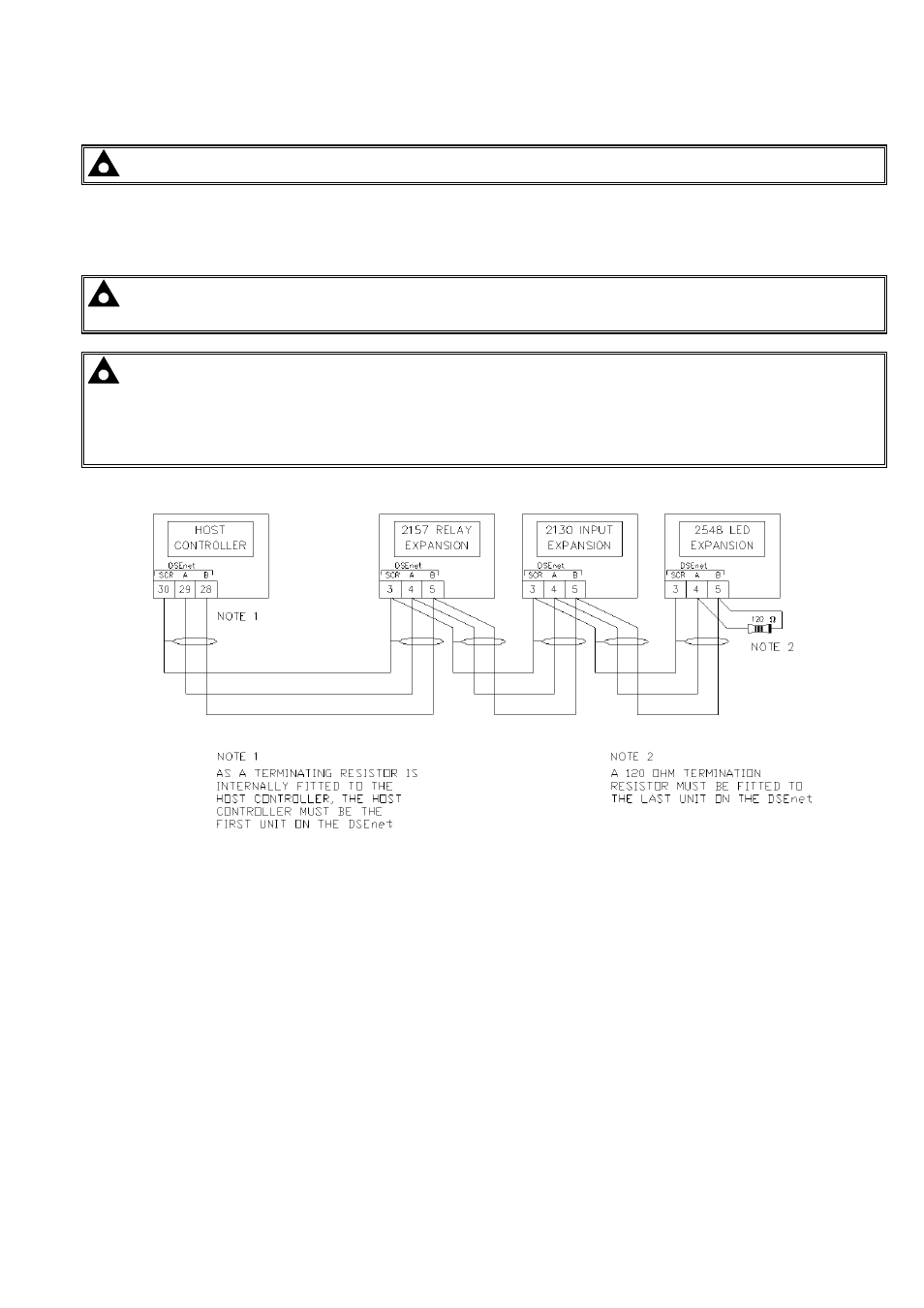

DSENet® is the communication port between the host controller (DSE7300 series) and the expansion device as
shown below. Further details are contained within the Specification section of this documents and within the
operator manual for the specific expansion module you are connecting to.
NOTE: - This feature is not available if the DSE7300 Series module has been configured to use the
DSENet® port as the interface to Cummins Modbus Engine GCM.
NOTE:- Screened 120Ω Ω Ω Ω impedance cable specified for use with CAN must be used for the DSENet®
(RS485) connection.
DSE stock and supply Belden cable 9841 which is a high quality 120Ω
Ω Ω Ω impedance cable suitable for
DSENet® use (DSE part number 016-030)
