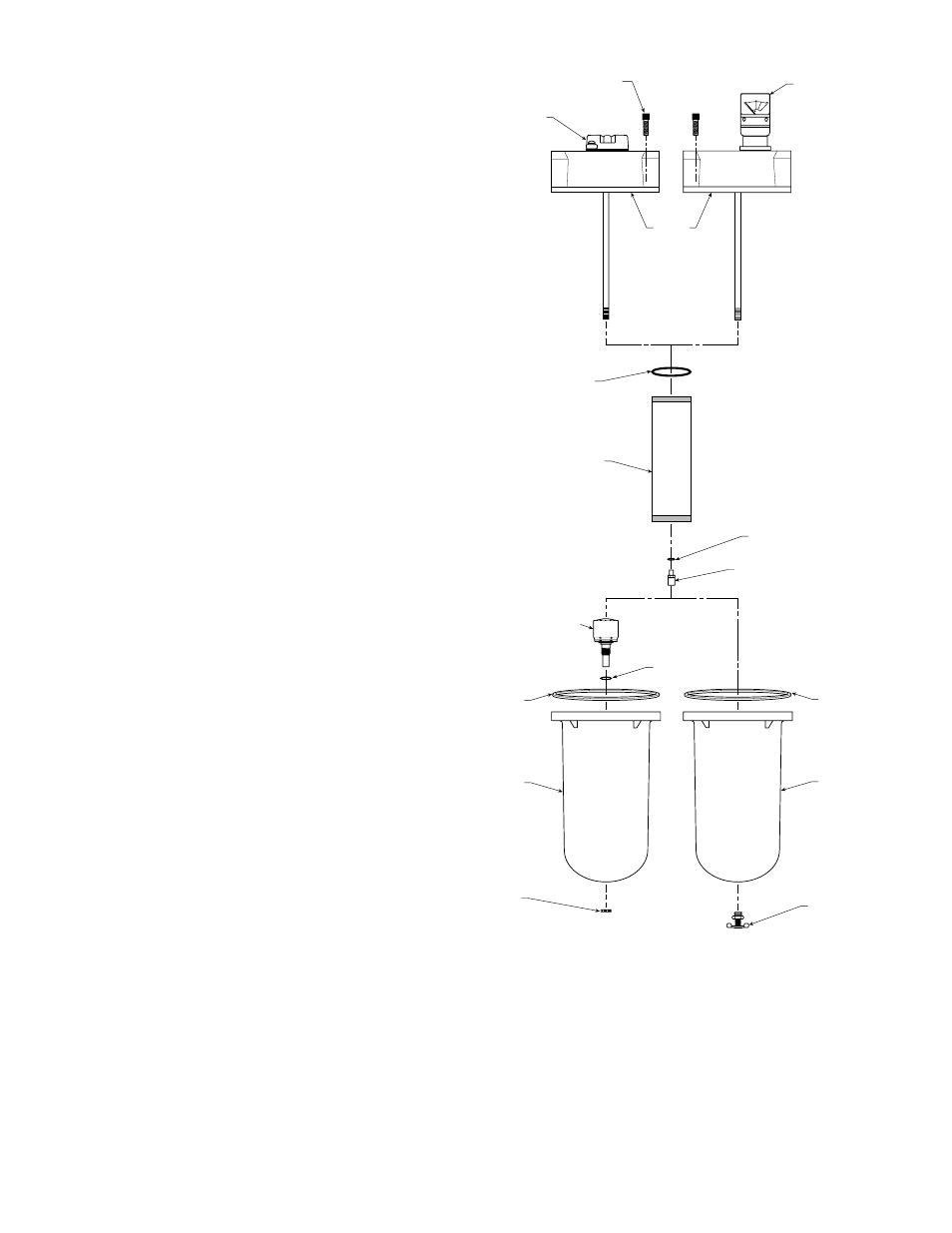

Coalescing Filter Model M32 with Variations and Accessories 83-212-000
kPa x 100 bar
(psi)
0.35
(5,0) 0.7
(10)
.P
Screws
(6 required)
(18 ± 4 ft-lbs
Torque)
Retainer Nut
(50 ± 5 in-lbs Torque)
Automatic
Drain
Differential
Pressure
Indicator
(standard)
Differential
Pressure
Gauge
(optional)
Cover
Coalescing
Element
O-Ring
O-Ring
O-Ring
Bowl
Gasket
Bowl
Bowl
Gasket
Bowl
Petcock
Nut
MAINTENANCE
1. The element operates effectively when it is saturated. The element's
useful life will end only when the resistance to flow becomes too high
or the maximum permissible pressure is reached. The element cannot
be cleaned or reused and must be replaced at the end of its useful
life.
2. IF THE uNIT HAS A MANuAL DRAIN, DRAIN THE uNIT ONCE EVERY 8 HOuRS.
3. When bowl becomes dirty, replace the bowl or clean by wiping with a dry, clean
cloth.
4. Before placing the unit in service, make sure that the bowl and bowl guard are
reinstalled, and securely locked in place.
REPAIR KITS AND REPLACEMENT PARTS
Filter Element Kit Type D Element (carbon adsorption)
(includes filter element and o-rings) ...............................MXP-95-558
Filter Element Kit Type C Element (.01 ppm/wt)
(includes filter element and o-rings) ...............................MTP-95-559
Filter Element Kit Type B Element
(includes filter element and o-rings) ...............................MSP-95-873
Bowl Gasket Kit ................................................................... GRP-95-288
Automatic Mechanical Drain
(includes Fluorocarbon seals, o-ring and nut) ................GRP-95-981
Automatic Mechanical Drain
(includes Nitrile seals, o-ring and nut) ............................GRP-95-973
Differential Pressure Indicator (Standard) ............................DP2-01-000
Differential Pressure Gauge (Optional) ................................DP3-01-000
