SF1 & SF2 Particulate Filters 83-948-000
Operation
1. Both free moisture and solids are removed automatically by the
filter.
2. Manual drain filters must be drained regularly before the
separated moisture and oil reaches the bottom of the baffle or
end cap.
3. The filter element should be removed and replaced when
pressure differential across the filter is 69 kPa (10 psig).
Service Procedure
Caution: Shut off air supply and exhaust the pressure
trapped within the filter bowl before servicing unit.
1. Unscrew and remove bowl.
2. Unscrew the filter holder from body and then remove element.
3. Clean all internal parts and bowl before reassembling.
4. The particulate filter element should be removed and cleaned
with household soap. Element should be replaced if soiled or
creating excessive pressure drop. IMPORTANT: The filter will
not operate properly if the deflector is not installed properly. The
deflector must be installed between the filter stem and the filter
body.
5. Attach filter holder and finger tighten firmly.
6. Replace bowl seal. Lightly lubricate new seal to assist with
retaining it in position.
7. Install bowl into body and tighten; hand tight, plus 1/4 turn.
8. After servicing, apply system pressure and check for air leaks. If
leakage occurs, DO Not Operate — conduct servicing again.
!
Service Kits Available
Description SF1 SF2
Auto Drain — SRP-96-027
Auto Pulse Drain RK504SY-SS —
Element (5 Micron) SRP-96-001 SRP-96-003
Element (20 Micron) SRP-96-002 —
Element (40 Micron) — SRP-96-004
Manual Drain SAP05481 SAP05481
Sight Glass — SRP-96-026

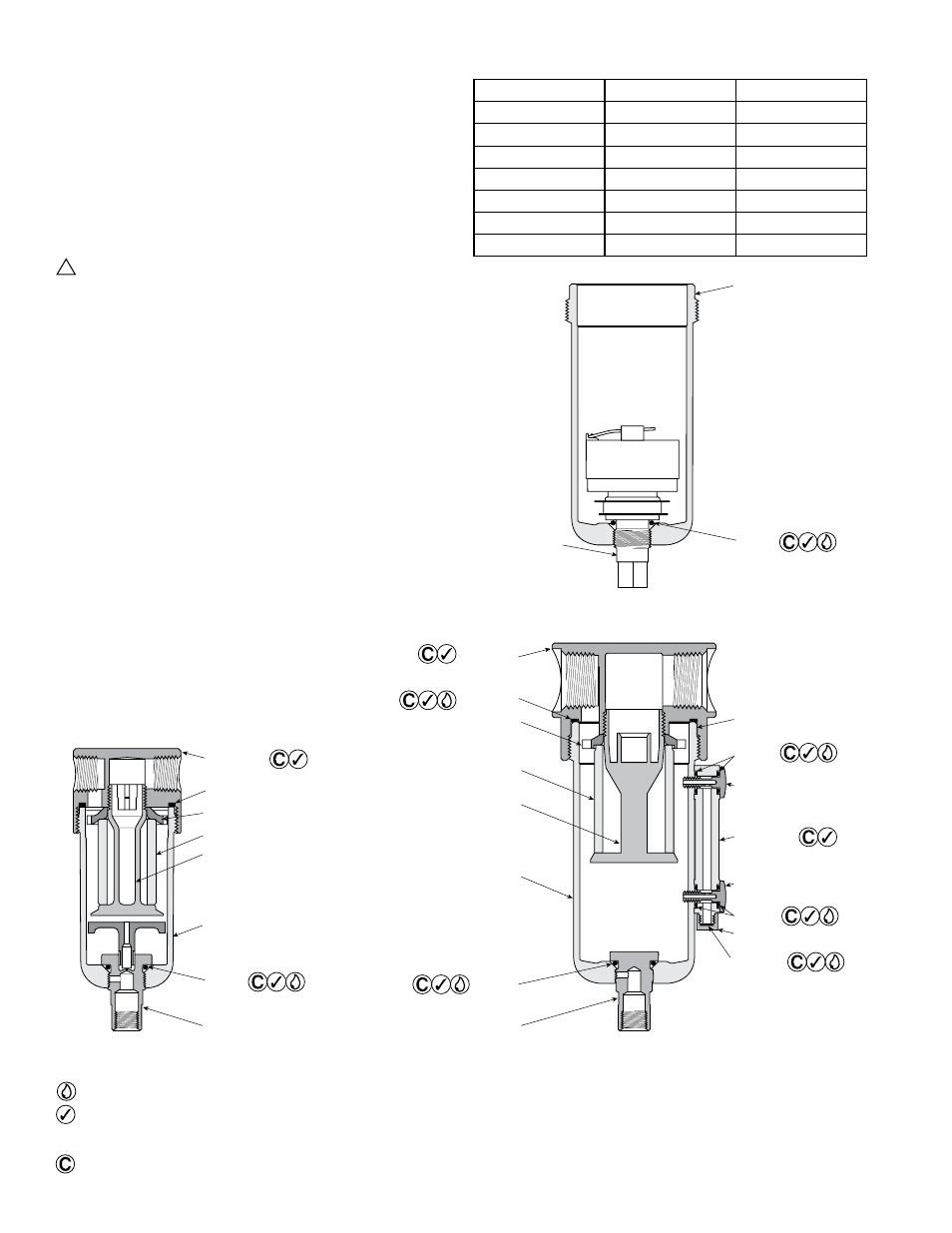

SF1 Particulate Filter SF2 Particulate Filter
with Sight Gauge
SF2 Metal Bowl
w/ Auto Drain
Lightly grease with provided lubricant.
Inspect for nicks, scratches, and surface imperfections.
If present, reduced service life is probable and future replacement
should be planned.
Clean with lint-free cloth.
Filter Holder
(Hand Tighten)
Element
Deflector
Deflector
O-Ring
Bowl Seal
Bowl
(Hand Tighten)
Filter Holder
(Hand Tighten)
Element
O-Ring
Bowl Seal
Manual Drain
(Finger Tighten)
Bowl
(Hand Tighten)
Filter Body
Filter Body
O-Ring
Auto Drain
(SF2 Only)
(Finger Tight)
O-Rings
Bowl
Hand Tight
O-Rings
Seal Cap
Finger Tight
Cap Seal
Screw
Torque .56 to 1.13 Nm
(5 to 10 in. lb.)
Screw
Torque .56 to 1.13 Nm
(5 to 10 in. lb.)
Sight Glass
Bowl
Hand Tight
Auto Pulse Drain
(Finger Tight)
