Wilkerson Electronic DPI for F28 - Manual (Page 2)

Electronic DPI 83-966-000
Kits Available
Item 1: Screws (2) for mounting Electronic DPI
Item 2: Electronic DPI with two Seals - Preset at 10 PSID
Item 3: DPI Adapter Plate
Wiring Code
Pin 1: Common
Pin 2: Normally Closed
Pin 3: Normally Open
Item 4: -007 O-rings (2)
Item 5: Screw (2) for mounting Adapter
Adjusting Screw.
Preset at 10 PSID.
1 turn is approx. 10 PSID.
Turning screw clockwise until
stopped is 20 PSID.
Cable Grip for
Cables 1/4" to 9/32"
Flow
2
3
1
Normally
Closed
Common
Normally
Open
Description M18 M28 F18 F28
Electronic DPI Conversion Kit GRP-96-823 GRP-96-823 GRP-96-823 GRP-96-823
Electronic DPI Replacement Kit GRP-96-824 GRP-96-824 GRP-96-824 GRP-96-824
Element Kits:
0.5 Micron (Coalescing)
MSP-96-647 MSP-96-649 — —
0.1 Micron (Coalescing) MTP-96-646 MTP-96-648 — —
Adsorber (Coalescing) MXP-96-650 MXP-96-651 — —-
5 Micron — — FRP-96-639 FRP-96-653
Bowl O-Ring (Nitrile) GRP-96-640 GRP-96-654 GRP-96-640 GRP-96-654
Bowl O-Ring (Fluorocarbon) GRP-96-754 GRP-96-755 GRP-96-754 GRP-96-755
Filter Retainer Element Baffle — — FRP-96-641 FRP-96-283
Manual Drain GRP-96-685 GRP-96-685 GRP-96-685 GRP-96-685
Manual Override Drain GRP-96-001 GRP-96-001 GRP-96-001 GRP-96-001
Bowl Kits:
Plastic Bowl / Guard Manual Drain
GRP-96-634 GRP-96-642 GRP-96-634 GRP-96-642
Metal Bowl / Sight Gage Manual Drain GRP-96-636 GRP-96-644 GRP-96-636 GRP-96-644
Plastic Bowl / Bowl Guard Automatic Drain GRP-96-635 GRP-96-643 GRP-96-635 GRP-96-643
Metal Bowl / Sight Gage Automatic Drain GRP-96-637 GRP-96-645 GRP-96-637 GRP-96-645
Plastic Bowl / Bowl Guard No Drain GRP-96-638 GRP-96-652 GRP-96-638 GRP-96-652
FLOW
mP m
FLOW FLOW FLOW
4
3
2
5
1
FLOW
mP m
FLOW FLOW FLOW
4
3
2
5
1
FLOW
mP
m
FLOW FLOW FLOW
4
3
2
5
1

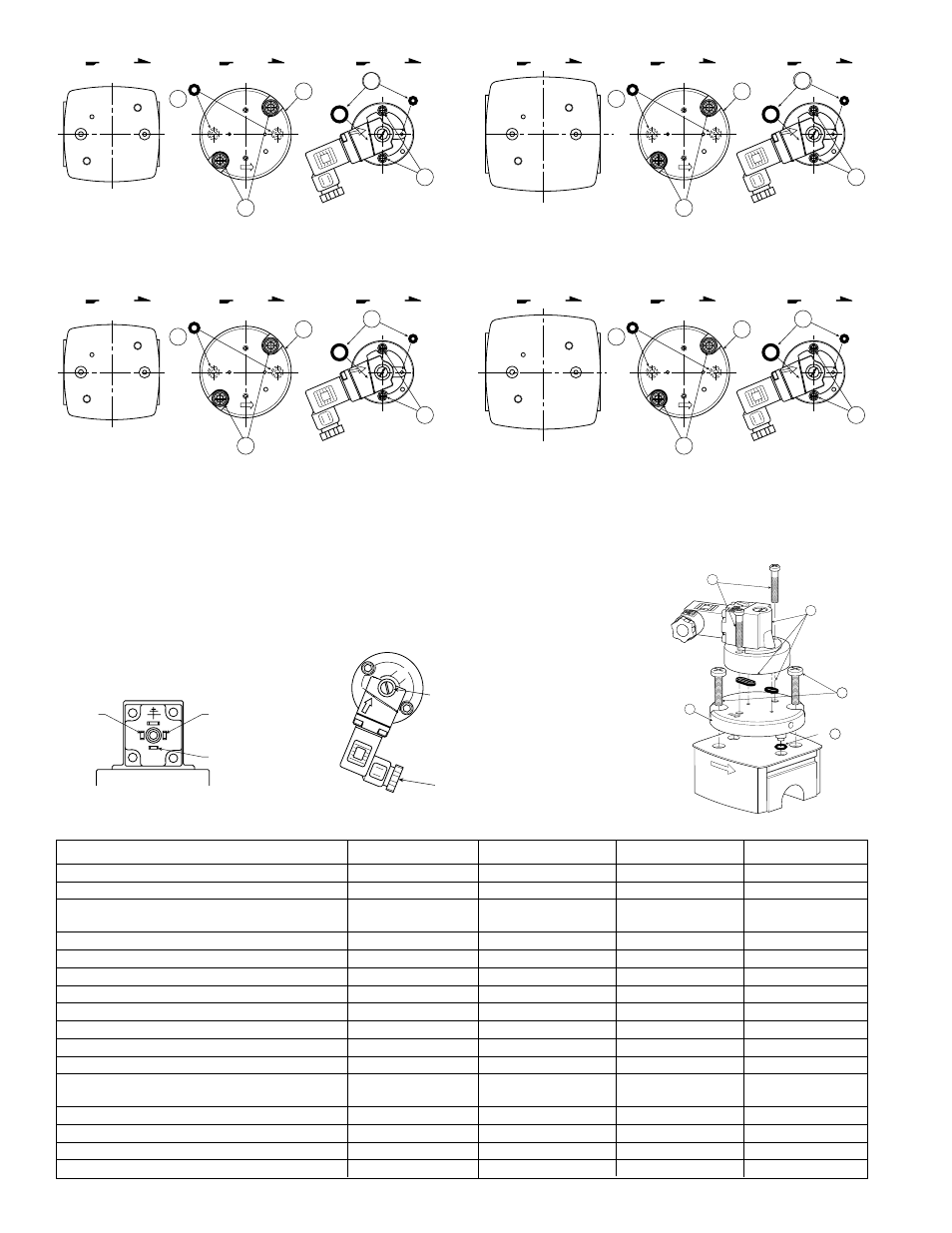

Orientation / Assembly for M18 Electronic DPI
FLOW
mP
m
FLOW FLOW FLOW
4
3
2
5
1
Orientation / Assembly for F18 Electronic DPI
Orientation / Assembly for M28 Electronic DPI
Orientation / Assembly for F28 Electronic DPI
1
2
5
3
4 2X
