F12 & M12 Electronic DPI 83-958-000
Kits Available
Description F12 M12
5 Micron Element* GRP-96-344 —
40 Micron Element* GRP-96-343 —
Absorber FRP-96-301 FRP-96-301
Coalescing Type “C” — GRP-96-300
Coalescing Type “B” — GRP-96-301
DPI Repair Kit FRP-96-300 FRP-96-300
Electronic DPI Kit FRP-96-302 FRP-96-302
*Element kits include body / bowl seal.
.5 to .6 Nm
(.37 to .44 lb ft)
Torque
.5 to .6 Nm
(.37 to .44 lb ft)
Torque
2
3
4
5
6
1
Flow
.5 to .6 Nm
(.37 to .44 lb ft)
Torque
.5 to .6 Nm
(.37 to .44 lb ft)
Torque
2
3
4
5
6
1
Flow
Wiring Code
Pin 1: Common
Pin 2: Normally Closed
Pin 3: Normally Open
Adjusting Screw.
Preset at 10 PSID.
1 turn is approx. 10 PSID.
Turning screw clockwise until
stopped is 20 PSID.
Cable Grip for
Cables 1/4" to 9/32"
Flow
2
3
1
Normally
Closed
Common
Normally
Open

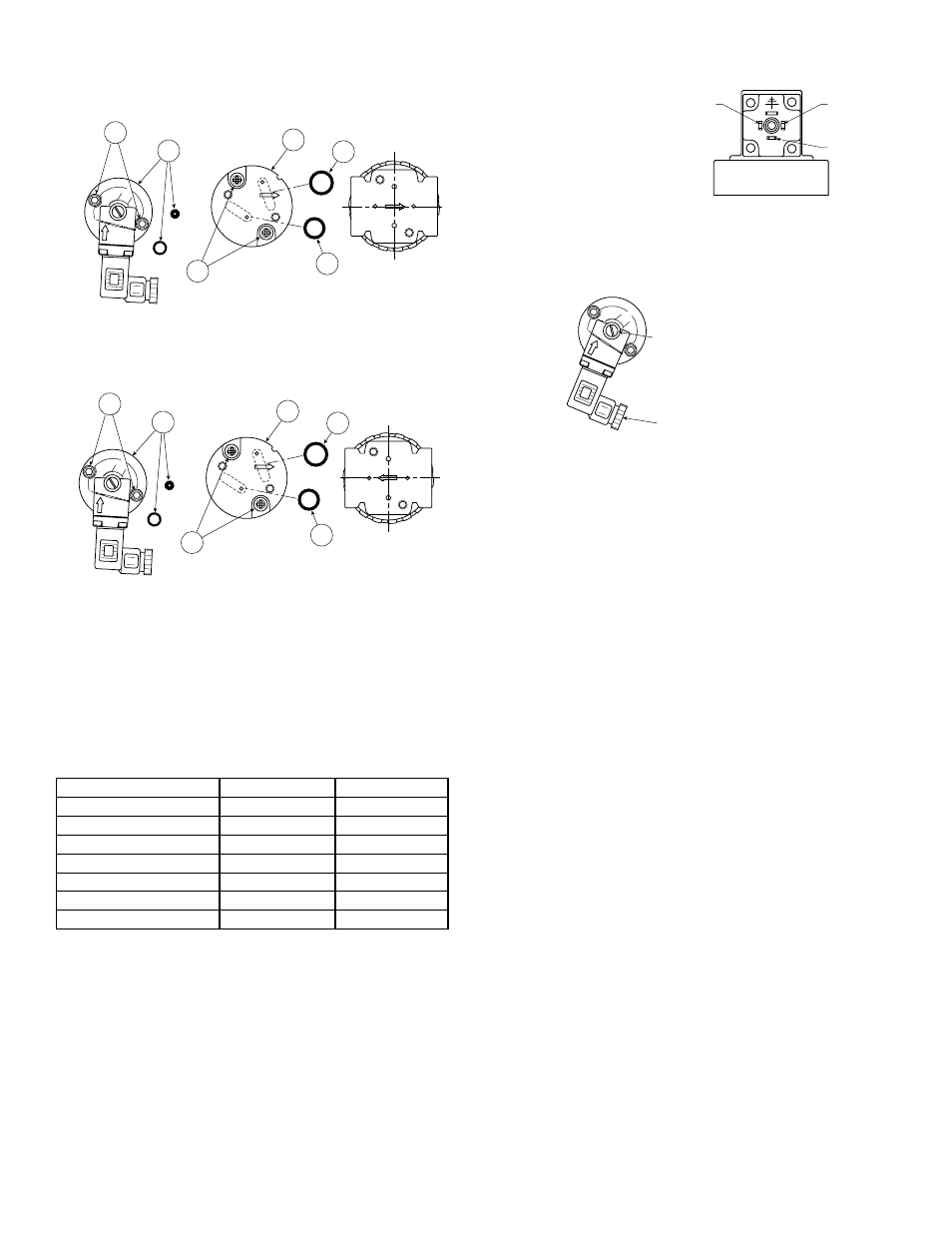

Orientation / Assembly for (M12) Electronic DPI
Orientation / Assembly for (F12) Electronic DPI
Item 1: Screws (2) for mounting Electronic DPI
Item 2: Electronic DPI with two seals - Preset at 10 PSID
Item 3: Adapter, F12/M12
Item 4: O-ring, large
Item 5: O-ring, small
Item 6: Screw (2) for mounting adapter
