required, utilizing either a recently cleaned
and inspected 6˝ masonry chimney or a 6˝ i.d.
manufactured chimney listed to UL 103 HT.
4. Use round 6˝ dia., minimum 24 MSG (mini-
mum standard gauge) black or 26 MSG blue
steel stove pipe to connect the stove to the
chimney. Do not use galvanized duct pipe.
Secure pipe sections with three (3) sheet metal
screws in each stove pipe and/or elbow joint to
firmly hold the pipe sections together. Screws
may be no more than a maximum of 3˝/76mm
apart. DO nOT COnneCT ThIs sTOVe
TO anY aIr DIsTrIBuTIOn Or DuCT
sYsTeM.
5. Recheck clearances from the stove,
connector stove pipe, and corner clearances
using the illustrations in figures 1–3 and
your local building codes or fire protection
ordinances.
nOTe: a wall FaCeD wITh DrYwall,
BrICk Or sTOne MusT Be COnsIDereD
a COMBusTIBle surFaCe.
lOCATINg STOvE continued…
CauTIOn: keeP FurnIshInGs anD OTher
COMBusTIBle MaTerIals awaY FOrM The
sTOVe.
nOTe: BeFOre FIrInG wOODsTOVe slIDe
FIreBrICks TOwarDs The rear sO nO
GaPs reMaIn BeTween BrICks.

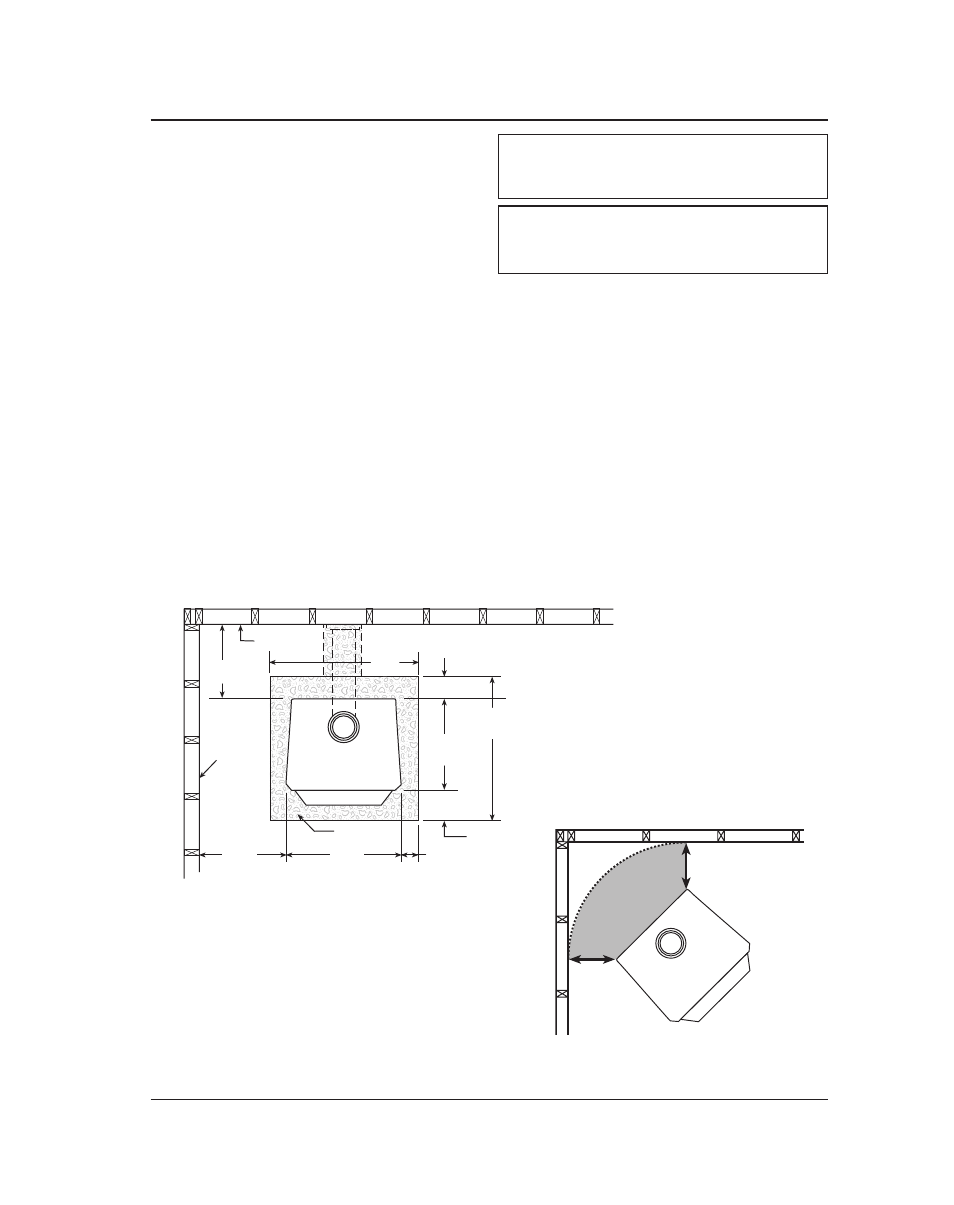

Fig. 2 – TOp VIEw Minimum Corner
Clearances from Combustible Surfaces
Fig. 1 – TOp VIEw Minimum Clearance
Dimensions from Combustible Surfaces
FLOOR
PROTECTOR
DASHED LINE SHOWS HORIZONTAL CHIMNEY CONNECTOR
AND ADDITIONAL FLOOR PROTECTOR REQUIRED EXTENDING
BENEATH AND 2” BEYOND EACH SIDE.
COMBUSTIBLE CONSTRUCTION IN ACCORDANCE WITH NFPA 211
BACKWALL
SIDEWALL
8"min.
17"
48"
16"min.
8"min. 24"
28"
min.
33"min
TOP VIEW
40"
6. DO nOT InsTall ThIs sTOVe In a MOBIle
hOMe, ManuFaCTureD hOMe, TenT Or
TraIler – NO EXCEPTIONS! (HUD FeDeral
StanDarD: 24 CFr CH.xx)
7. The clearances provided are minimum
dimensions determined by the manufacturer’s
testing laboratory shown on the front cover.
Installation of this stove must comply with the
latest edition of NFPA 211 for reduced clear-
ances and/or your local building code rulings.
Use whichever minimum dimensions are
LARGEST.
8. This stove meets U.S. Test Standard:
UL 1482-1996.
28"
28"
CORNER CLEARANCES
