mAINTENANCE

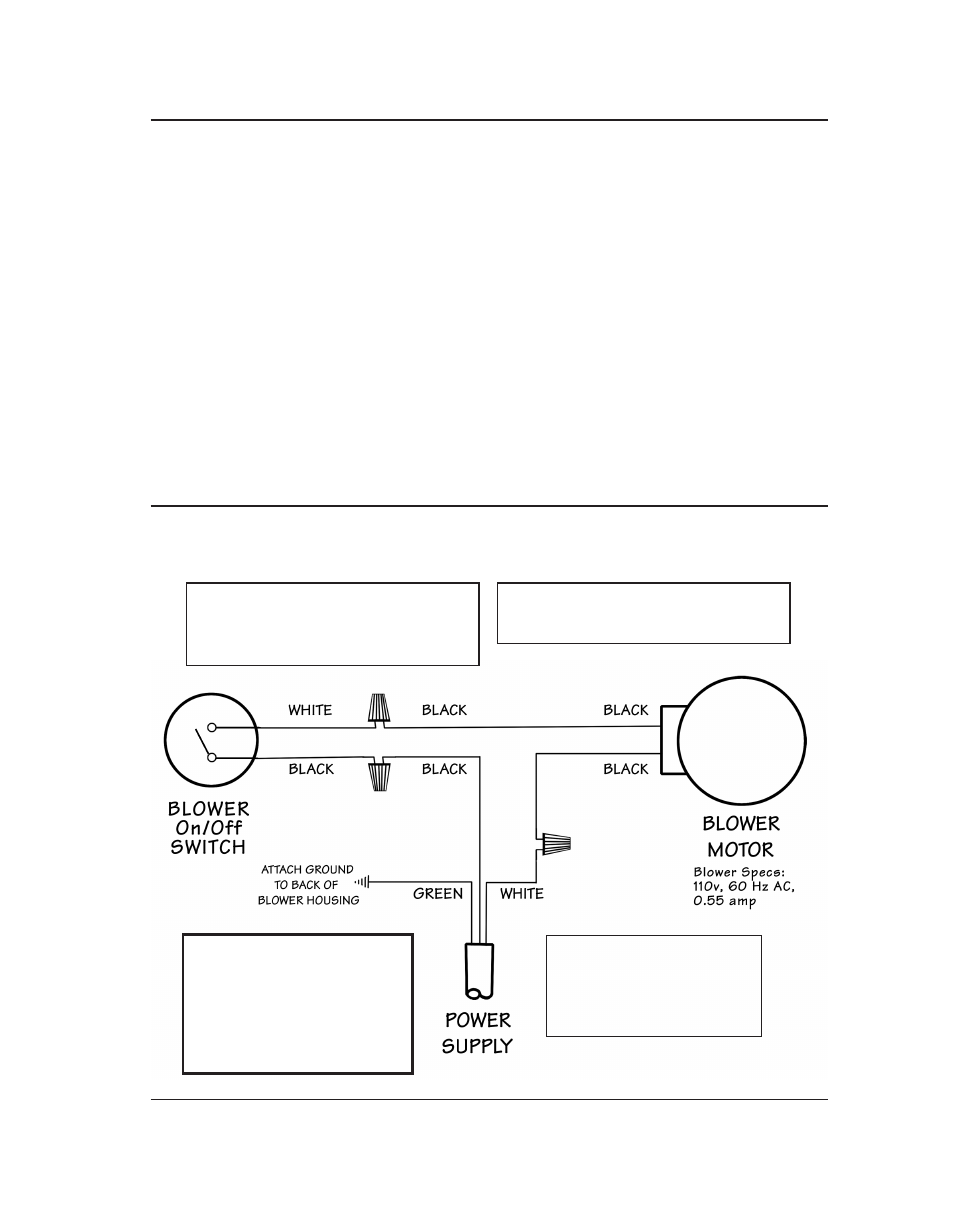

WIRINg DIAgRAm - OPTIONAl blOWER
When ordering missing or replacement parts, always give the model Number of the stove,
Part Number, and Part Description. Use the illustrations and part lists provided to identify parts.
nOTICe: all POwer COrDs
anD eleCTrICal aPPlI-
anCes anD/Or asseMBlIes
MusT Be kePT OuTsIDe OF
The ClearanCe DIMen-
sIOns shOwn In ThIs Man-
ual FOr COMBusTIBle Ma-
TerIals.
gaskets periodically to ensure proper seal; if gas-
kets become frayed or worn, replace immediately.
PrOCeDure:
1. Ensure appliance is not in operation and is
thoroughly cooled.
2. Remove old door gasket and clean channel.
3. Using an approved, high temperature gasket
cement, apply a thin coat in bottom of channel.
4. Starting at hinge side of door, work gasket into
channel around door unit, end butt and trim to
length.
5. Close door and allow three to four hours for
cement to set before firing appliance.
BlOwer MaInTenanCe
The optional blower is maintenance free other than
cleaning. Lightly vacuum motor and air inlet
to keep free of dust and dirt.
nOTICe: anY rePlaCe-
MenT wIrInG MusT haVe
e q u I Va l e n T I n s u l a -
TIOn anD TeMPeraTure
raTInG (105°C).
CauTIOn: MOVInG ParTs Can Cause
InjurY. DO nOT OPeraTe wITh COVer
reMOVeD.
DanGer: shOCk hazarD. DIsCOnneCT
POwer sOurCe BeFOre InsTallaTIOn
anD wheneVer serVICInG BlOwer
asseMBlY.
