ORDERINg PARTS - vg450El FRONTIERSmAN STOvE
When ordering missing or replacement parts, always give the model Number of the stove, Part
Number, and Part Description. Use the illustrations and part lists provided to identify parts.

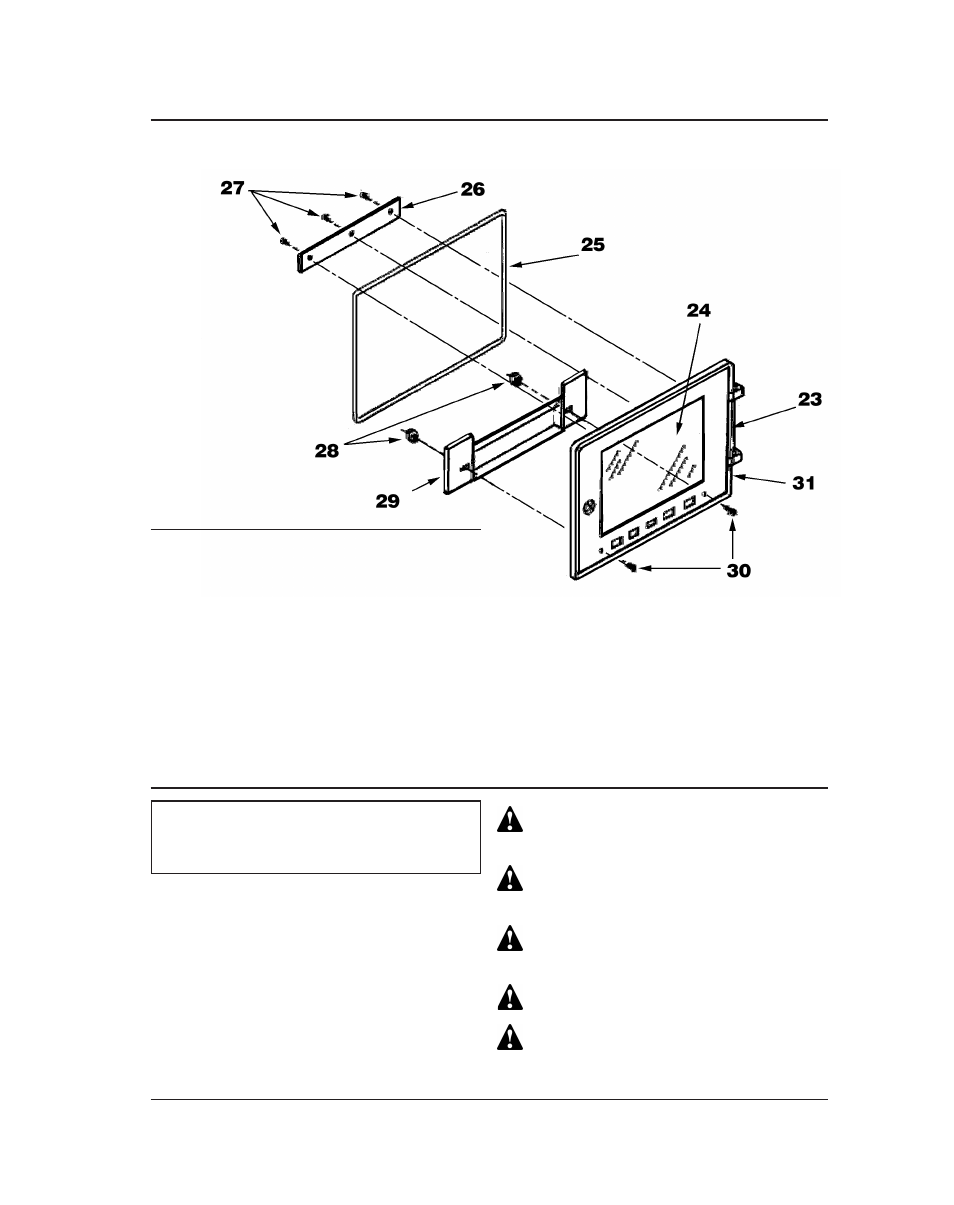

Part no. Description qty.
23 Door Frame ................................................... 1
24 High-temp Glass .......................................... 1
25 Glass Gasket, 5/8” dia. Fiberglass ................ 1
26 Glass retainer .............................................. 1
27 retainer screws ........................................... 3
28 nuts .............................................................. 2
29
air Wash Deflector ........................................ 1
30 Bolts .............................................................. 2
31
Complete Door assembly (less handle) ....... 1
glass replacement instructions for model vg450Elg
CauTIOn: when reMOVInG BrOken
Glass, wear ThICk GlOVes anD saFeTY
Glasses. keeP ChIlDren awaY anD
DIsCarD BrOken Glass saFelY.
1. Be sure stove has cooled before beginning.
2. Using a screwdriver, remove three screws (#27)
and glass retainer (#26).
3. Remove two nuts (#28) and air wash deflector
(#29).
4. Remove glass (#24). Replace with 8”x10”
high-temperature ceramic glass only.
5. Re-install glass reversing steps 1-3. When re-
placing broken glass, remove gasket (#25) from
broken glass and replace around new glass.
warnInG: Do not use substitute materials.
Replace only with original manufacturer
components.
warnInG: Do not slam door or strike glass.
Slamming door or striking glass may cause
glass breakage.
warnInG: Do not use abrasive cleaners on
glass surface. Abrasives may damage the
glass and breakage may occur when heated.
CauTIOn: Do not build fire directly against
glass.
CauTIOn: Do not operate stove with
broken glass.
