SED-WIN/SED-DOR
Wireless Door/Window Switch 6
Viconics Technologies Inc. | 9245 Langelier Blvd. | St.-Leonard | Quebec | Canada | H1P 3K9 | Tel: (514) 321-5660 | Fax: (514) 321-4150
028-0415-01 www.viconics.com | [email protected] November 2014
Coordinator Channel, 15 PAN ID: 250
VT8000 Controller
Channel, 15 PAN ID: 250 VT8000 Controller
Channel, 15 PAN ID: 250 VT8000 Controller
Channel, 15 PAN ID: 250
Window or Door Switch Window or Door Switch Window or Door Switch
PAN ID used with a Range of 1 to 500 for Networked Systems
In this application, any controller(s) are routers to the system. The MPM is the coordinator to the
system as the MPM is the network master for
any controller(s) reporting to them.
• Wireless controller factory default Channel and PAN ID = controller(s) offline.
• MPM is network coordinator.
• VT8000/7000 controllers act as a router.
• Range of PAN ID on all controllers use 1 - 500. Reserved for networked system operation.
Notes:
• Each controller uses same PAN ID and Channel as MPM coordinator.
• MPM supports network integration for required GUI/System/Status objects.
• Up to 20 switches can be linked to each VT8000/7000 Controller.

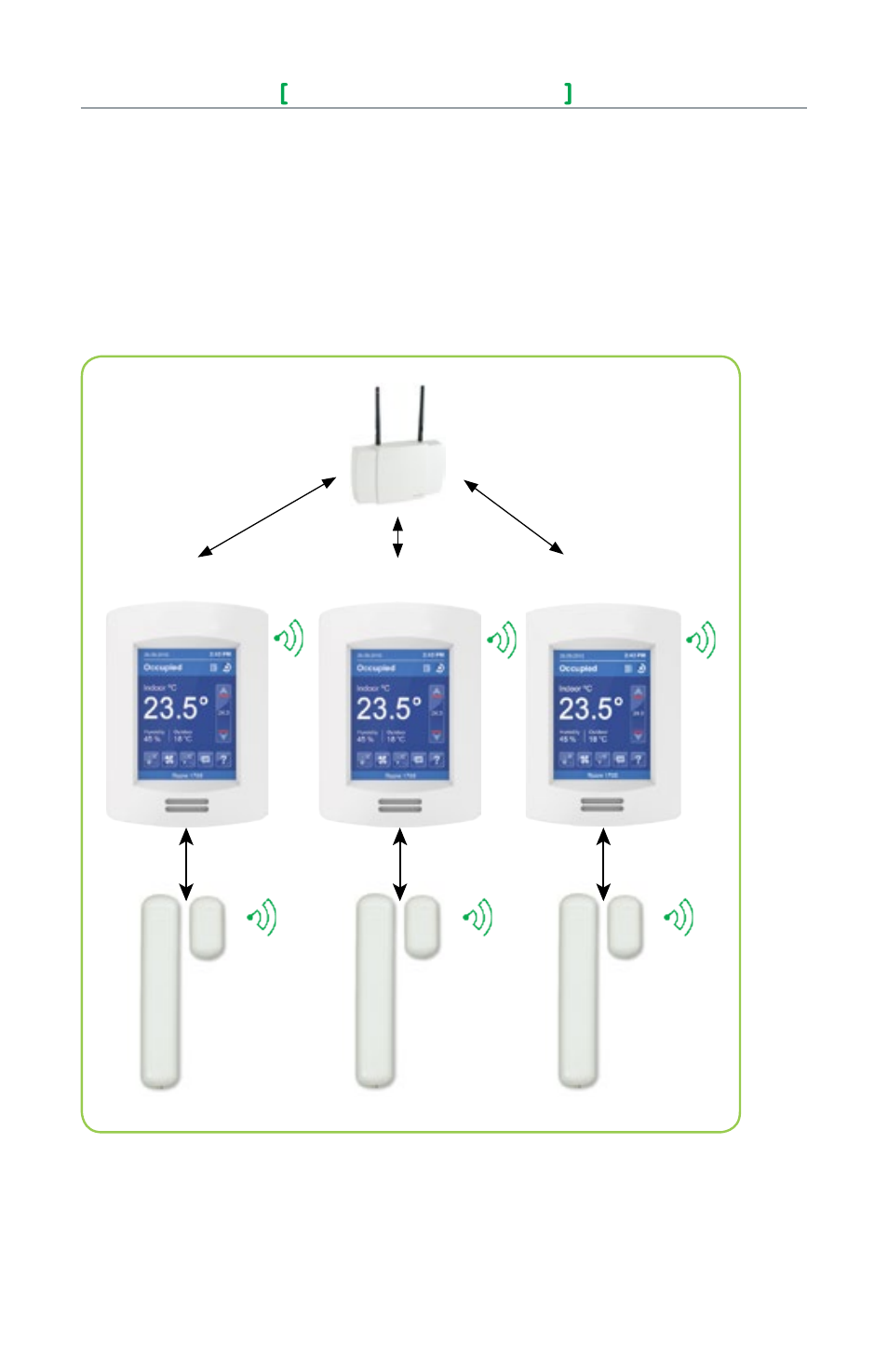

Figure-9 MPM and VT8000 Networked System
