Connection – Toa C-CV854D-3 CE User Manual
Page 11
11

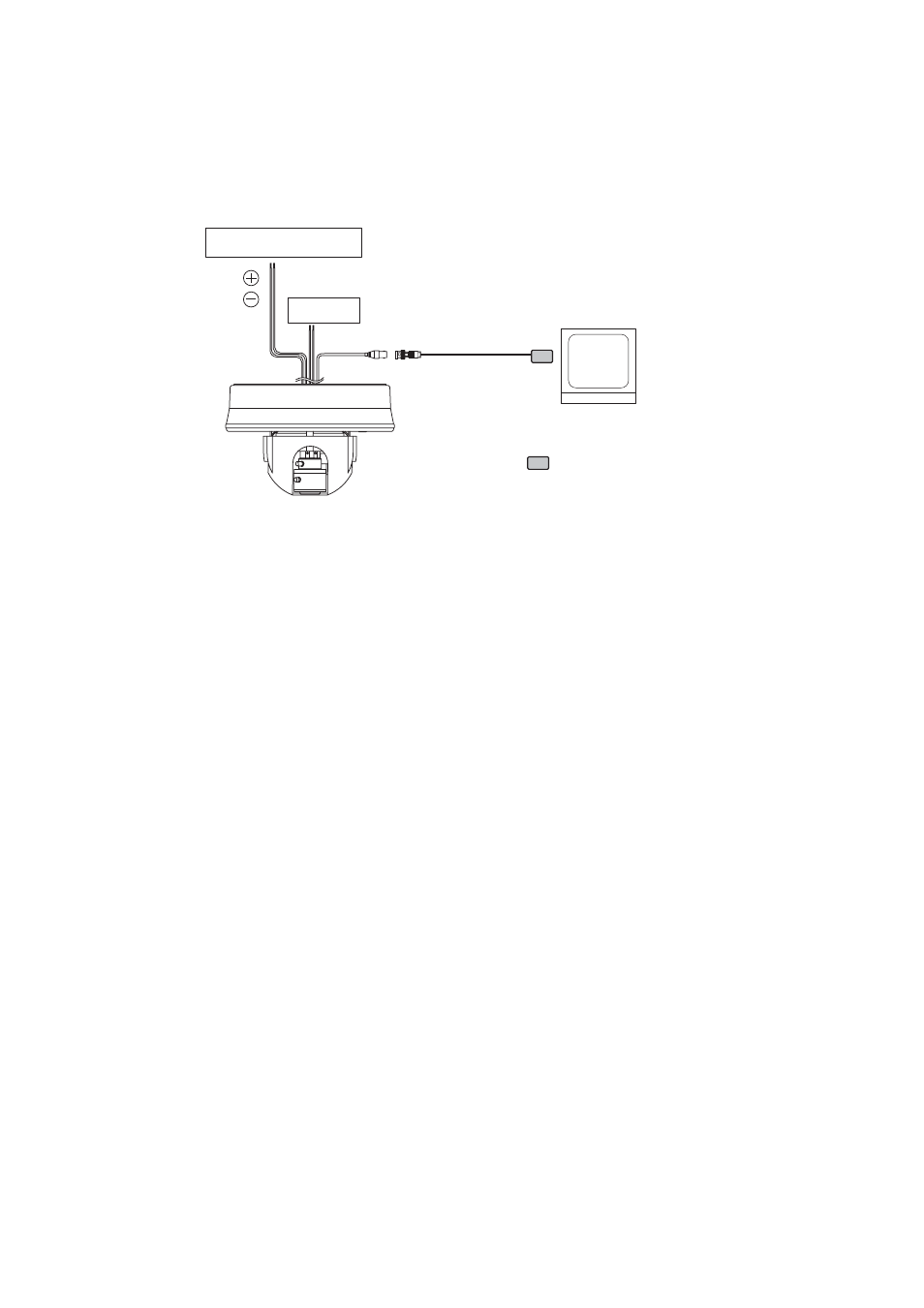

Heater power input
The camera power input
24 V AC or 12 V DC
Video output
Video input
Monitor
: BNC plug
Use the external power supply unit of the following rating when
the camera is operated on 12 V DC.
12 V DC, over 1.0 A
24 V AC
Red :
Black :
6. CONNECTION
Note: If the Video output is not terminated at 75Ω, camera images are not properly displayed. Make sure that
the output has been terminated at 75Ω at the connected monitor or switcher.
