5.3. Attaching a Dome Cover
1. After camera’s angle of view and focus adjustment completion, attach the inner cover.
2. Attach the dome cover.
Check to be sure that the safety wire is not pinched between the dome cover and case. Dustproof and
water-resistance features could be adversely affected.
1-2. After attaching the inner cover, check to be sure that inner cover is securely fitted to the camera unit by
pulling down the sections indicated by arrows tightly.

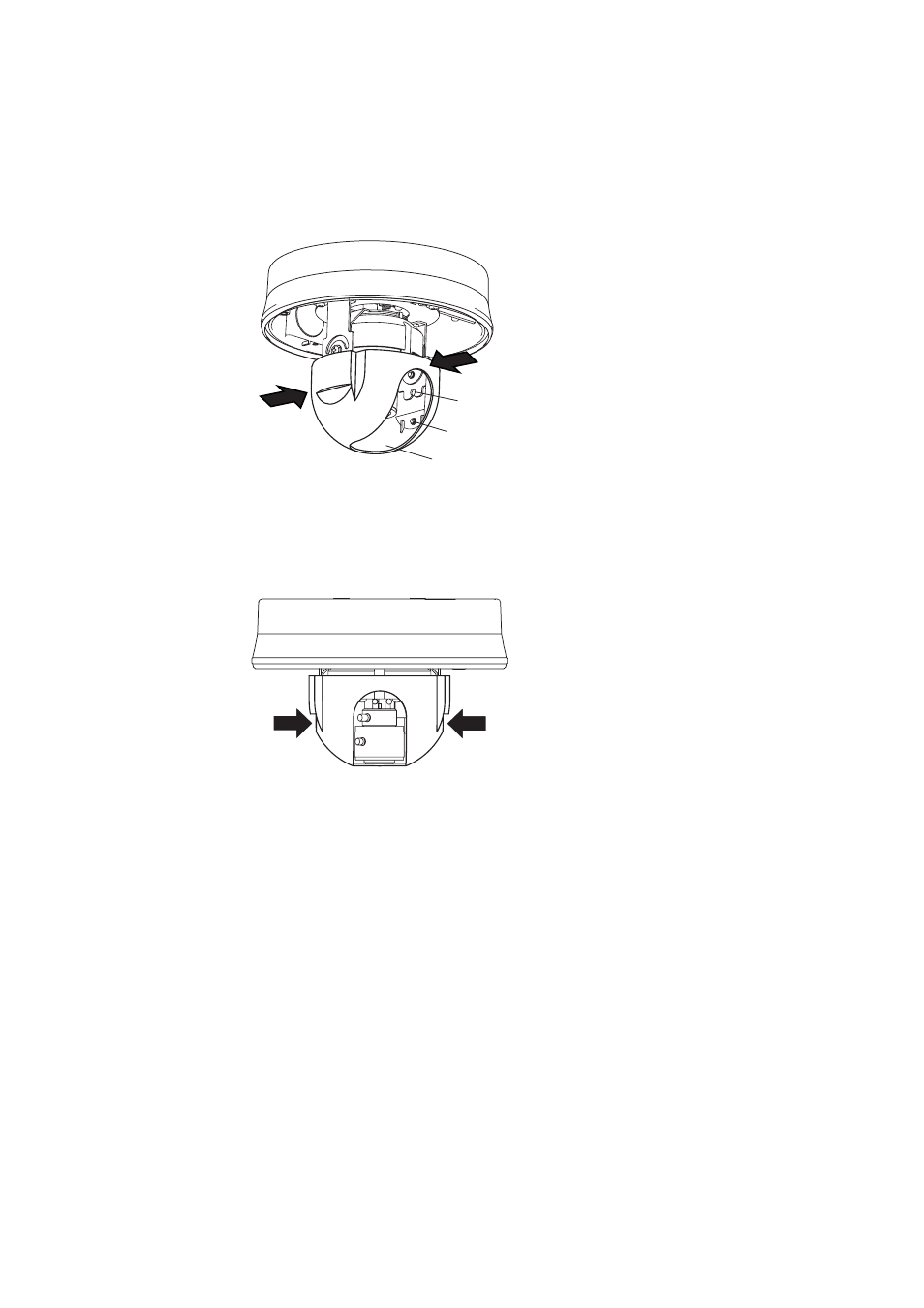

1-1. Put the inner cover in the way that the lens comes to the opening slit of the inner cover. Fit one emboss
of the inner cover at a time in the cover-mounting hole while pushing two of the sections indicated by
arrows.
Cover mounting hole
Embossed section of the inner cover
Push
Push
Opening slit
