• Do not install the speaker face-up from a horizontal plane nor in such a way that the paper cone is exposed
to direct sunlight.
If water accumulates on the paper cone, or ultraviolet rays are radiated on it, this may cause the paper cone
to deteriorate, leading to speaker malfunction.
5. INSTALLATION PRECAUTION
• Be sure that the bolt projection length from wall surface is less than 15 mm (0.59").
If the length is increased beyond 15 mm (0.59"), the bolt touches the speaker's terminal cover, causing the
speaker mounting angle to be limited.
Within 90°
Less than 15 mm (0.59")
Step 7. Securely tighten the cable glands.
Note
If loosely tightened, water or moisture may get inside the terminal cover.
Screw Cable glands
Screw
Terminal cover
6
7
Inside view of the Terminal cover
Waterproof gasket
Screw
Screw
Screw
Terminal cover
Cable gland
Screw
6

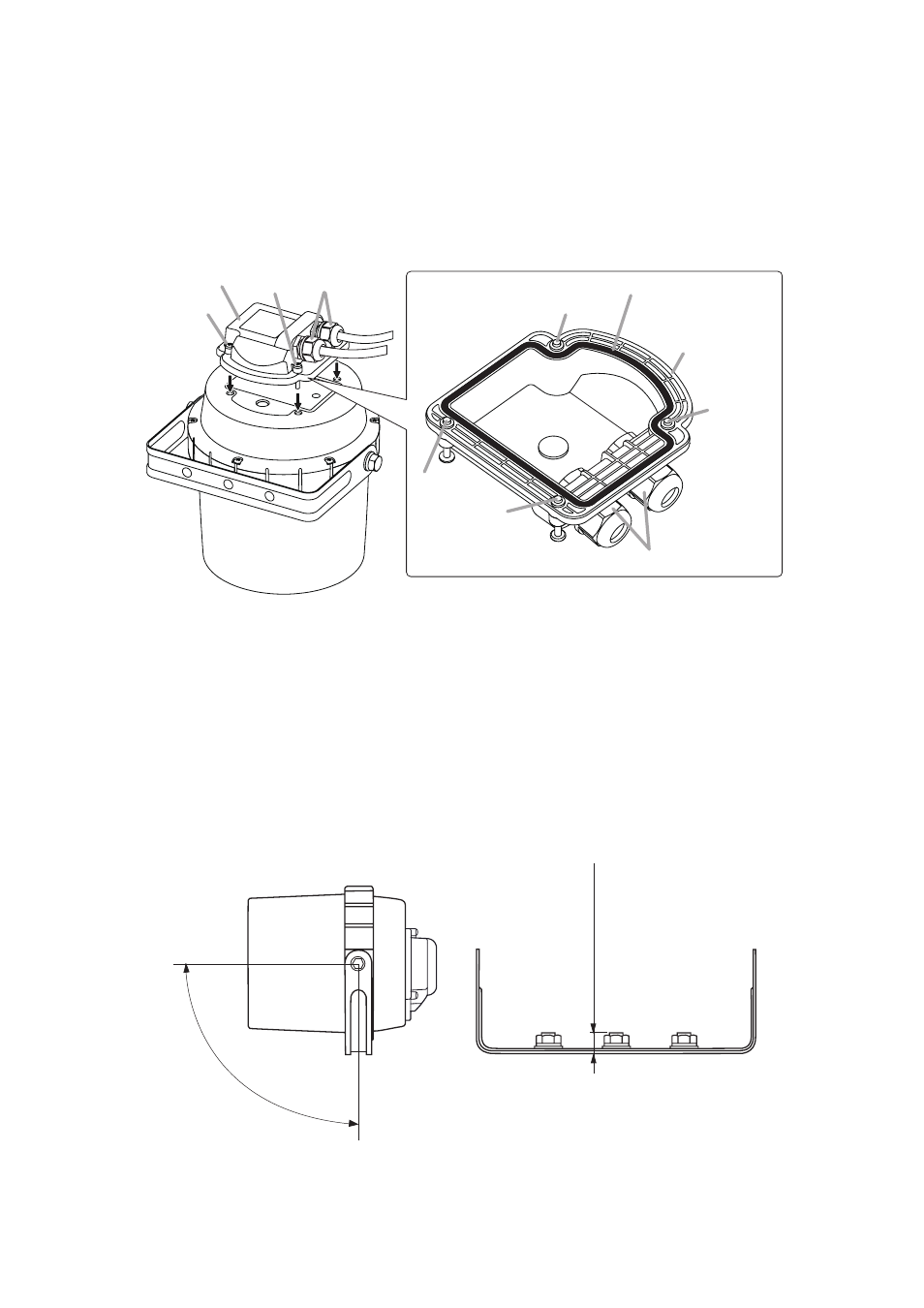

Step 6. Attach the terminal cover.
Secure the terminal cover using the 4 supplied screws.
In this case, take care not to pinch the wiring, and check that the waterproof gasket is secured into
place.
Note
If wiring or the waterproof gasket is pinched between the terminal cover and the unit case, this causes
water or moisture to get inside the terminal cover.
