10

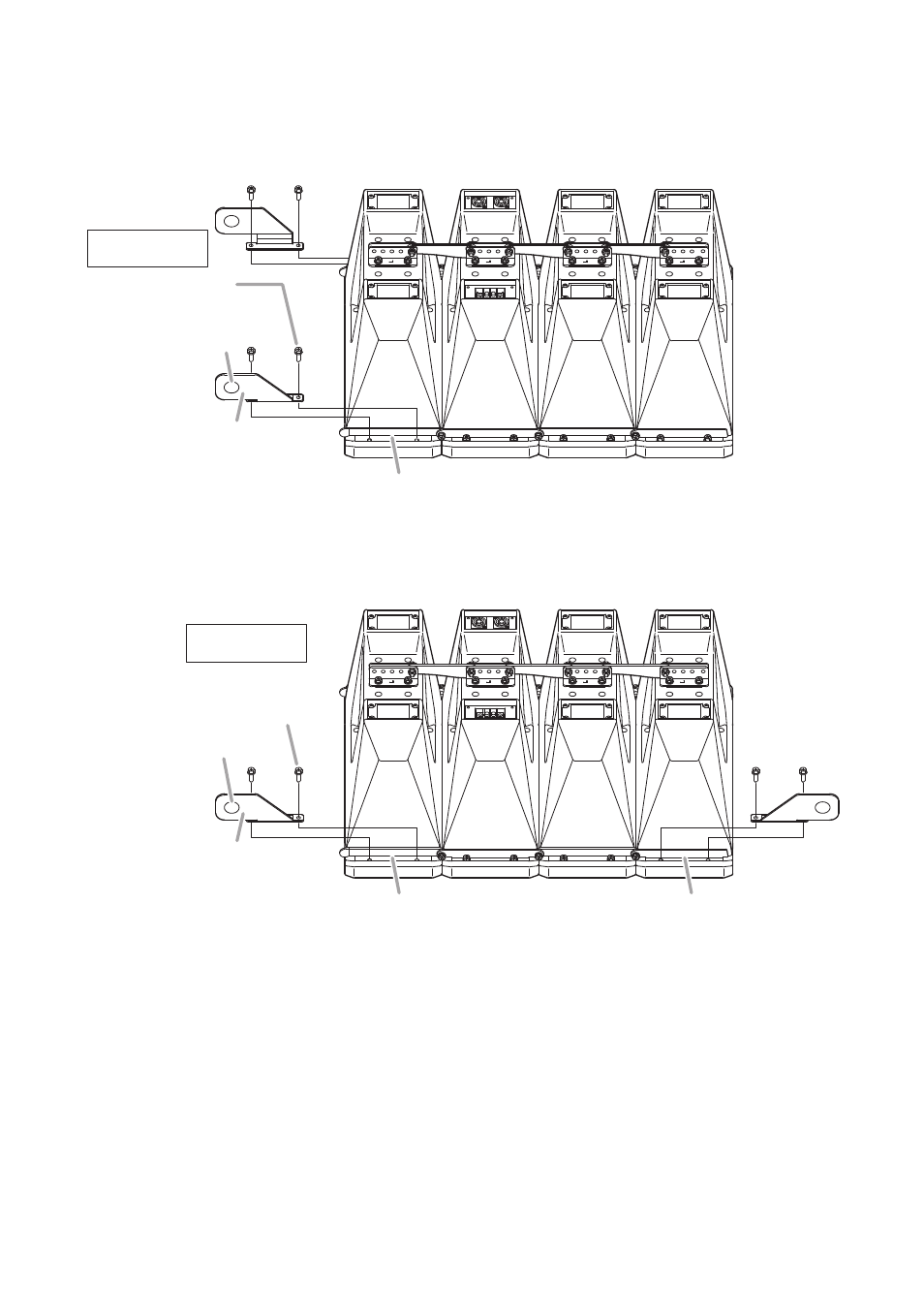

Step 2. Using the supplied bolts, tighten the suspension brackets together with the side angle plates.
Attach the brackets with the suspension holes facing outward.
Note
Do not use the bolts detached in Step 1.
[Vertical suspension]
Suspension bracket
(accessory)
Suspension bracket
(accessory)
Side angle plate
Side angle plate Side angle plate
Suspension hole
Suspension hole
Hex head bolt M6 x 20
(with spring and plain
washers, accessory)
Hex head bolt M6 x 20
(with spring and plain
washers, accessory)
Tightening torque:
3 N·m
Tightening torque:
3 N·m
[Horizontal suspension]
Note
Suspension bracket arrangement differs when two joined speaker systems are suspended horizontally.
For details, refer to the installation manual supplied with the optional HY-CN7 Series Speaker
Connection Bracket.
