Page 14

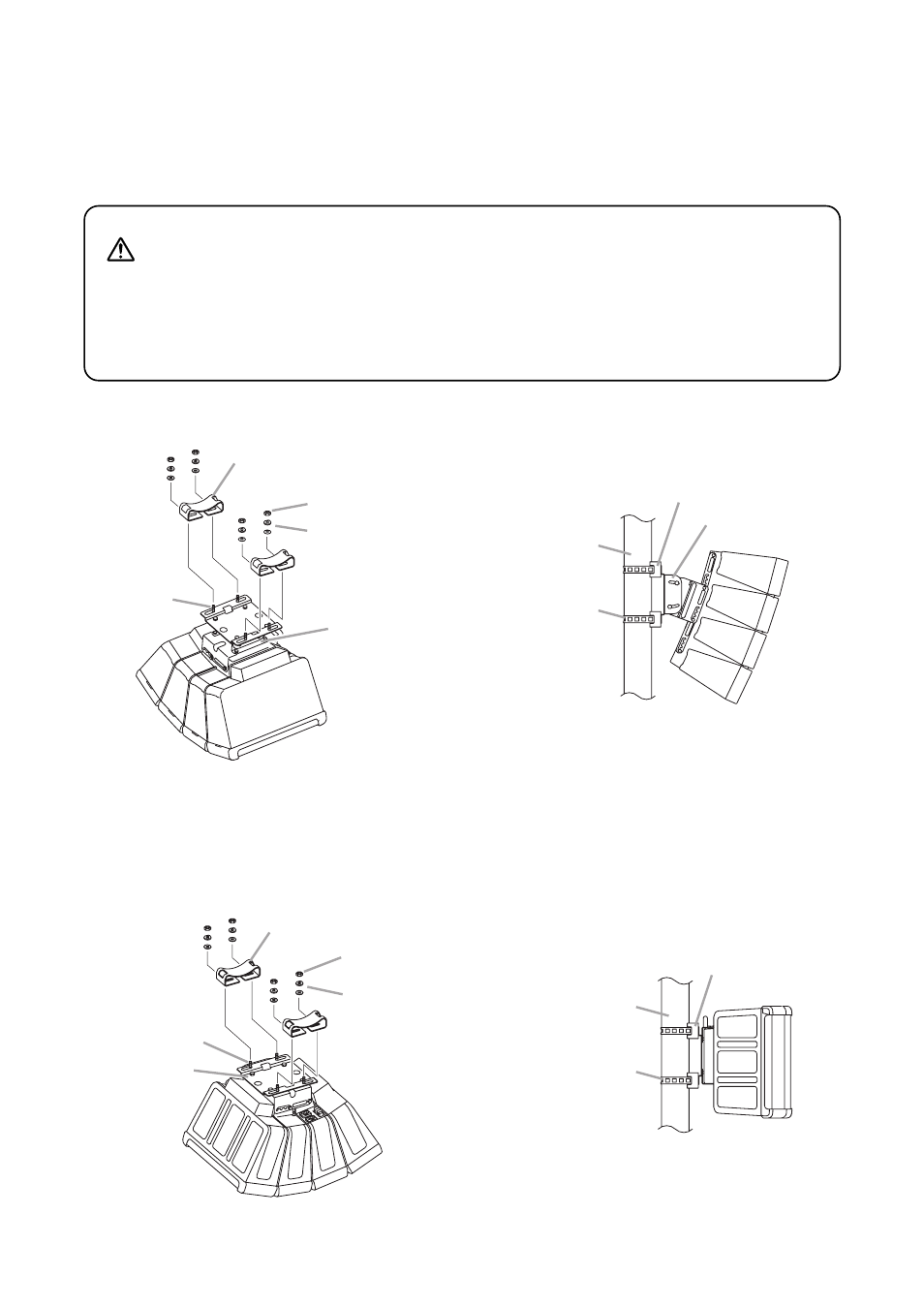

12. MOUNTING ON A POLE

The speaker can be mounted on a pole using the optional SP-131 Speaker Mounting Bracket in conjunction
with the YS-60B Mounting Band and HY-WM1WP Speaker Mounting Bracket. Before installing the SP-131 on
a pole, attach it to the rear plate of the speaker system.
For the mounting procedures on a pole, refer to the instruction manuals attached to the SP-131 and YS-60B.

When installing the speaker, follow the precautions below. Doing
otherwise may result in the speaker falling down, causing personal injury.
• The SP-131 mounting hardware is comprised of 2 brackets. Be sure to

use both brackets and 2 mounting bands. Securely tighten the bands,
making sure that they firmly hold the brackets.

• Take measures to prevent the bolts or nuts from unscrewing or

loosening.

WARNING

12.1. Vertical Speaker Mounting

SP-131 Speaker Mounting Bracket (optional)

Washer*

* Supplied with the SP-131

Nut*

Bolt*

HY-WM1WP Speaker
Mounting Bracket (optional)

SP-131

HY-WM1WP

YS-60B

Pole

[Example of pole mounting]

For the mounting procedures, refer to the instruction
manual attached to the HY-WM1WP.

Note
Install the speaker so that all speaker modules face
downward from the horizontal axis. Doing otherwise
could adversely affect the speaker's weather
resistance and possibly lead to malfunction or failure.

12.2. Horizontal Speaker Mounting
