8

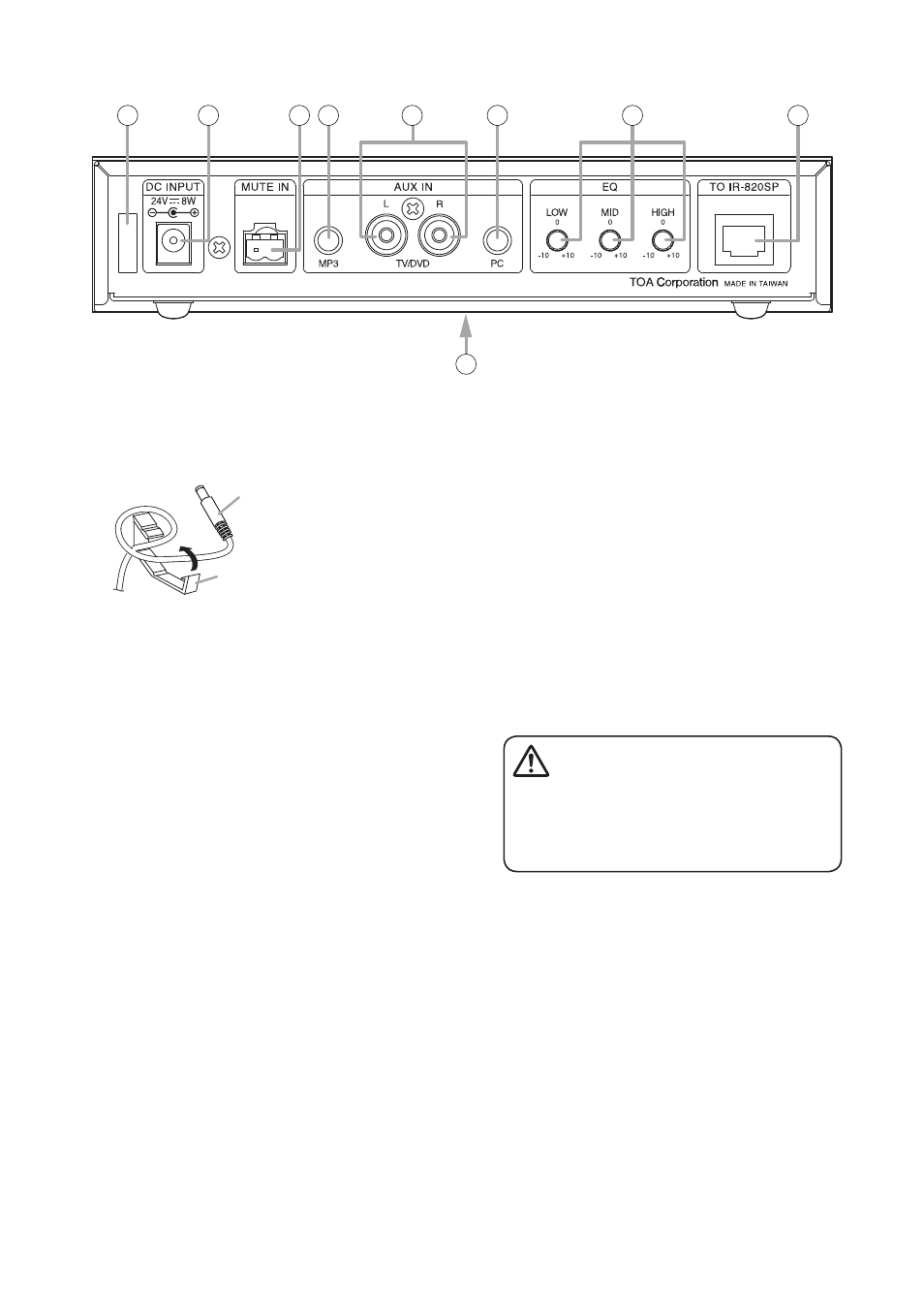

[Rear]
10. Cable clip
Run the AC adapter cable through this clip to
prevent its plug from being removed.
Cable clip
AC adapter plug
11. dC inlet terminal
Connect the supplied AC adapter.
12. Mute input terminal
Mutes the infrared microphone system when 25
V line signal from the telephone paging comes in.
13. MP3 input terminal
–10 dB*, 10 kΩ, unbalanced, stereo mini jack.
Accepts MP3 player output signals.
14. TV/dVd input terminal
–10 dB*, 10 kΩ, unbalanced, RCA jacks.
Accepts TV or DVD output signals.
15. PC input terminal
–10 dB*, 10 kΩ, unbalanced, stereo mini jack.
Accepts PC audio output signals.
16. Equalizer controls
Adjust low (bass), middle, and high (treble)
frequency response.
Rotate each knob clockwise to increase and
counterclockwise to decrease low, middle, or high
frequency output.
17. IR-820SP connection terminal
Connect this terminal to the IR-820SP Infrared
Wireless Speaker using a Category 5 cable
(straight type).
Notes
• Use a Category 5 plenum cable (straight type)
when routing the cable in locations where
plenum-rated cable is required.
• Cross type cables cannot be used.
To avoid damage to this tuner and/or connected
equipment:
• Never connect this terminal to a PC or LAN.
• Never short-circuit this terminal to ground.
18. Marking Plate
Shows the Manufacturer's name, Model name,
and Electrical rating.
* 0 dB = 1 V
DC24V
10 11 12 13 14 15 16 17
18
(Bottom Panel)
CAUTION
