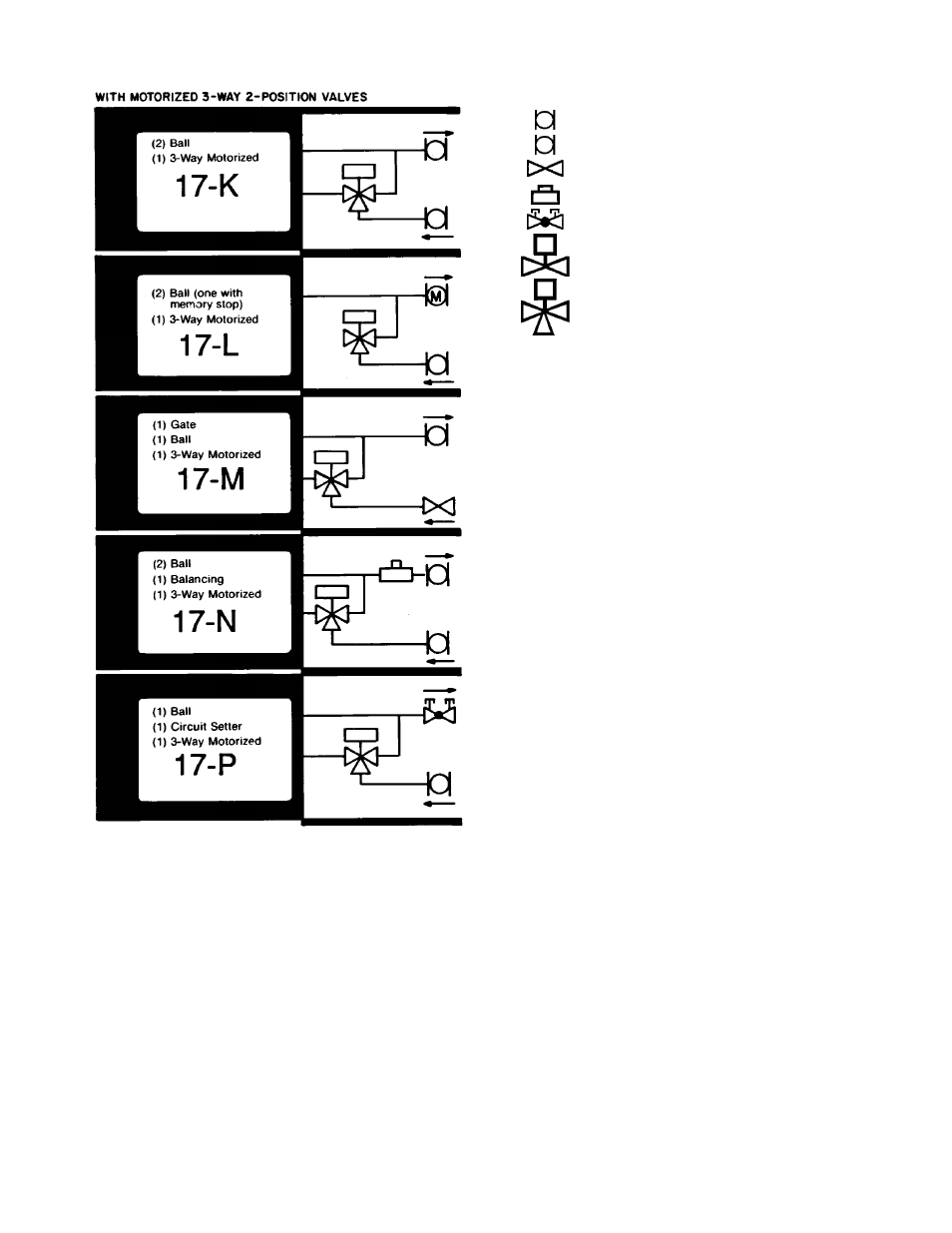

LEGEND
— Ball Valve
— Ball Valve with Memory Stop
— Gate Shut Off Valve
— Balancing Valve
— Circuit Setter
— Motorized 2-Way Valve
— Motorized 3-Way Valve
* When aquastat is used for automatic changeover, bypass is re-
quired as indicated by dashed line.
NOTES:
1. Packages factory furnished and installed.
2. Valves are
5 ⁄
8
-in. ODS unless otherwise specified.
3. If an automatic flow control valve is added, it will be located on
supply line between shutoff valve and coil (or motorized control
valve, if supplied).
4. Packages are listed on current price pages.
