Parts and Controls
The user should become familiar with the dry-well calibrator and its parts.
5.1
Top Panel (Lid Open)
Power Switch - The power switch is located on the power entry module
(PEM). The PEM also houses the fuse.
Power Cord - The removable power cord inlet plugs into an IEC grounded
socket on the PEM.
Insert Storage - Four inserts may be stored here.

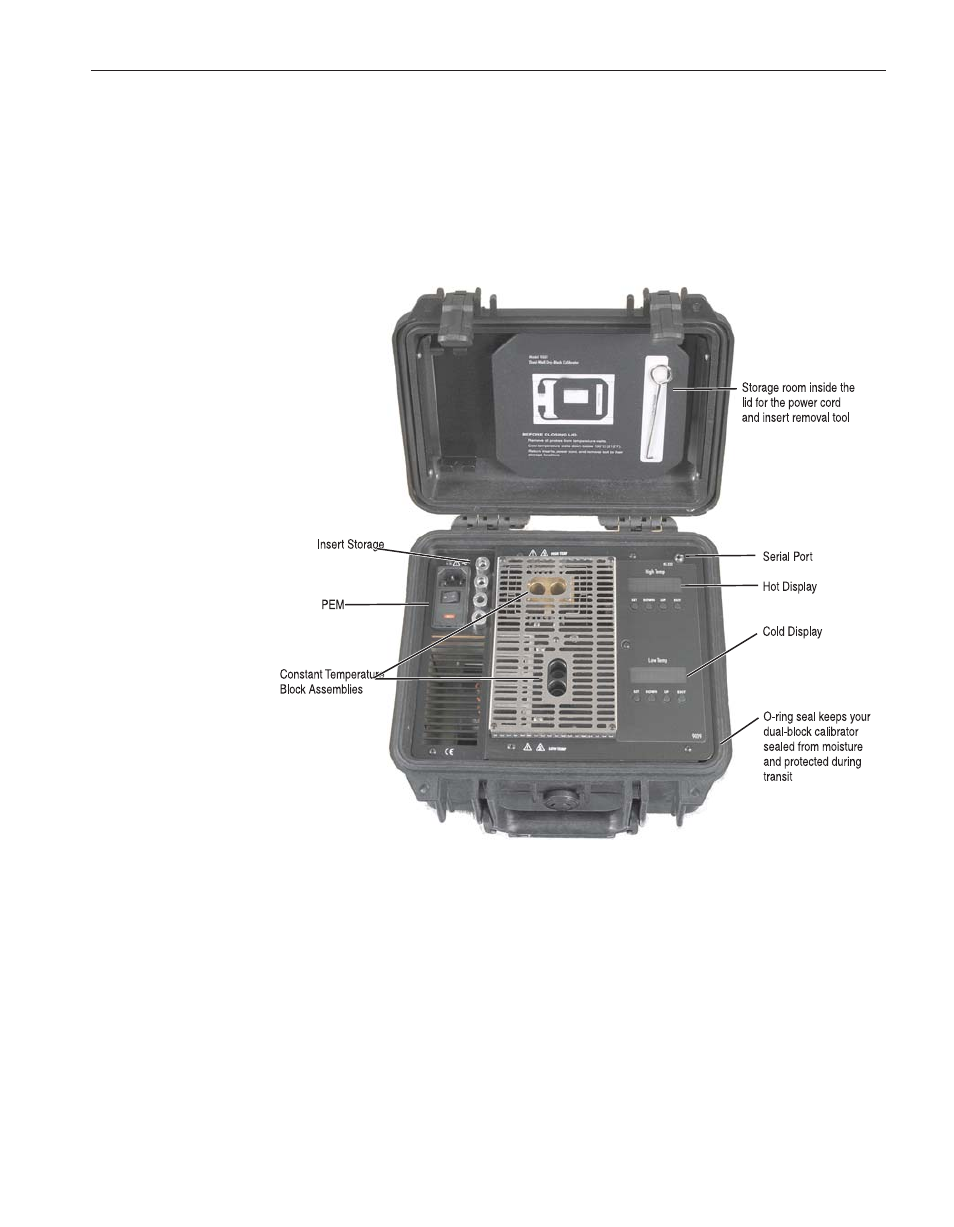

Constant Temperature Block Assembly - Calibrate two sensors at once or use
one well for a reference thermometer. See Section 5.2 for additional details.
