Part names and functions – ThermoWorks TR-72-UI 2 CHANNEL LOGGERS WITH USB User Manual
Page 8
4
5
【
TR-72U】
Thermo Recorder TR-72U × 1 unit
T&D Recorder for Windows
Software CD-ROM × 1
AA Alkaline Battery
(
LR6) × 1
USB Communication Cable
US-15C × 1
Temperature Sensor
TR-3100 × 1
Hardware User’s Manual (Warranty) × 1
Software User’s Manual × 1

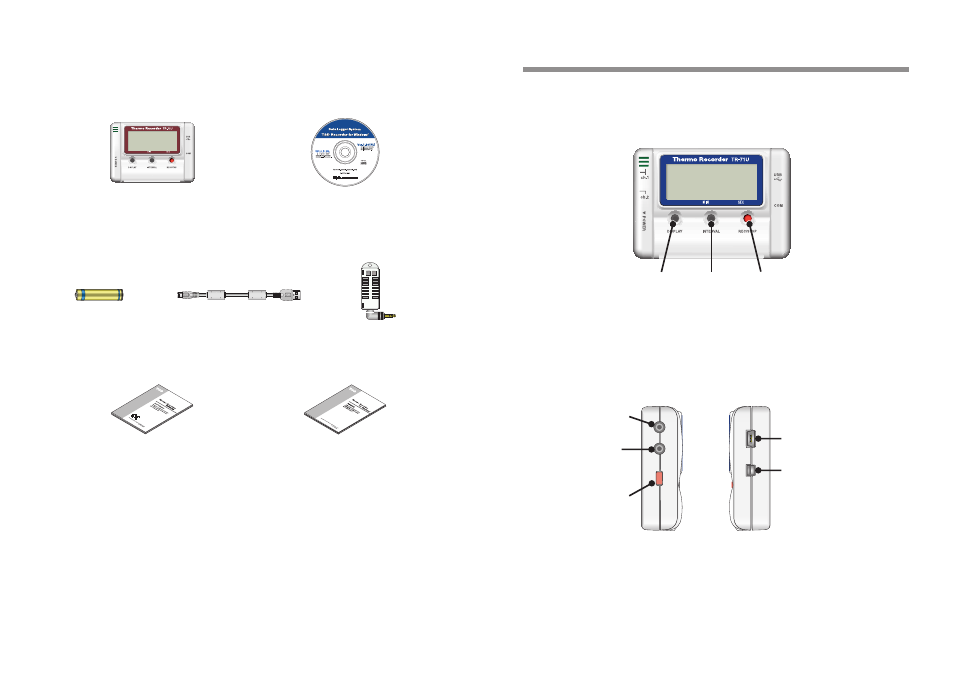

Part Names and Functions
Part Names
[
FRONT]
DISPLAY
button
INTERVAL
button
REC/STOP
button
DISPLAY :Pressing this button will change the LCD display mode.
INTERVAL :Pressing this button will display the currently set recording
interval.
REC/STOP:Pressing this button will start or stop recording.
[
RIGHT SIDE]
[
LEFT SIDE]
Sensor Jack
(
Channel 1)
POWER Switch
Sensor Jack
(
Channel 2)
Only for TR-71U
USB Cable Jack
Serial Cable Jack
※
1
※
1 : Serial Communication Cable is an Optional Accessory.
