6. Connector layout

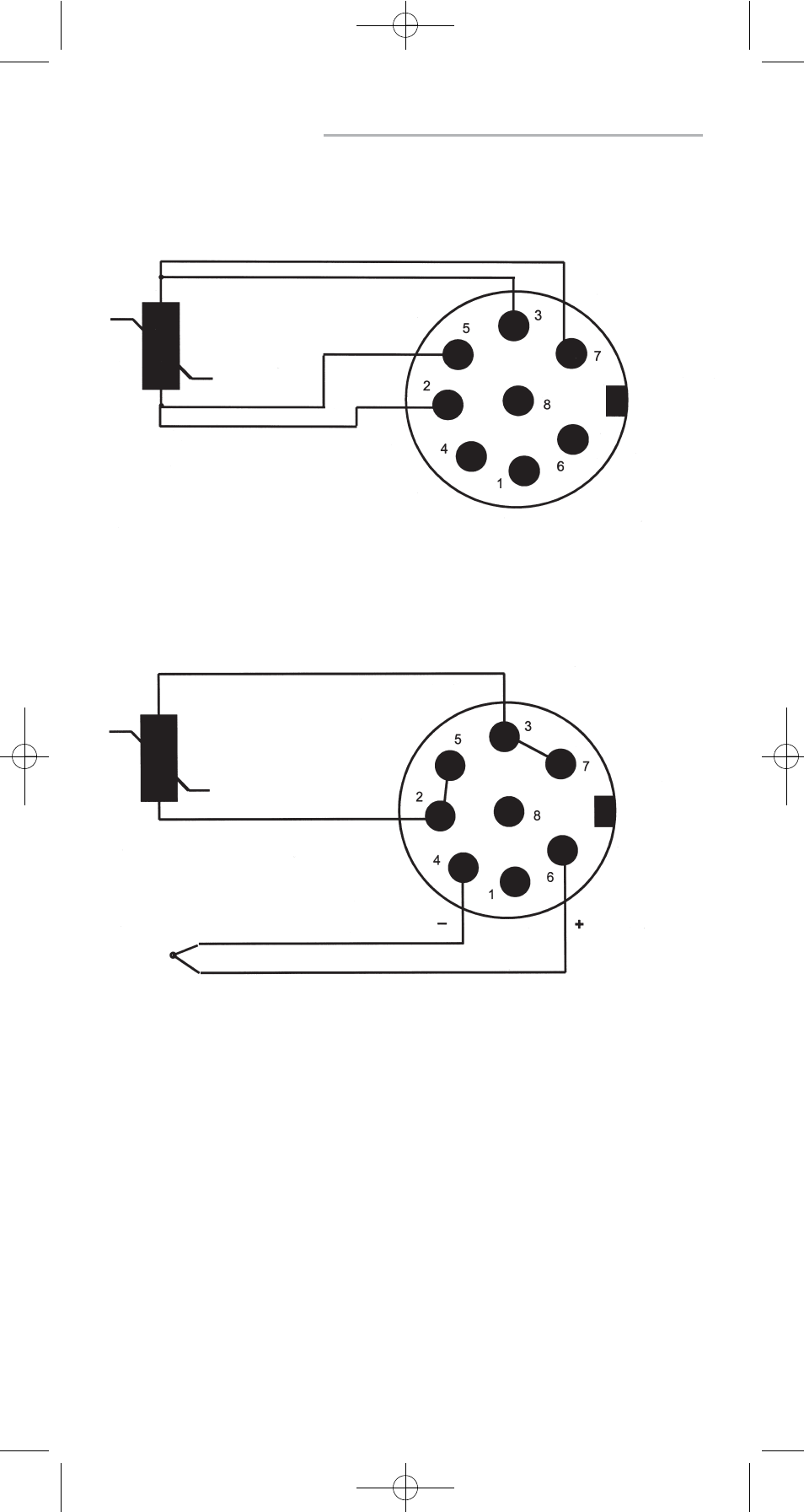

Connector layout Pt100 4-wire (series P700)
Measuring channel 1 /2
Pt100 4-Wire
Soldering
Side
Connector layout thermocouple (series P700)
Measuring channel 1 /2
Pt100 2-Wire
In the plug
NiCr-Ni thermocouple
Soldering
Side
International colours of thermocouples
Thermocouple DIN 43 722 DIN 43 710 ANSI MC 96.1
Type R orange white green
Pt13Rh-Pt + orange – white + red - white + black - red
Type S orange white green
Pt10Rh-Pt + orange – white + red - white + black - red
Type J black black
Fe-CuNi + black - white + white - red
Type T brown blue
Cu-CuNi + brown - white + blue - red
Type K green ....green yellow
NiCr-Ni + green - white + red - green + yellow - red
Type N rosa
NiCrSi-NiSi + pink - white
Type L brown
Fe-CuNi + red - blue
23
