Fieldpilot – TeeJet FieldPilot Install John Deere 6x10-6x20 User Manual
Page 20
www.teejet.com
19
FieldPilot
®
11. RECOMMENDED ELECTRONICS INSTALLATION
The Steering Control Module (SCM) should be mounted securely to the floor of the cab. The control console
can be mounted to the operator’s preference. The GPS antenna should be mounted as far forward as
possible on top of the cab on a metal surface of at least 4” square.

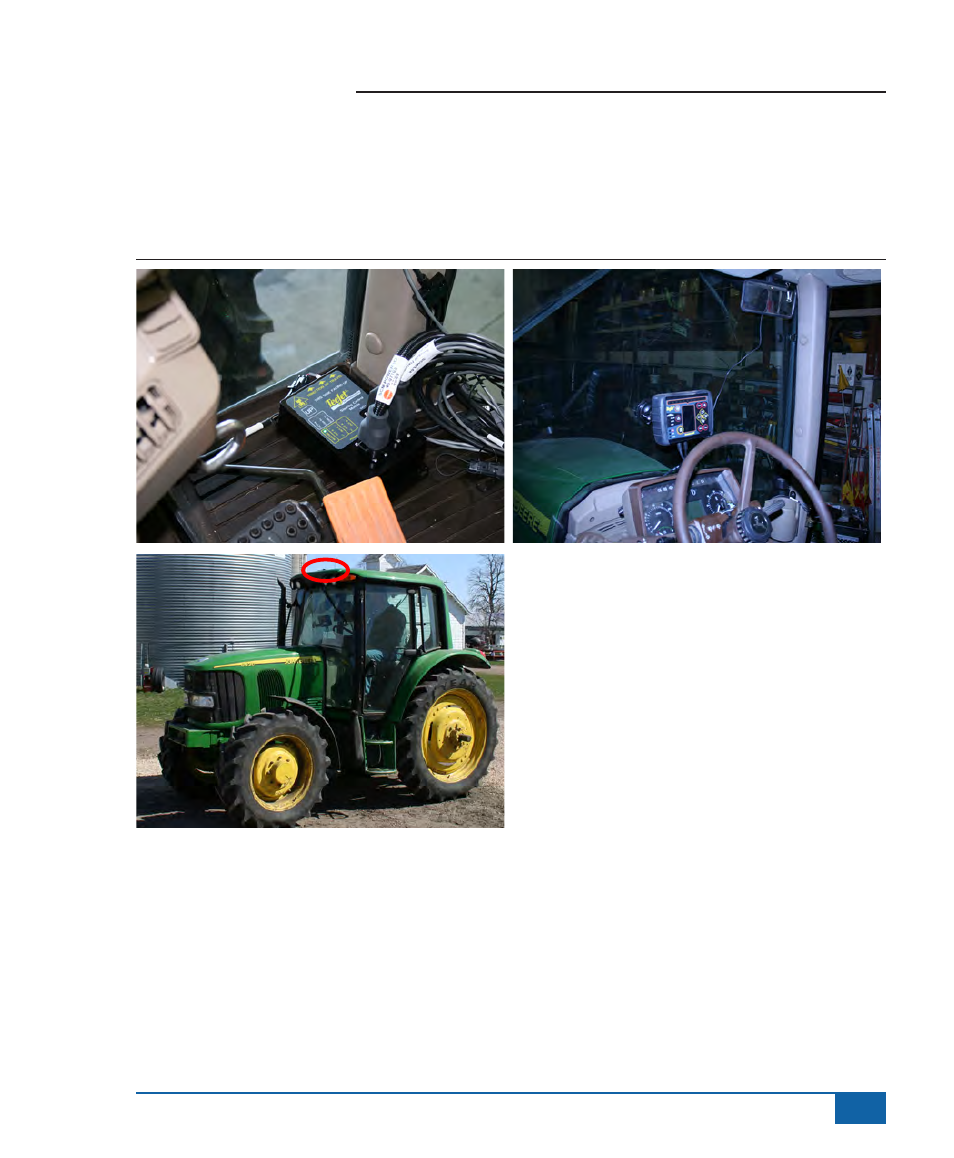

Figure 1-11: Figure 1-13: Recommended Electronics Installation
SCM
GPS
