Fieldpilot, Steer hoses, Om m – TeeJet FieldPilot Install John Deere 6x10-6x20 User Manual
Page 17
www.teejet.com
16
FieldPilot
®
7. INSTALL STEER HOSES AND ADAPTERS
Just rearward from the FieldPilot valve machine steering hoses connect to steering lines. Disconnect the
hoses (label them first) from the lines and install run tees
(O)
. Then reconnect the original hoses to the run
of the tees
(O)
. Then install hoses
(M)
from the branch of the tees to the A and B ports of the FieldPilot
valve.

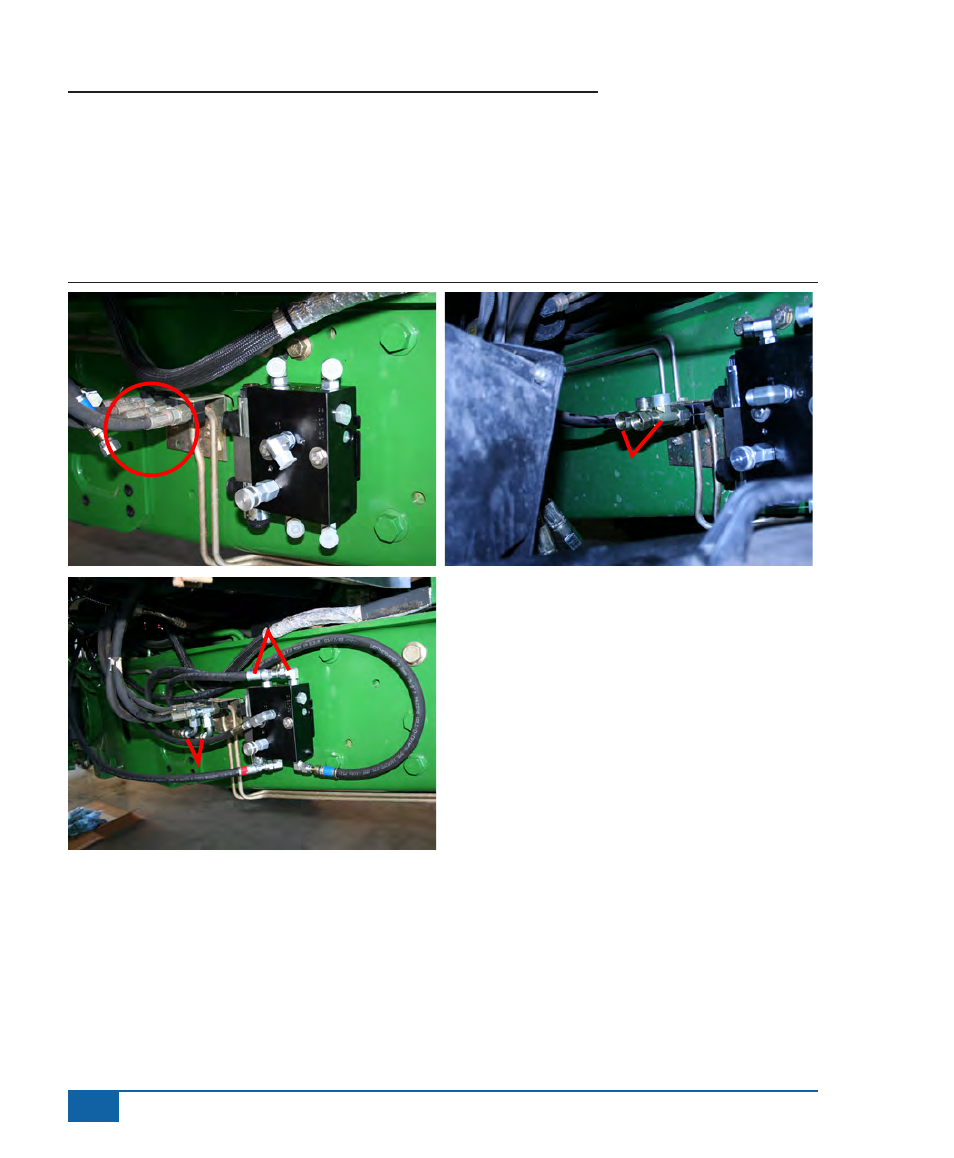

Figure 1-7: Install Steer Hoses and Adapters
Steer
Hoses
O
M
M
