FieldPilot ®
4. INSTALL LOAD SENSE HOSE AND ADAPTER
Locate the Power Beyond block on the rear of the machine and then locate the smaller plug on the bottom
of this block. This is the LS port. Remove the plug and install adapter (R) . Then install and route hose (N)
from adapter (R) to the LS port on the FieldPilot valve.

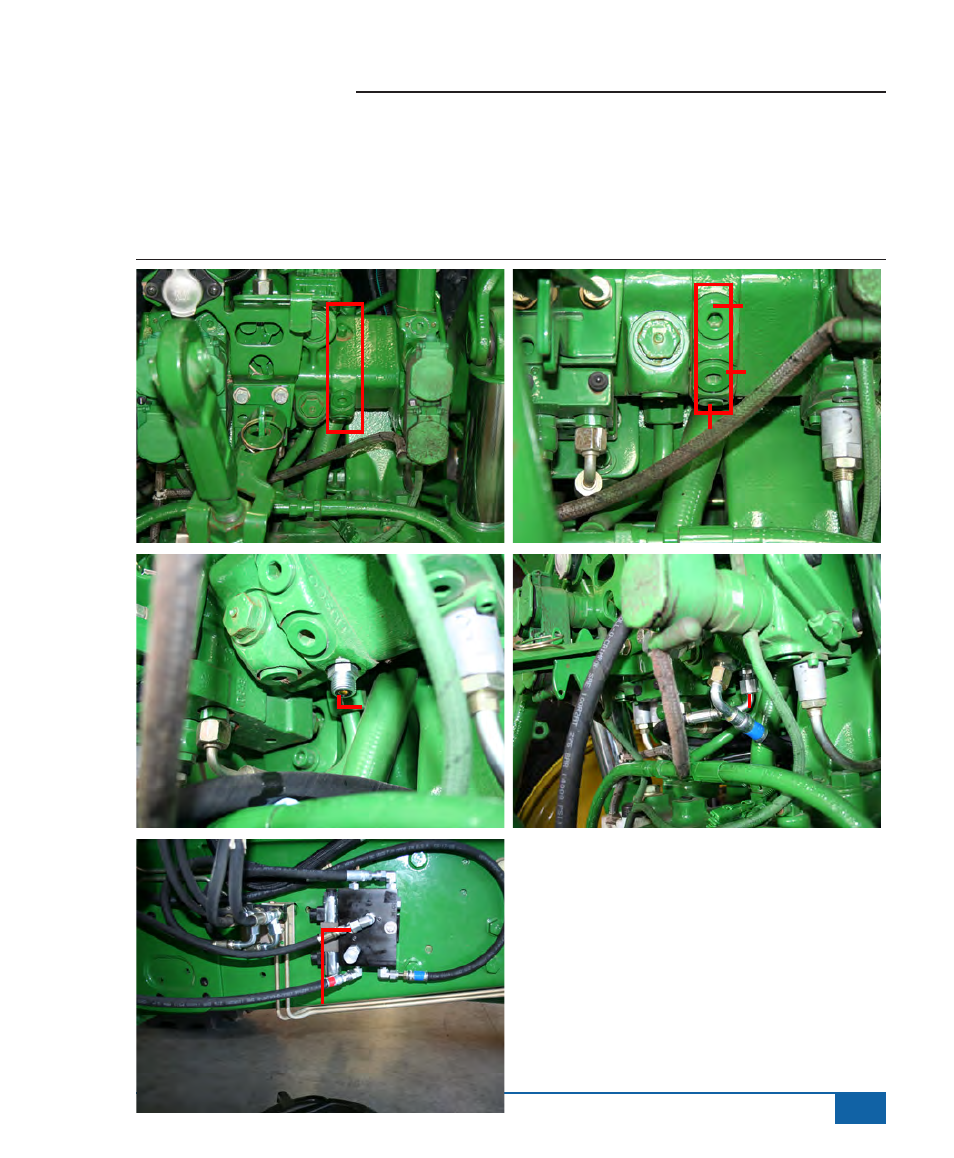

Figure 1-4: Install Load Sense Hose and Adapter
Power
Beyond
Block
Pressure
Tank
LS
R
N
N
