FieldPilot
®
8. INSTALL STEERING DISENGAGE SENSOR
The steering disengage kit
(U)
is used to automatically disengage FieldPilot when the steering wheel is
turned. The magnets mount on the steering shaft or other rotating part of the steering wheel and the sensor
mounts so that there is a 1/8” clearance between the sensor and magnet.

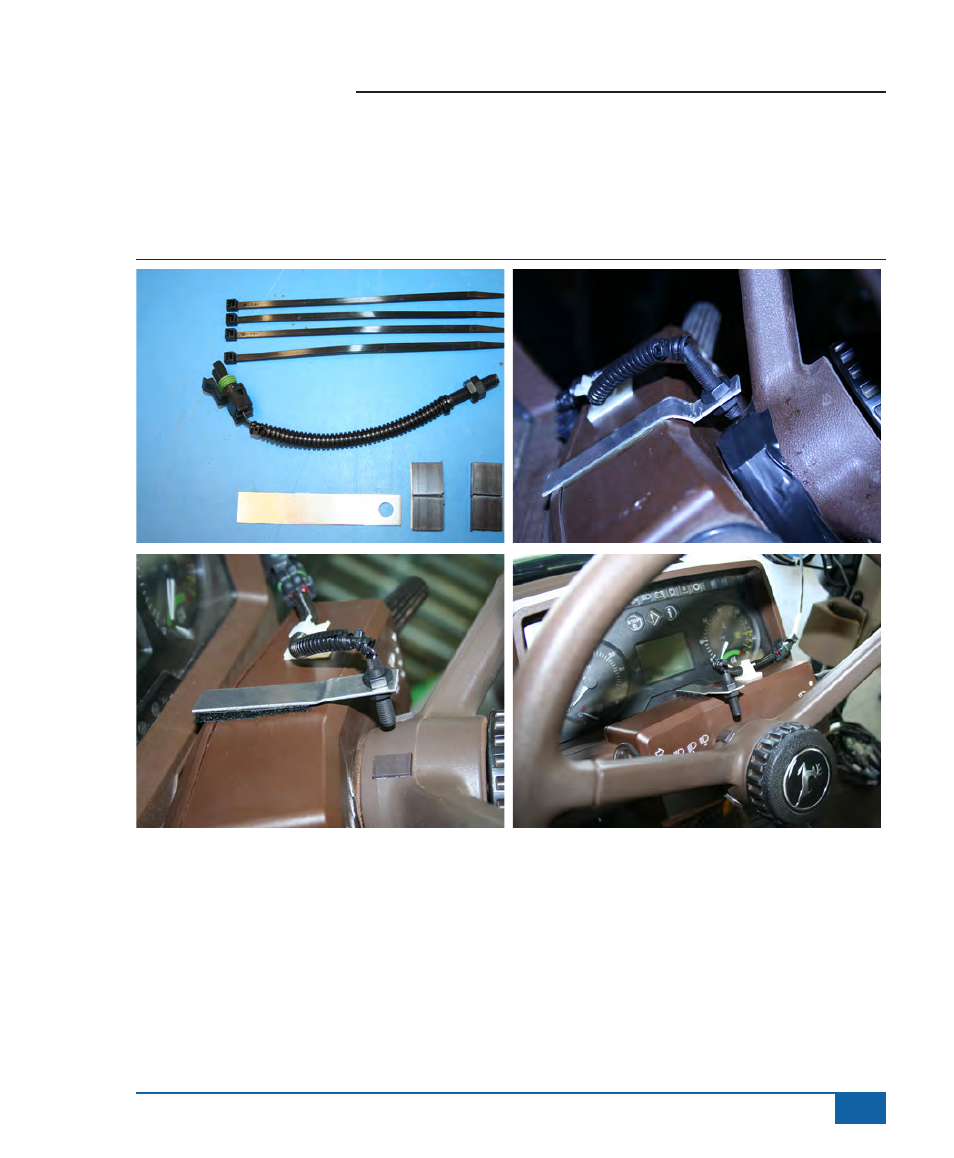

Figure 1-8: Install Steering Disengage Sensor
U
