9. INSTALL STEERING ENGAGE/DISENGAGE SWITCH
Connect item
(A)
to the connector on the SCM harness labeled Remote Engage/Disengage. Install the
push button switch in a location that is easily accessible during operation of the machine. Optional foot switch
32-04020 can be used in place of switch
(A)
if desired.

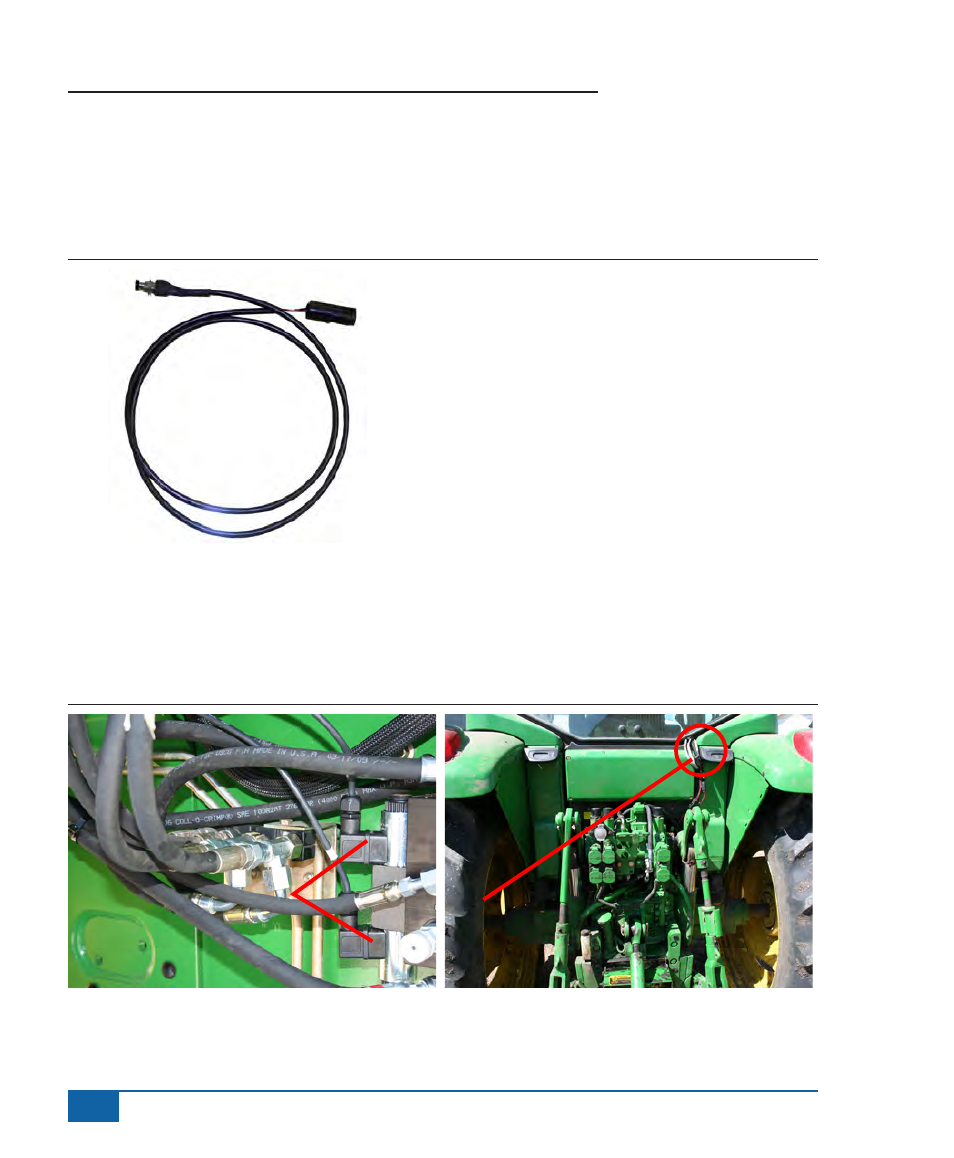

Figure 1-9: Install Steering Engage/Disengage Switch
10. INSTALL VALVE CONTROL CABLE
The valve control cable
(F)
will connect to the solenoids on the FieldPilot valve and will route into the rear of
the cab.
Figure 1-10: Installation Valve Control Cable
F
F
