2. INSTALL FIELDPILOT VALVE MOUNTING BRACKET

Locate the hole with the threaded insert located on the right side of the machine below the front of the cab. On some

models this threaded insert is used to mount the tool box bracket. Use either the existing bolt or the included hardware

(G and I)

to mount the bracket

(K)

as shown.

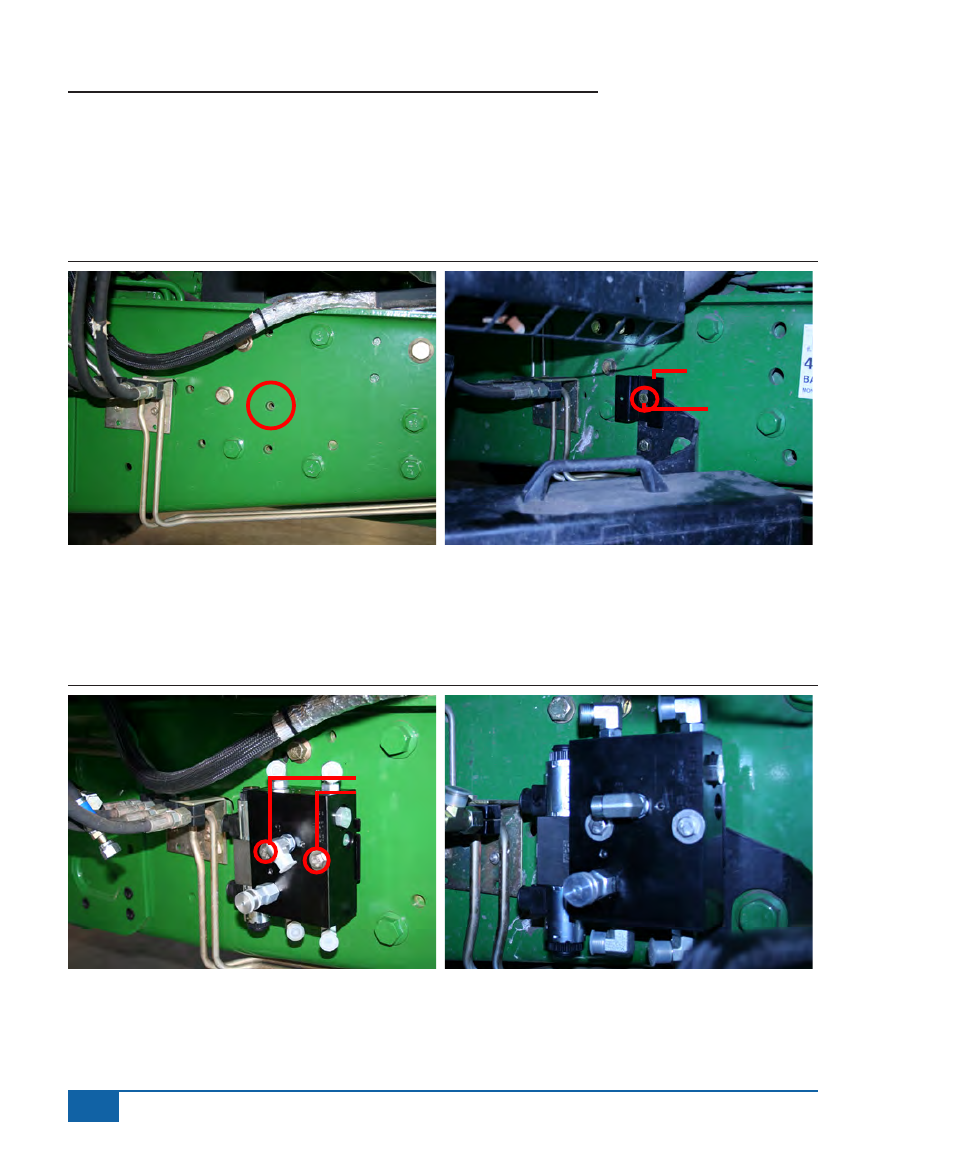

Figure 1-2: Install FieldPilot Valve Mounting Bracket

K

G,I

3. INSTALL FIELDPILOT VALVE

Using hardware

(B, H, and J)

to mount the FieldPilot valve

(C)

to the bracket

(K)

.

Figure 1-3: Install FieldPilot Valve

B,H,J
