FieldPilot ®
6. INSTALL PRESSURE HOSE AND ADAPTERS
Locate the plug above the Tank plug from step 5. Remove the plug and install adapter (S) , and then install
adapter (Q) onto adapter (S) . Then install and route hose (L) from adapter (Q) to the P port on the
FieldPilot valve.

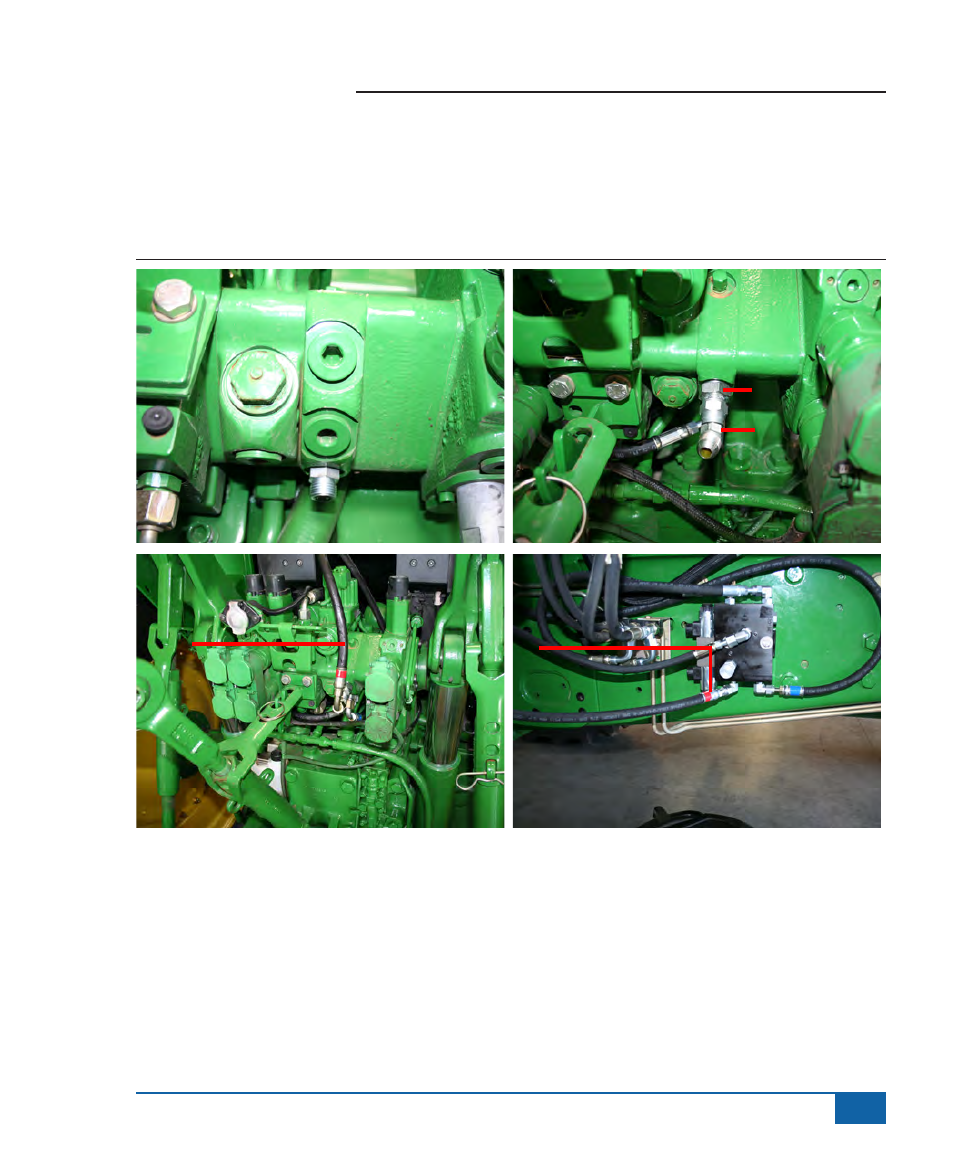

Figure 1-6: Install Pressure Hose and Adapters
Pressure
S
Q
L L
