12. install FieldPilot steering hoses
The FieldPilot steering hoses will route from the FieldPilot valve to the branch of the run tees (V) installed
in Step 11. Connect hose (T) to the branch of the run tee on the left port of the steering cylinder and route
it to the B port of the FieldPilot valve. Connect hose (T) to the branch of the run tee on the right port of the
steering cylinder and route it to the A port of the FieldPilot valve.

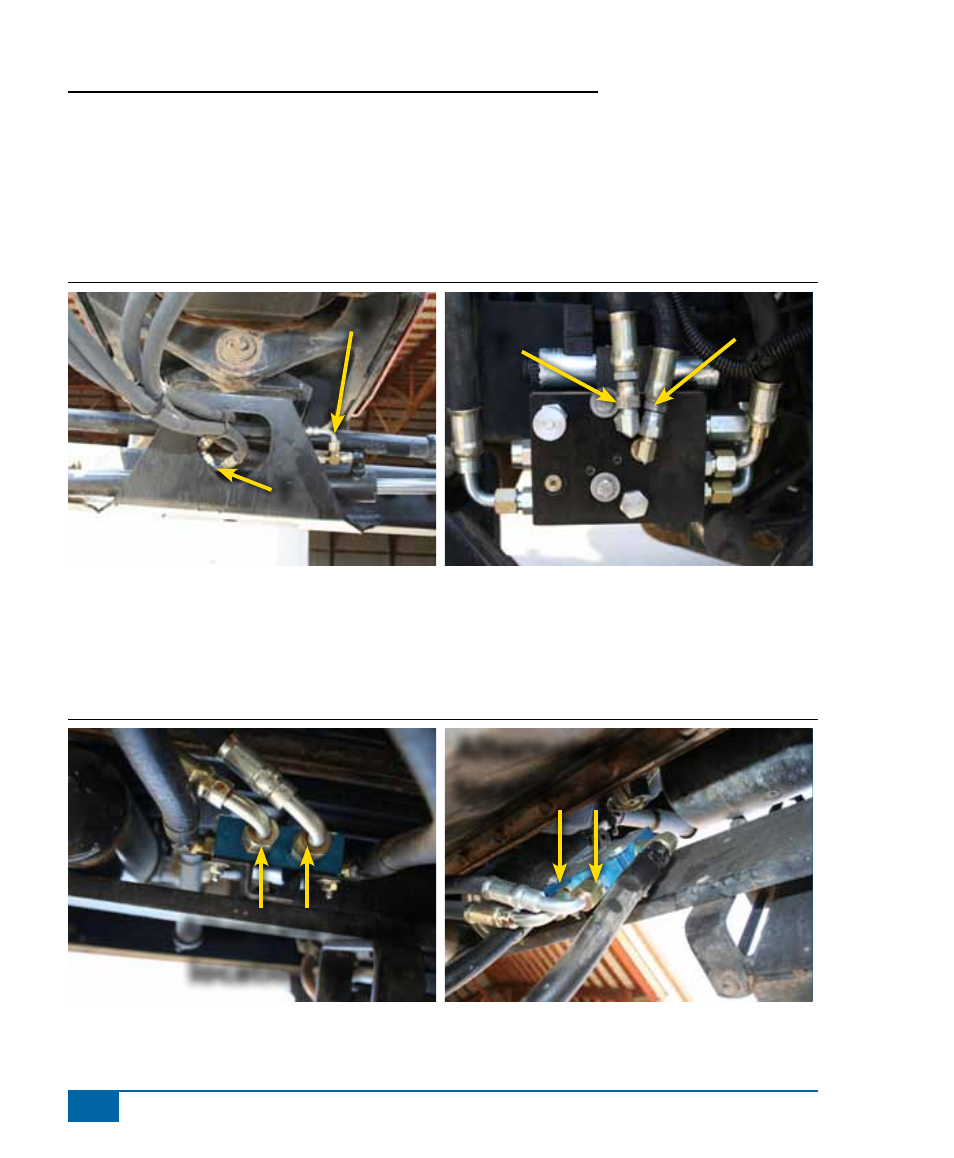

Figure 1-13: Install FieldPIlot Steering Hoses
12a. oPtional install FieldPilot steering hoses
As an option to installing the run tees (V) at the steering cylinder, they may be installed on the C1 and C2
ports of the Counterbalance valve. The FieldPilot steering hoses (T) would then route from FieldPilot valve
to the run tees (V) at the Counterbalance valve.
Figure 1-14: Optional Install FieldPIlot Steering Hoses
t
t
t
t
Alternate install
location for (V)
Alternate install
location for (V)
