10
FieldPilot ®
2. install the FieldPilot ValVe Bracket
On the left side of the machine on the frame, locate the bolt as shown. Remove this bolt and install bracket
(O) using the original bolt.

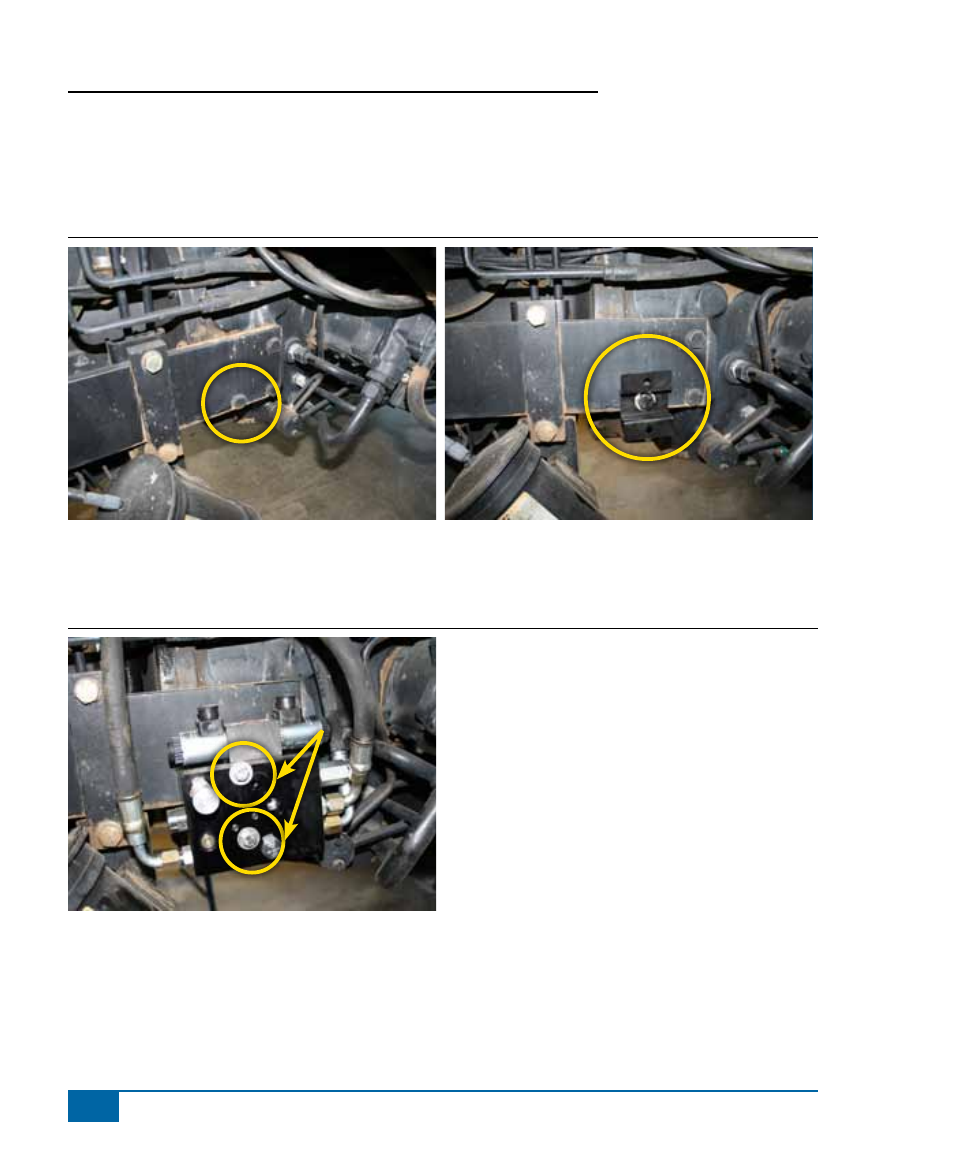

Figure 1-3: Install Mounting Bracket for FieldPilot Valve
3. Mount the FieldPilot ValVe
Using parts (C, L, & N) , mount the FieldPilot valve to the bracket (O) .
Figure 1-4: Mount the FieldPilot Valve
C, l, N
