15
FieldPilot ®
98-05107 R2
9. install Pressure, tank and load sense hose
Install the hydraulic hose (Q) between the LS port of the FieldPilot valve and the open end of the load sense
shuttle assembly installed in Steps 8. Use a heavy tie strap (included) to secure the load shuttle assembly to
the tractor framework as illustrated. Install the pressure (N) and tank (M) hydraulic hoses between the P and T
ports of the FieldPilot valve and the corresponding run-tees installed in Step 6. Double check to ensure that the
connections are not reversed. Ensure all hoses are properly routed and free from entanglement. Use heavy tie
straps (included) as needed. Securely tighten all hydraulic hose fittings and adapters.

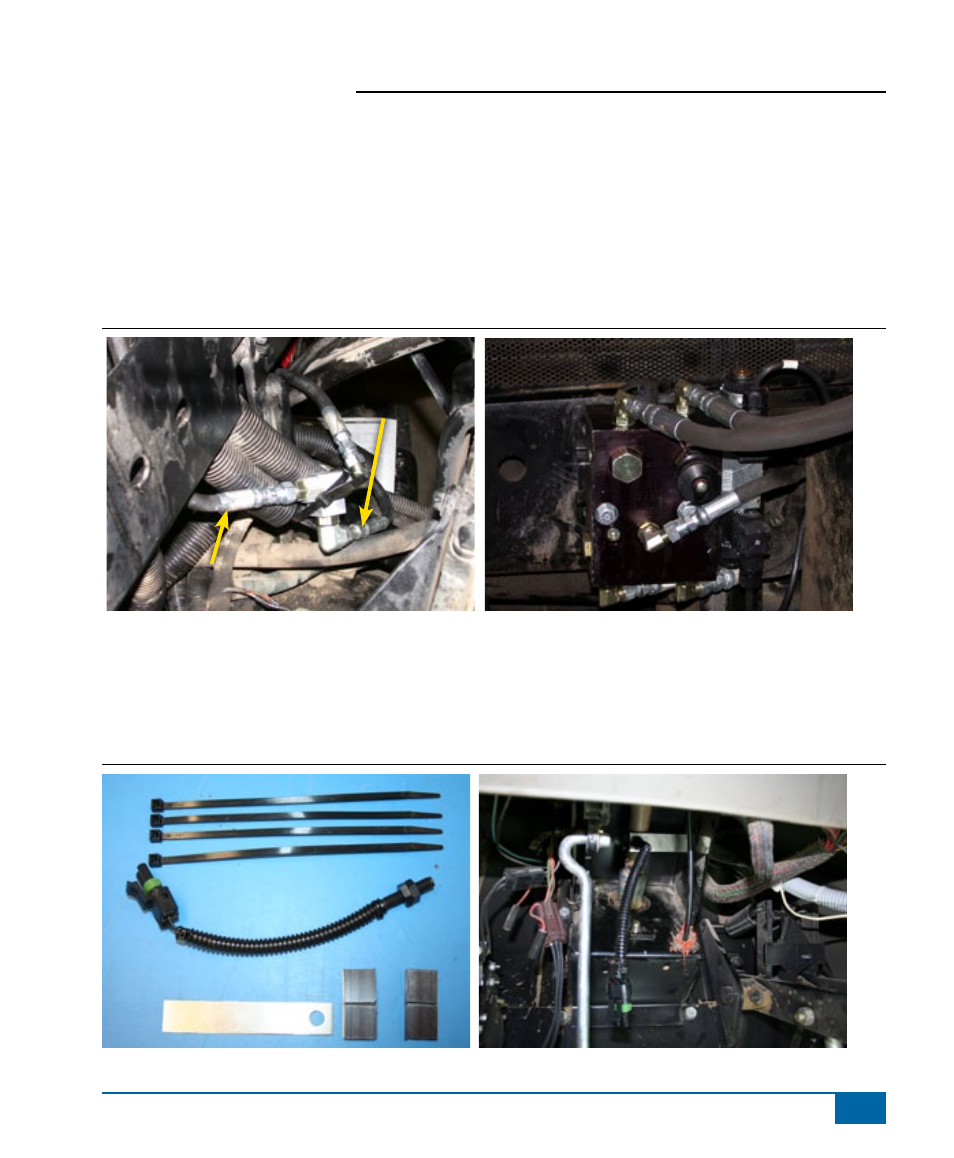

Figure 1-14: Install Pressure, Tank and Load Sense Hose
Hose that was disconnected
from steering orbital
Q
M
n
Q
10. install steering disengage sWitch
The steering disengage kit (T) is used to automatically disengage FieldPilot when the steering wheel is turned.
The magnets mount on the steering shaft or other rotating part of the steering wheel and the sensor mounts so
that there is a 1/8” clearance between the sensor and magnet.
Figure 1-15: Installing the Steering Disengage Switch
