10
www.teejet.com
FieldPilot ®
3. install FieldPilot ValVe
Install the FieldPilot valve as prepared in Step 1 to the mounting bracket using the mounting hardware in Group
(E) . Tighten the mounting bolts securely.

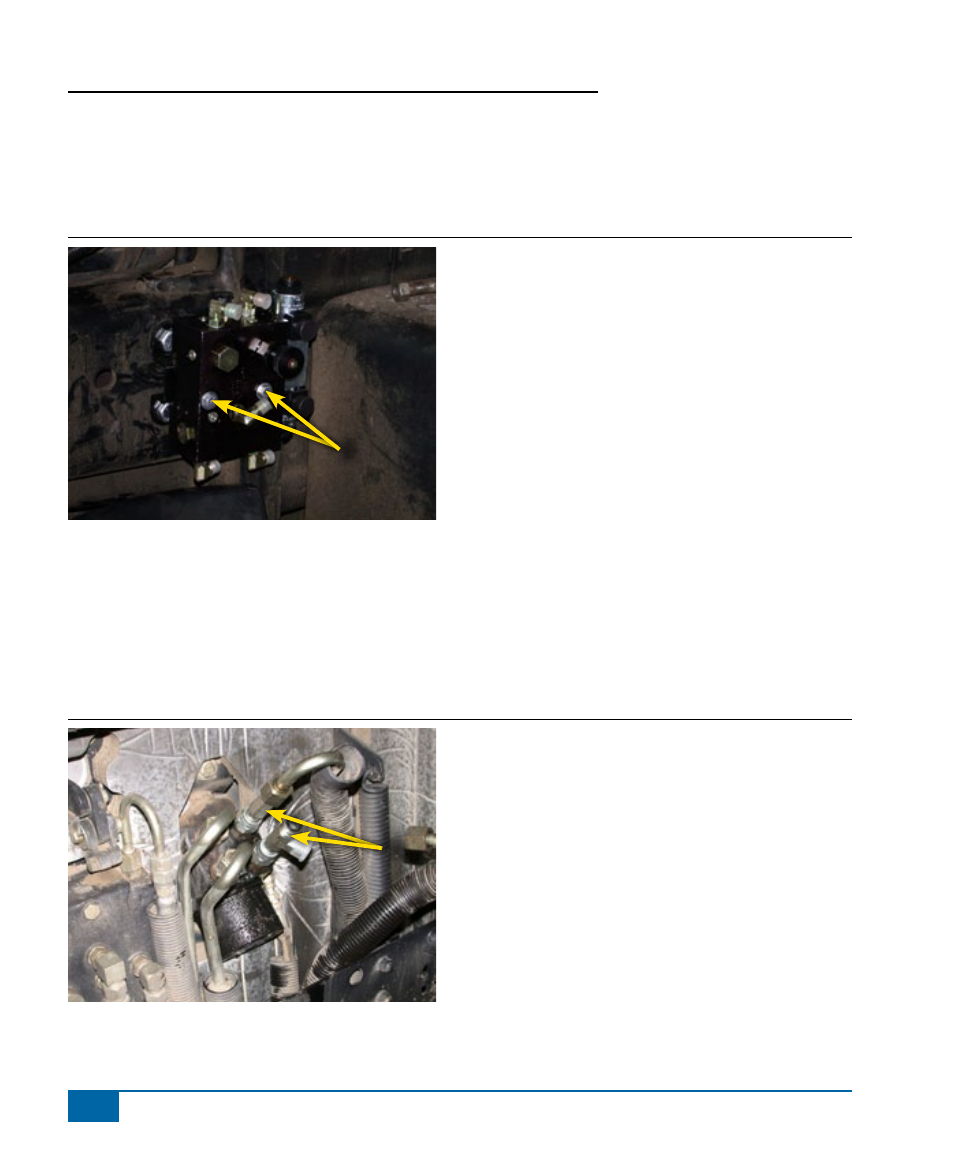

Figure 1-5: Installing the FieldPilot Valve
4. install steering outPut Fittings
Locate the tractor steering orbital in front of the cab just below the windshield. The two lines coming out of the left
side of the steering orbital are the steering output lines and are stamped R and L on the casting. Remove the steel
line fittings from the steering orbital and install the run-tee fittings (F) as illustrated. Reattach the steel line fittings.
Leave the run-tee fittings (F) loose to allow for alignment when attaching hoses. Plastic caps placed on the open
ends of the fittings will prevent excessive leakage prior to hose installation.
Figure 1-6: Installing the Steering Output Fittings
