9
FieldPilot ®
98-05107 R2
1. PrePare the FieldPilot ValVe
Make sure the FieldPilot valve is clean and dust free. Remove the plastic plugs and install adapters (B) in the P,
T, LS, A and B ports and orient as shown.

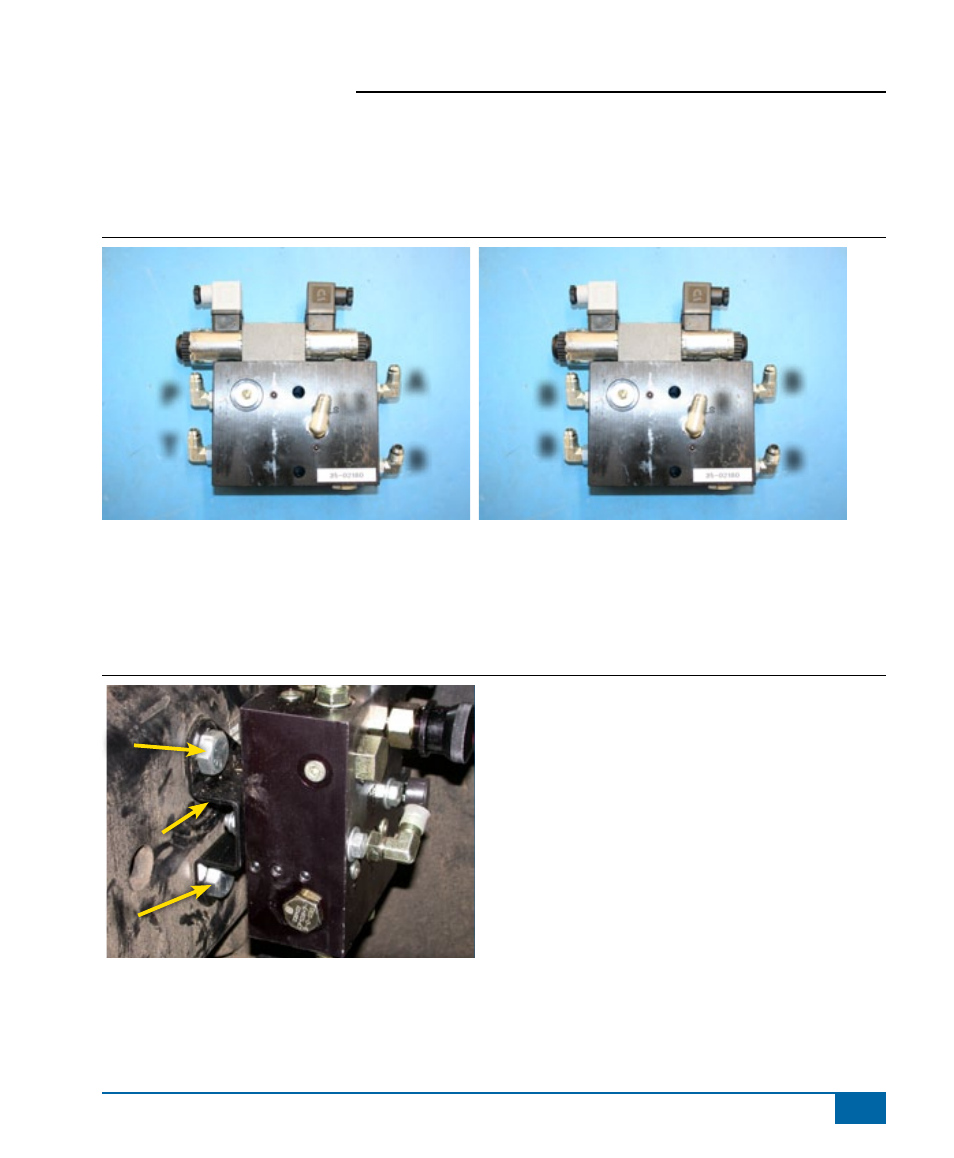

Figure 1-3: Prepare the FieldPilot Valve
p
t
a
B
ls
B
B
B
B
B
2. install Mounting Bracket
Locate the holes in the left side of the tractor frame in front of the cab. If the tractor is equipped with a toolbox in
this location, it must be removed. Install the mounting bracket (C) as illustrated using the mounting hardware (D) .
Tighten mounting bolts securely.
Figure 1-4: Installing the Mounting Bracket
C
d
d
