12
www.teejet.com
FieldPilot ®
7. rePlace steel Pressure line on orBital
Remove the short steel portion of the steering orbital pressure line and replace it with hydraulic hose (O) .

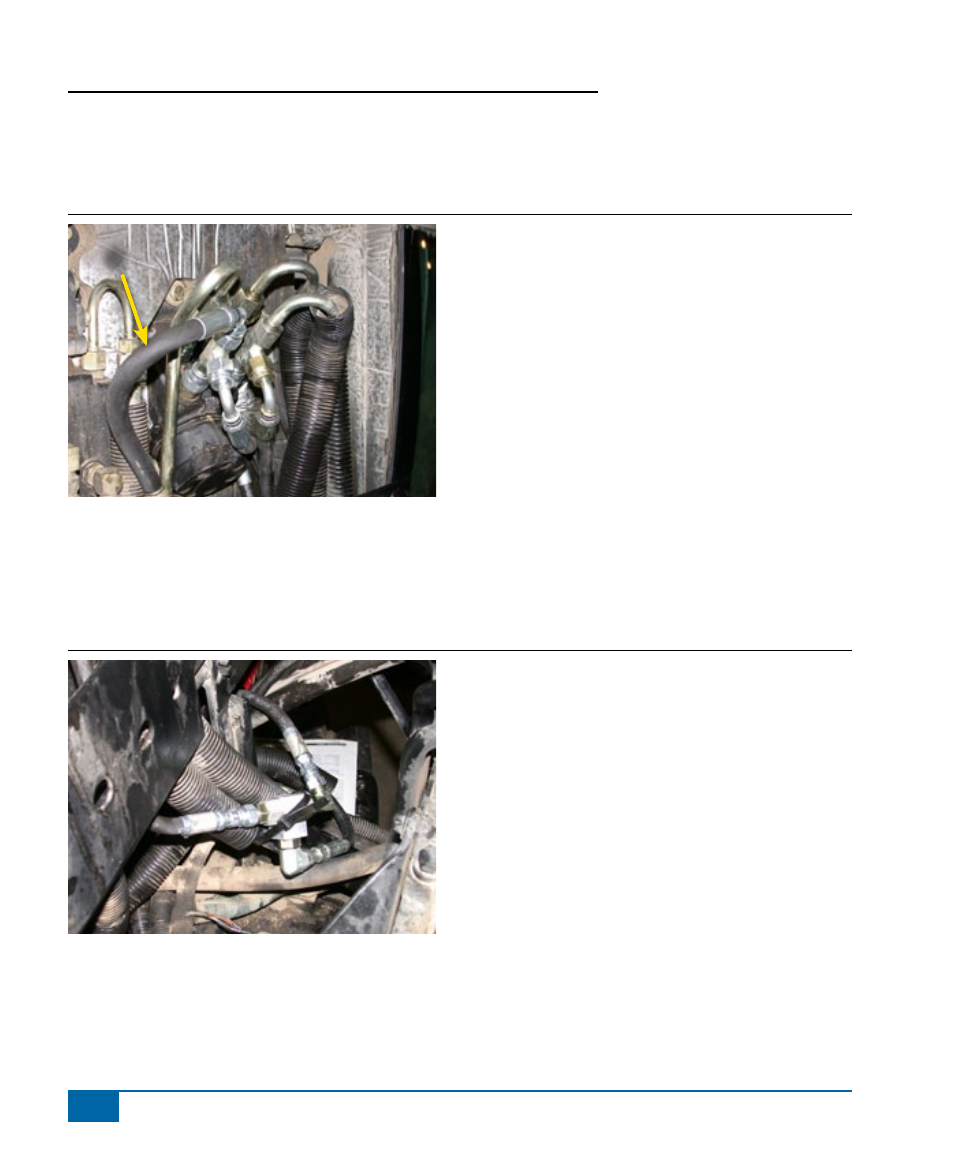

Figure 1-9: Replacing the Steel Pressure Line on Orbital
8. install tractor load sense shuttle/adaPters
The load sense port on the steering orbital will be located on the left side, the front, or the top of the steering
orbital depending on tractor model. If the load sense port is located on the left side refer to Step A. If the load
sense port is located on the front or the top of the steering orbital, refer to Steps B or C, respectively.
Figure 1-10: Installing the Tractor Load Sense Shuttle/Adapters
A. Steering Orbital on the Left Side
Pre-assemble the load sense shuttle (G) with the fittings provided (H) , (I) , and (J) as illustrated. Locate
the tractor load sense hydraulic hose on the left side of the steering orbital as illustrated. Remove the tractor
load sense hose from the steering orbital and connect it to the center elbow fitting (I) of the load sense shuttle
o
