10. install the ValVe control caBle
Route the valve control cable from the FieldPilot valve under the cab. There is an entrance into the cab under
the floor mat on the right hand side.

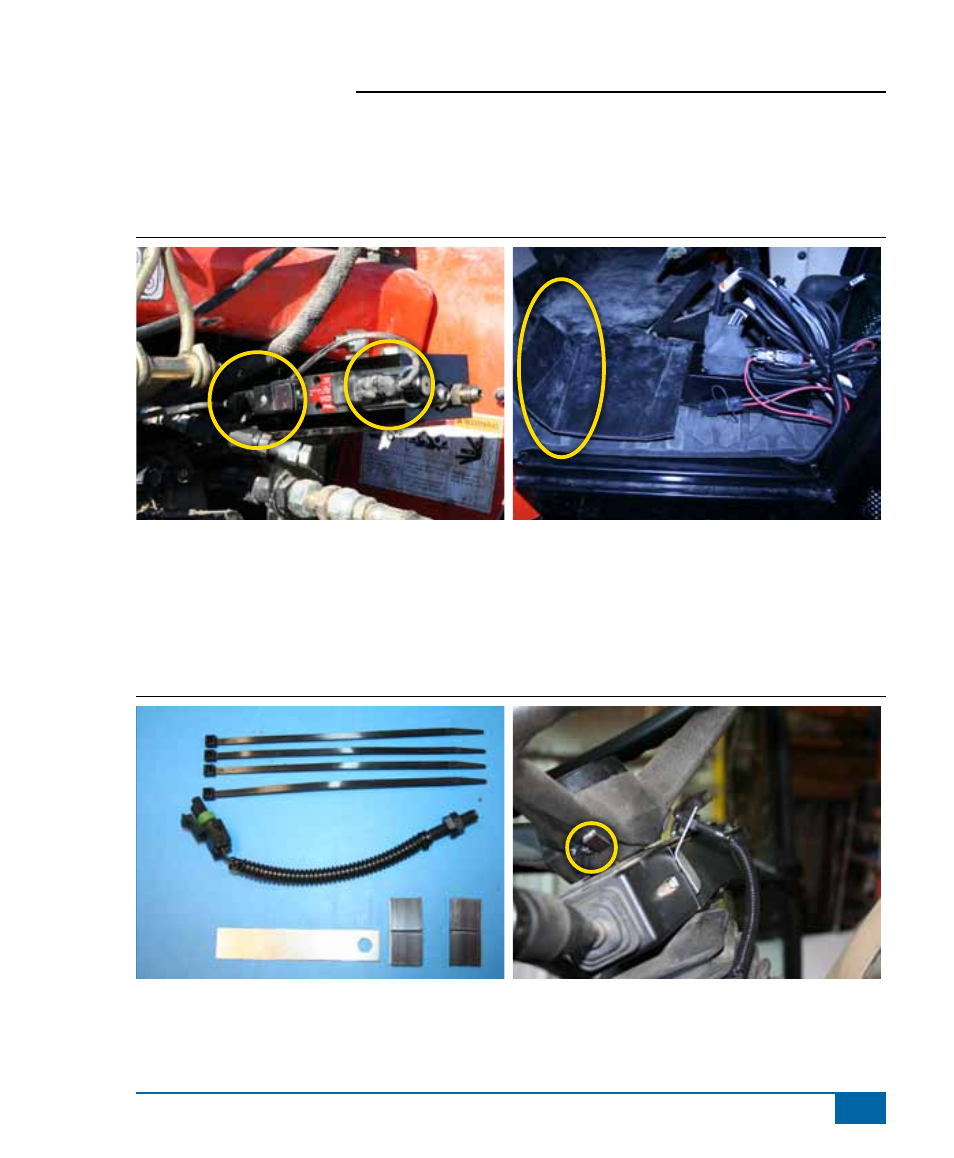

Figure 1-14: Install the Valve Control Cable
11. install steering disengage switch (kit 91-07011)
The steering disengage kit (EE) is used to automatically disengage FieldPilot when the steering wheel is
turned. Bend the bracket as shown and glue the bracket to the plastic housing. Glue magnets to the steering
wheel spokes as shown. The magnets mount on the steering shaft of the steering wheel and the sensor
mounts so that there is a 1/8″ clearance between the sensor and magnet.
Figure 1-15: Install Steering Disengage Switch (Kit 91-07011)
