5. install the steering hoses and adaPters

Locate the steering orbital L and R ports. Disconnect the hoses from those ports (mark them for reinstallation

later). Remove the fittings from the orbital. Install the o-ring

(EE)

onto adapter

(X)

. Install adapters

(X)

in the L and R ports. Install run tees

(P)

to adapters

(X)

. Install adapters

(W)

to the run of the tees

(P)

Reconnect original steering hoses to adapters

(W)

. Route hoses

(M)

from the orbital back to the FieldPilot

Valve. The smaller ends of hoses

(M)

will connect to the A & B ports of the FieldPilot valve.

NOTE: The

(M)

hoses in the pictures indicate a 90° end at the orbital. They will be straight ends, and 90°

adapters

(U)

are included and can be used if necessary to connect hoses

(M)

at the orbital.

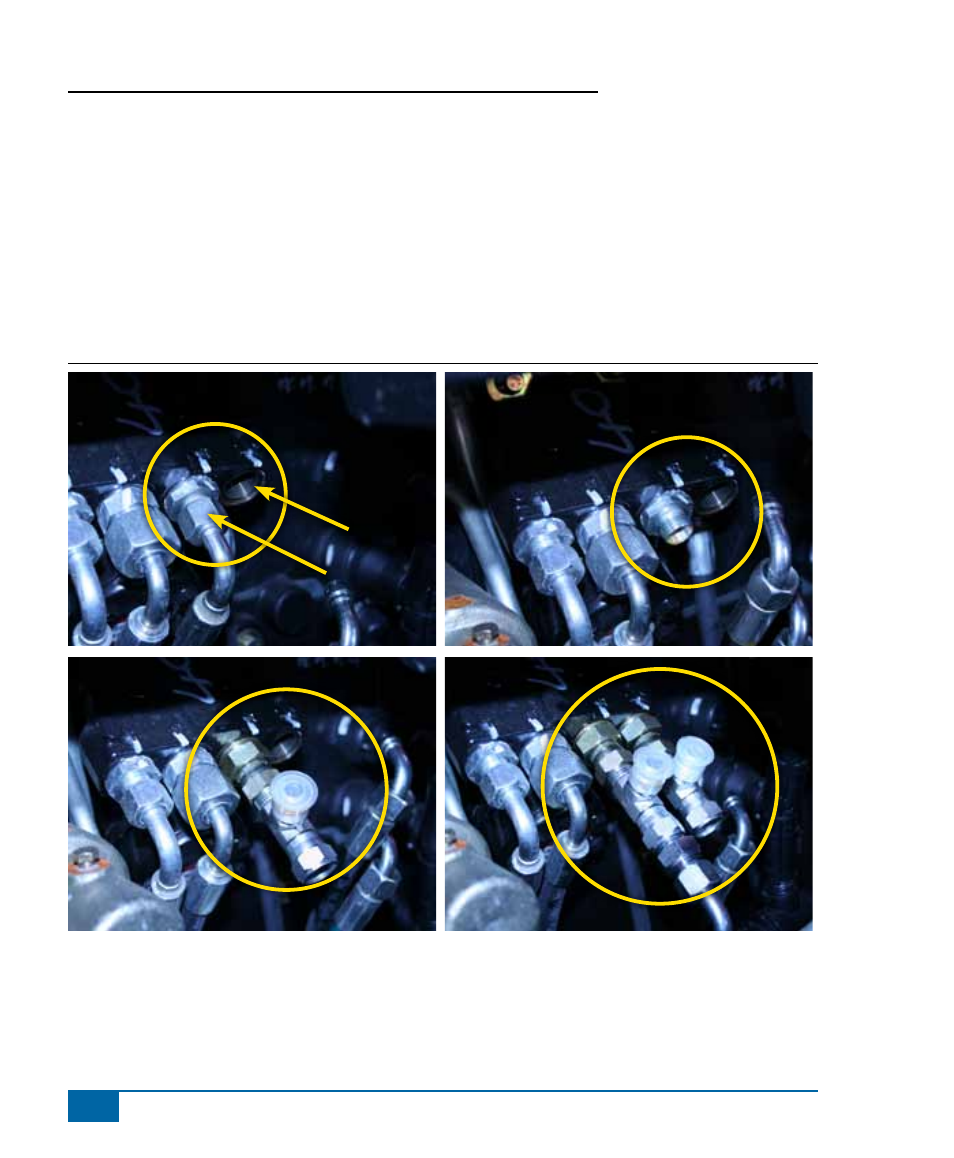

Figure 1-6: Install the Steering Hoses and Adapters
