FieldPilot ®
7. install the tank hose and adaPters
FieldPilot is the Only Function Using the Power Beyond Valve.
Install hose (N) from adapter (Y) to the T port on the FieldPilot Valve.

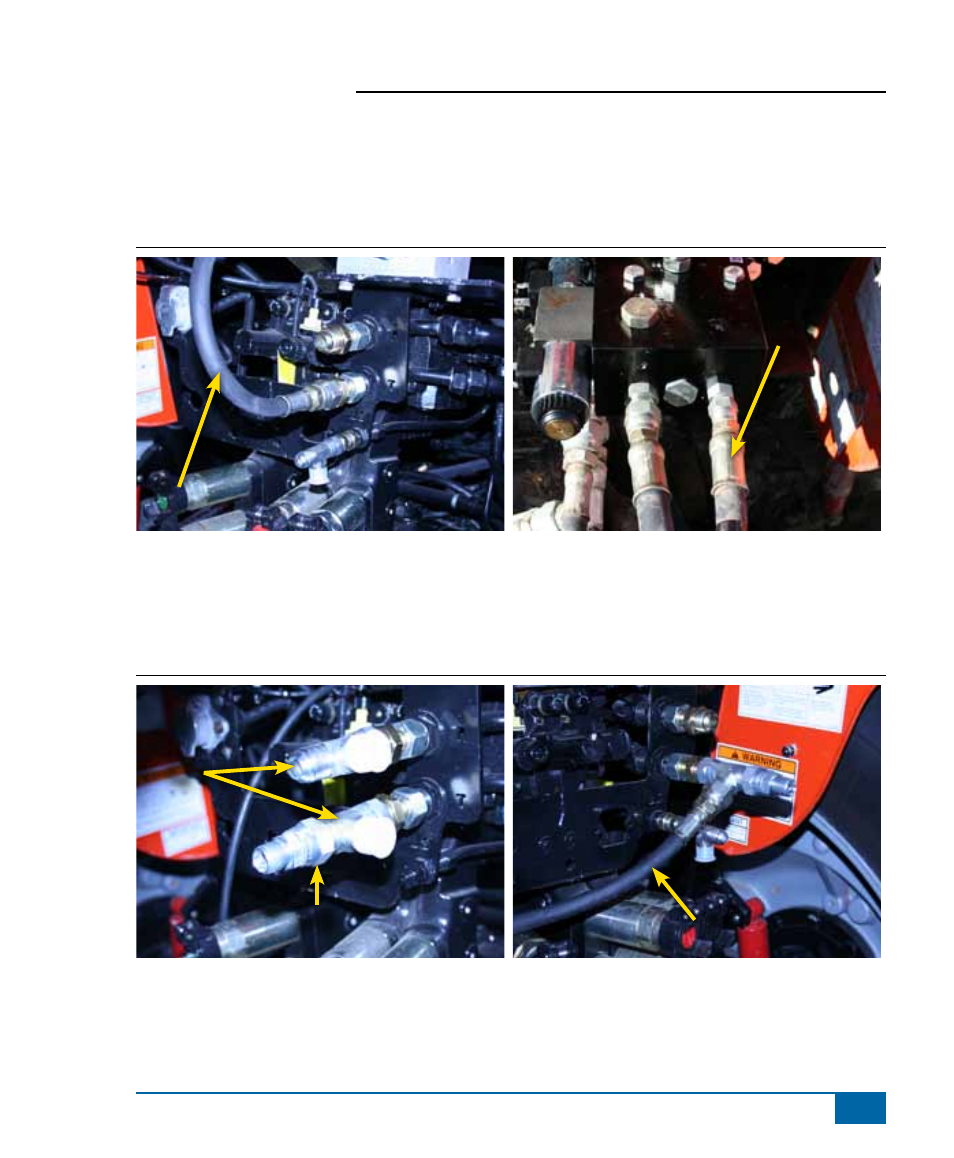

Figure 1-8: Install the Tank Hose
N
N
Other Functions and FieldPilot are Using Power Beyond
Install run tee (Q) onto adapter (Y) . Install hose (N) from the branch of the run tee (Q) to the T port on the
FieldPilot Valve. Use adapter (BB) on the run of the tee to install existing Power Beyond Function. Adapter
(BB) converts the #12MJIC to 1/2” NPT threads.
Figure 1-9: Install the Tank Hose and Adapters
BB
Q
N
NOTE: Images continued on next page.
