Page 19
www.teejet.com
17
FieldPilot
®
Other Functions and FieldPilot are Using Power Beyond
Install run tee
(Q)
onto adapter
(Y)
. Install hose
(N)
from the branch of the run tee
(Q)
to the P port on the
FieldPilot Valve. Use Adapter
(BB)
on the run of the tee to install existing Power Beyond Function. Adapter
(BB)
converts the #12MJIC to 1/2” NPT threads.

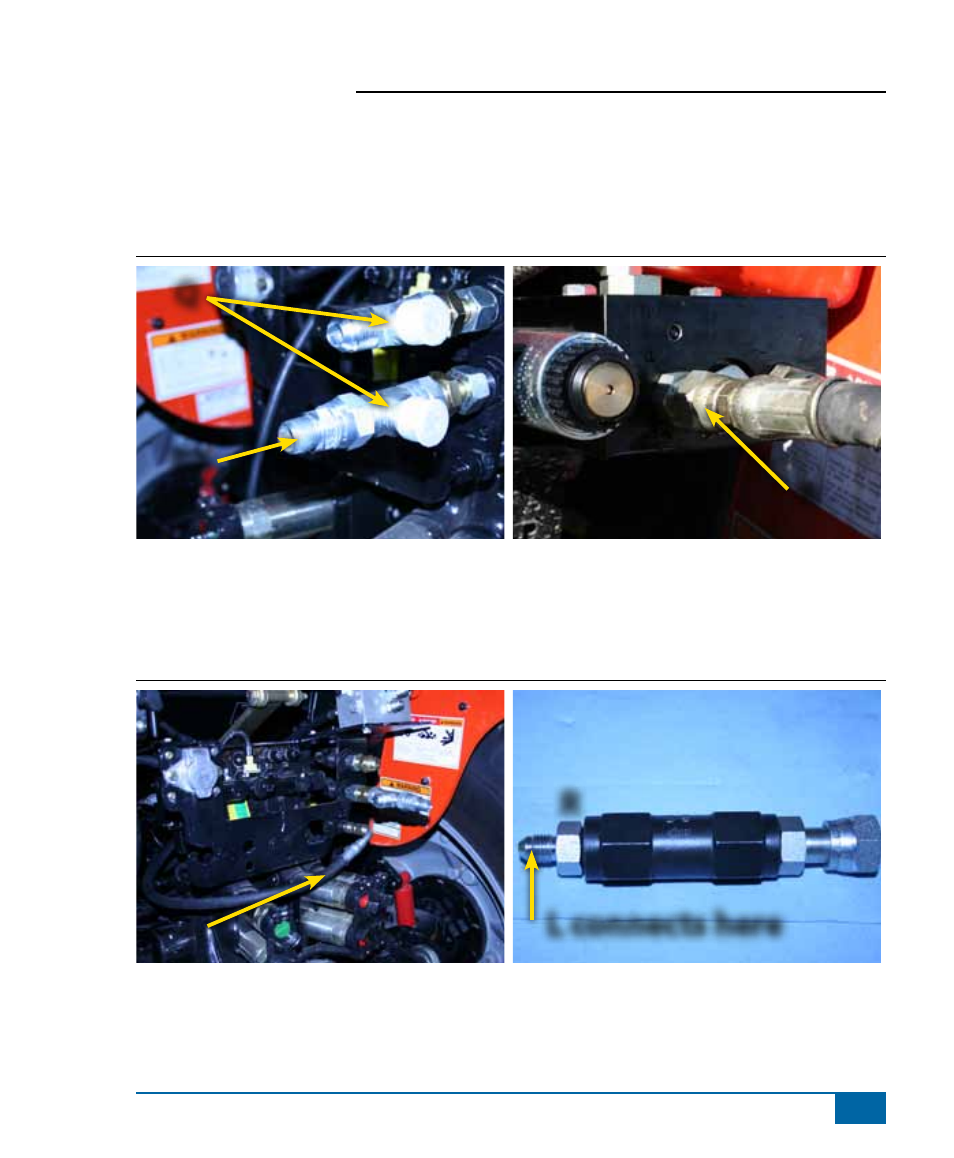

Figure 1-11: Install the Pressure Hose and Adapters
Q
BB
N
9. install the ls hose and adaPters
FieldPilot is the Only Function Using the Power Beyond Valve.
Install hose
(L)
from adapter
(BB)
to the adapter
(R)
on the check valve
(D)
.
Figure 1-12: Install the LS Hose
l
r
l connects here
