8
FieldPilot ®
iNstAllAtioN
If there are questions concerning the installation of the FieldPilot system on this vehicle, or due to
the changes in component specifications the parts supplied in the kit are not exactly as presented
in this document, please contact your dealer or TeeJet Customer service representative for
clarification before installation. TeeJet Technologies is not responsible for misuse or incorrect installation of
the system.
NOTE: BE VERY CAREFUL TO ABSOLUTELY SECURE ALL CABLES AND HOSES SO THAT THEY
DON’T INTERFERE WITH THE MANY MOVING PARTS OF THE MACHINE!
The RoGator 1254 priority valve is mounted on the left main frame support just to the front of the cab. The
FieldPilot valve P port will get oil from the EF line of the priority valve. The remaining lines will tee at the
orbital.
1. PrePare the FieldPilot ValVe
Install adapters (N) in the A & B ports. Install adapters (Q) in the EF & P ports, and install adapter (P) in
the T port of the FieldPilot valve.

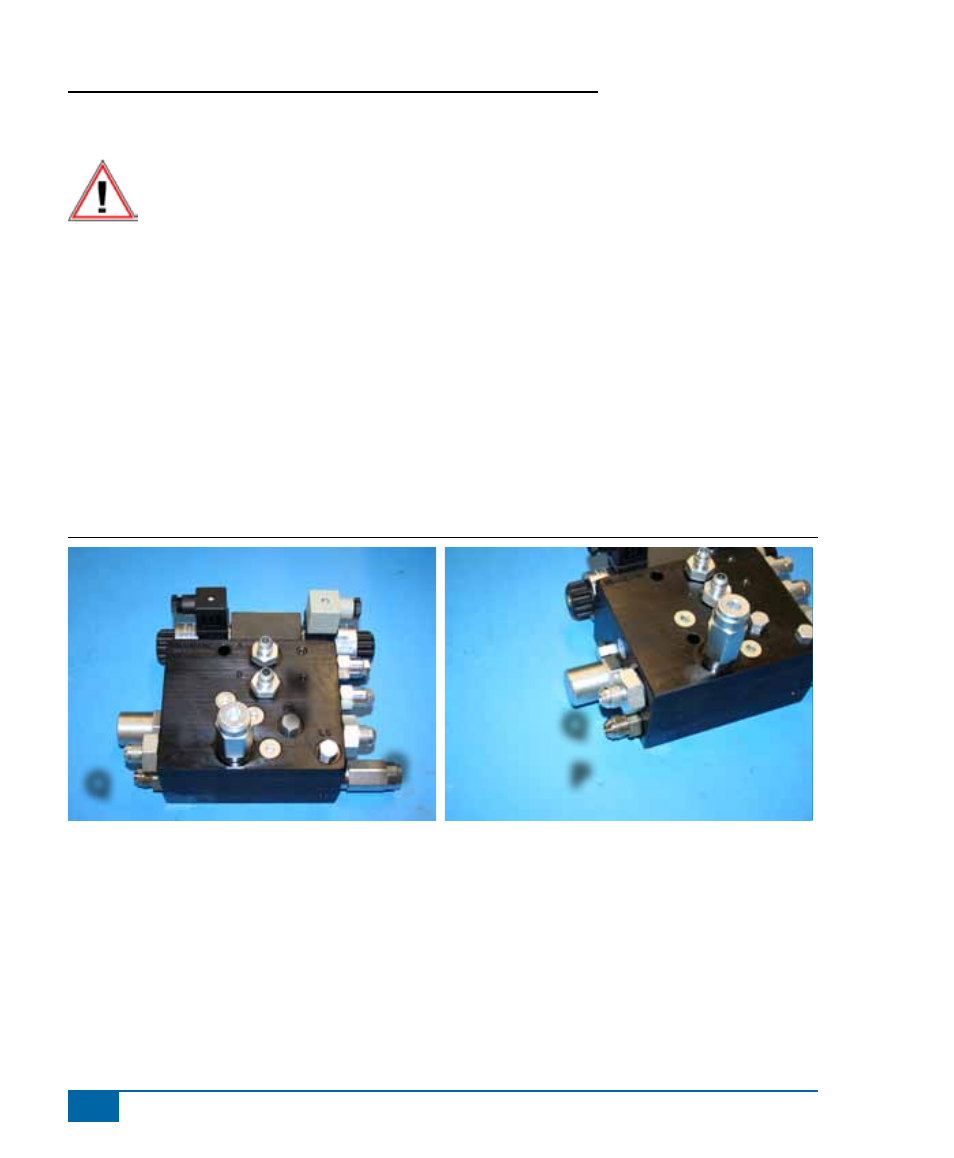

Figure 1-2: Prepare the FieldPilot Valve
N
Q
Q
Q
p
N
